    Overview

    SEGGER has a wide variety of standard and proprietary connectors for its Flasher, J-Link, and J-Trace products. Various targets can be connected to these adapters. The principal types of adapters are active adapters (including measurement, signal smoothing, and power supply functionalities), passive adapters, and needle adapters.

    Active Adapters

    5V Target Supply Adapter

    The 5V Target Supply Adapter provides a supply voltage of 5 V to the target board. It has a standard 20-pin 0.1" socket towards the J-Link or Flasher and a standard 20-pin 0.1" header on the target side and can directly be inserted between the J-Link or Flasher and the debug cable maintaining a 1:1 connection of all debug signals. The supply voltage is fixed to 5 V.

    More information...

    5V Target Supply Adapter

    Measurement+Patch Adapter

    The Measurement+Patch Adapter provides test points for all debug signals to allow easy access for test probes. It has a standard 20-pin 0.1" socket towards the J-Link or Flasher and a standard 20-pin 0.1" header on the target side and can directly be inserted between the J-Link or Flasher and the debug cable maintaining a 1:1 connection of all debug signals.

    More information...

    Measurement+Patch Adapter

    Programming Voltage Adapter

    The Programming Voltage Adapter delivers two externally provided voltages to the target for programming targets with voltage requirements beyond 5 V. It can directly be inserted between the Flasher and the debug cable maintaining a 1:1 connection of all debug signals.

    More information...

    Programming Voltage Adapter

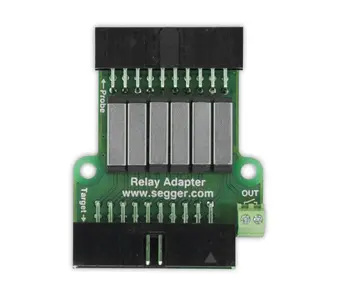

    Relay Adapter

    The Relay Adapter switches off Flasher signals on the target side by means of relay contacts, ensuring complete disconnection from the target which is especially important in production setups with automated test equipment.

    More information...

    SEGGER Relay Adapter

    Signal Smoothing Adapter

    The Signal Smoothing Adapter can be inserted between the J-Link or Flasher and the debug target to overcome signal integrity issues. Depending on target load capacitance JTAG signals might be affected by overshoot and ringing. In this case user adjustable series resistors (default 47R) allow for damping critical signal rise/fall times leading to improved signal integrity.

    More information...

    Signal Smoothing Adapter

    Supply Adapter

    The Supply Adapter provides a fixed I/O voltage level for VTRef. It eliminates the need to connect VTRef (pin1) to the target. In general, the target provides its I/O voltage level (VTRef) on pin 1 to the debug probe insuring the debug probe uses the right I/O voltages and avoiding damage of the target debug pins. For increased flexibility the Supply Adapter can adapt to other target voltages in the range from 1.2 V to 5.0  V by replacing a single resistor on the adapter (soldering required, resistor package SMD 0603).

    More information...

    Supply Adapter

    Target Supply Adapter

    The Target Supply Adapter provides an adjustable supply voltage to the target board. It has a standard 20-pin 0.1" socket towards the J-Link or Flasher and a standard 20-pin 0.1" header on the target side and can directly be inserted between the J-Link or Flasher and the debug cable maintaining a 1:1 connection of all debug signals.

    More information...

    Target Supply Adapter

    Passive Adapters

    2mm Adapter

    The 2mm Adapter adapts from the standard 20-pin connector to a 20-pin 2 mm pitch connector. The 2mm Adapter is a 1:1 adapter, since the pinout of the 2  mm pitch connector is identical to the standard 20-pin connector.

    More information...

    2mm Adapter

    9-Pin Cortex-M Adapter

    The 9-Pin Cortex-M Adapter allows JTAG, SWD, and SWO connections between J-Link or Flasher and Cortex-M based target hardware systems. It adapts from the 20-pin 0.1'' JTAG connector to a 9-pin 0.05'' Samtec FTSH connector as defined by Arm.

    More information...

    9-Pin Cortex-M Adapter

    14-Pin TI Adapter

    The 14-Pin TI Adapter allows JTAG connections between J-Link or Flasher and target hardware which uses a TI MCU and provides a 14-pin connector (e.g. the BeagleBoard with an OMAP3530 on it), defined by TI. It adapts from the 20-pin 0.1'' to a 14-pin 0.1'' JTAG connector.

    More information...

    14-Pin TI Adapter

    19-Pin Cortex-M Adapter

    The 19-Pin Cortex-M Adapter allows JTAG, SWD, and SWO connections between J-Link or Flasher and Cortex-M based target hardware systems. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector as defined by Arm.

    More information...

    19-Pin Cortex-M Adapter

    50-Mil 10-Pin Patch Adapter

    The 50-Mil 10-Pin Patch Adapter adapts from the standard 20 pin 0.1" connector to the standard 10-pin 0.05" Cortex-M connector that is also used on many non-Cortex-M designs but with non-standard pinout. This adapter allows custom connections/wiring between the 20-pin and 10-pin side.

    More information...

    50-Mil 10-Pin Patch Adapter

    ARM-14 Adapter

    The ARM-14 Adapter allows the use of J-Link or Flasher with Arm7 / 9 / 11 targets using this 14-pin 0.1" mating JTAG connector defined by Arm. The 14-pin connector, though defined by Arm as an alternative to the 20-pin connector, is not widely used on modern eval boards.

    More information...

    ARM-14 Adapter

    AVR PDI Adapter

    The AVR PDI Adapter adapts from the standard 20-pin 0.1" connector to the 6-pin 0.1" AVR PDI connector, 6-pin 0.05'' AVR PDI connector or 10-pin 0.1'' AVR PDI connector. The adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VTREF connection when the supply option is jumpered.

    More information...

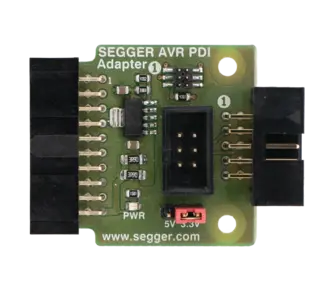

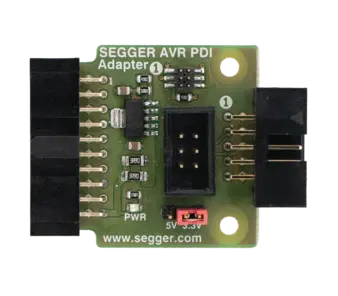

    AVR PDI Adapter

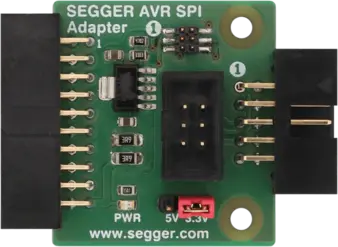

    AVR SPI Adapter

    The AVR SPI Adapter adapts from the standard 20-pin 0.1" connector to the 6-pin 0.1" AVR SPI connector, 6-pin 0.05'' AVR SPI connector or 10-pin 0.1'' AVR SPI connector. The adapter is able to optionally power the connected target hardware. 3.3  V or 5  V supply voltage can be selected using a Jumper. The target is supplied via the VTREF connection when the supply option is jumpered.

    More information...

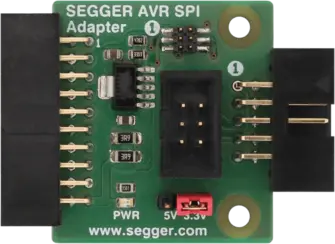

    AVR SPI Adapter

    Flasher ATE2 Starter Board

    The Flasher ATE2 Starter Board is designed to simplify the initial use of the Flasher ATE2, especially for users familiar with standard 20-pin connectors. It adapts the 96-pin output connector of the Flasher ATE2 into 8 separate 20-pin standard connectors — one for each programming module.

    More information...

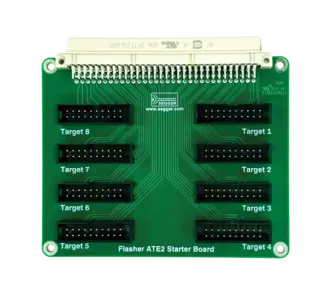

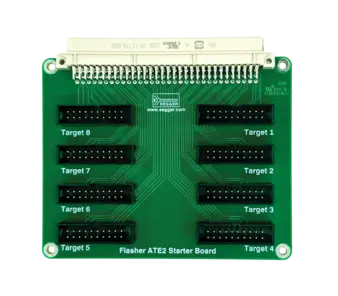

    Product photo Flasher ATE2 Starter Board

    Flying Wire Adapter

    The Flying Wire Adapter adapts from the standard 20 pin 0.1" connector to a 10-pin row, allowing to connect J-Link or Flasher to target PCBs via flying wires. It is especially useful when hooking up prototype HW where no final connector is decided yet. Or for manually connecting to ST Discovery boards.

    More information...

    Flying Wire Adapter

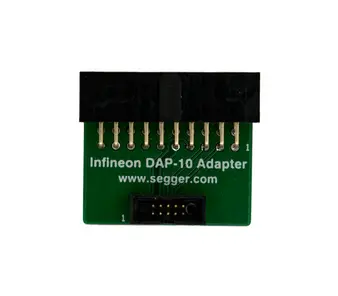

    Infineon Aurix DAP-10 Adapter

    The Infineon Aurix DAP-10 Adapter allows an OCDS DAP connection to a target hardware system which has an DAP Connector. It adapts from the SEGGER 20-pin target interface connector to a 10-pin 0.05'' Samtec FTSH (e.g. FTSH-105-01-L-DV-K) connector. The Infineon Aurix DAP-10 Adapter can be used to connect the Flasher to Infineon Aurix TC2xx, TC3xx, TC4xx, C167 microcontrollers.

    More information...

    Infineon Aurix DAP-10 Adapter

    Infineon AUTO-20 Adapter

    The Infineon AUTO-20 Adapter allows a JTAG connection to a target hardware system, which has an Automotive Connector. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector. The SEGGER Infineon AUTO-20 Adapter can be used to connect the Flasher to Infineon AURIX™ -TC3xx microcontrollers. It may also be used to connect the Flasher to a different target.

    More information...

    Infineon AUTO-20 Adapter

    Intel FPGA Adapter

    The Intel FPGA Adapter (formerly J-Link Altera Adapter) connects to the 10-pin 100-mil Intel FPGA JTAG connector providing debug access to FPGA based MCU cores like the dual-core ARM Cortex-A9 in the Cyclone V devices.

    More information...

    Intel FPGA Adapter

    J-Link Mictor 38 Adapter

    The J-Link Mictor 38 Adapter connects to the 38-pin Mictor connector. This adapter connects the GND and JTAG pins to their counterparts on the 20-pin J-Link or Flasher. Trace pins present on the Mictor connector are not connected as they are not present on the 20-pin connector. The 38-pin Mictor side of the adapter can be plugged either directly into the target side or via trace cable.

    More information...

    J-Link Mictor 38 Adapter

    Microchip Adapter

    The Microchip Adapter allows debug connections between J-Link or Flasher and target hardware which comes with Microchip PIC32 series MCUs. It supports the RJ12 modular debug connector as specified by Microchip as well as the 14-pin dual row MIPS debug header and the Microchip 6-pin single row PICkit connector (options, can be soldered by customer on demand).

    More information...

    Microchip Adapter

    MIPI-60 Adapter

    The MIPI-60 Adapter allows JTAG connections between Flasher, J-Link or J-Trace and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.

    More information...

    MIPI-60 Adapter

    PPC 14-Pin Adapter

    The PPC 14-Pin Adapter allows JTAG connections between Flasher and target hardware which uses an MCU with Power Architecture or PowerPC. It adapts from the 20-pin 0.1'' to a 14-pin 0.1'' JTAG connector.

    More information...

    PPC 14-Pin Adapter

    RAFF Adapter

    The RAFF Adapter is a Right Angle Female to Female adapter. It is a 1:1 adapter and therefore does not change the pinout and can be used as a replacement of the standard IDC ribbon cable. A compact debug or programming solution can be achieved with a J-Link Compact or Flasher Compact, and the RAFF adapter plugged into a straight / vertical PCB pin header on the target application board.

    More information...

    RAFF Adapter

    Renesas M16C Family 10-Pin Adapter

    The Renesas M16C Family 10-Pin Adapter adapts from the standard 20-pin connector of Flasher PRO to target hardware using a Renesas 10-pin programming connector.

    More information...

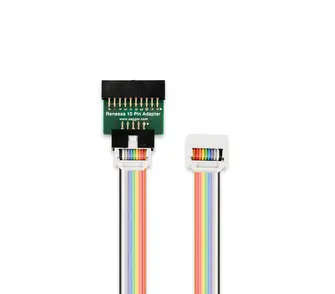

    Renesas 10-Pin Adapter

    RH850 Adapter

    The RH850 Adapter enables connections from the .1" 20-pin standard connector of the Flasher to a 14-pin connector of target hardware supplied with Renesas RH850 series MCUs.

    More information...

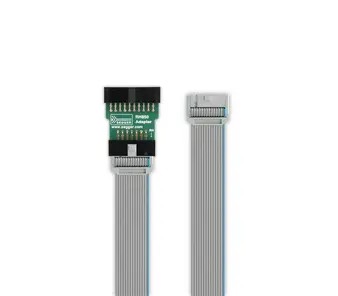

    RH850 Adapter for Flasher

    RL78 14-Pin Programming Adapter

    The RL78 14-Pin Programming Adapter converts the standard 20-pin 0.1" connector to the standard 14-pin E1 connector defined by Renesas. The adapter is able to optionally power the connected target hardware. 3.3  V or 5  V supply voltage can be selected using a Jumper.

    More information...

    RL78 Adapter

    RX Adapter

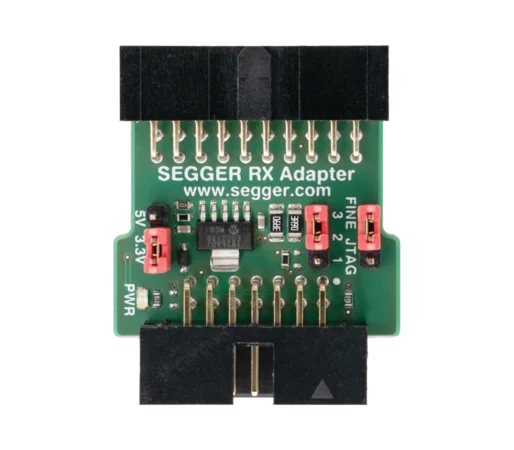

    The RX Adapter allows connections between J-Link or Flasher and target hardware which comes with the Renesas RX600 / 200 / 100 series MCUs. The RX adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VTref connection when the supply option is jumpered.

    More information...

    rx14-adapter-cable

    RX FINE Adapter

    The RX FINE Adapter allows connections between J-Link or Flasher and Renesas RX based target hardware that supports the Renesas FINE interface (RX63xx, RX2xx, RX1xx CPUs).

    More information...

    RX FINE Adapter

    SiLabs C2 Adapter

    The SiLabs C2 Adapter allows debug connections between J-Link or Flasher and target hardware which comes with Silicon Labs C2 debug interface. It adapts from the 20-pin 0.1'' standard debug connector to a 10-pin 0.1'' connector with a pinout compatible with Silicon Labs eval boards.

    More information...

    SiLabs C2 Adapter

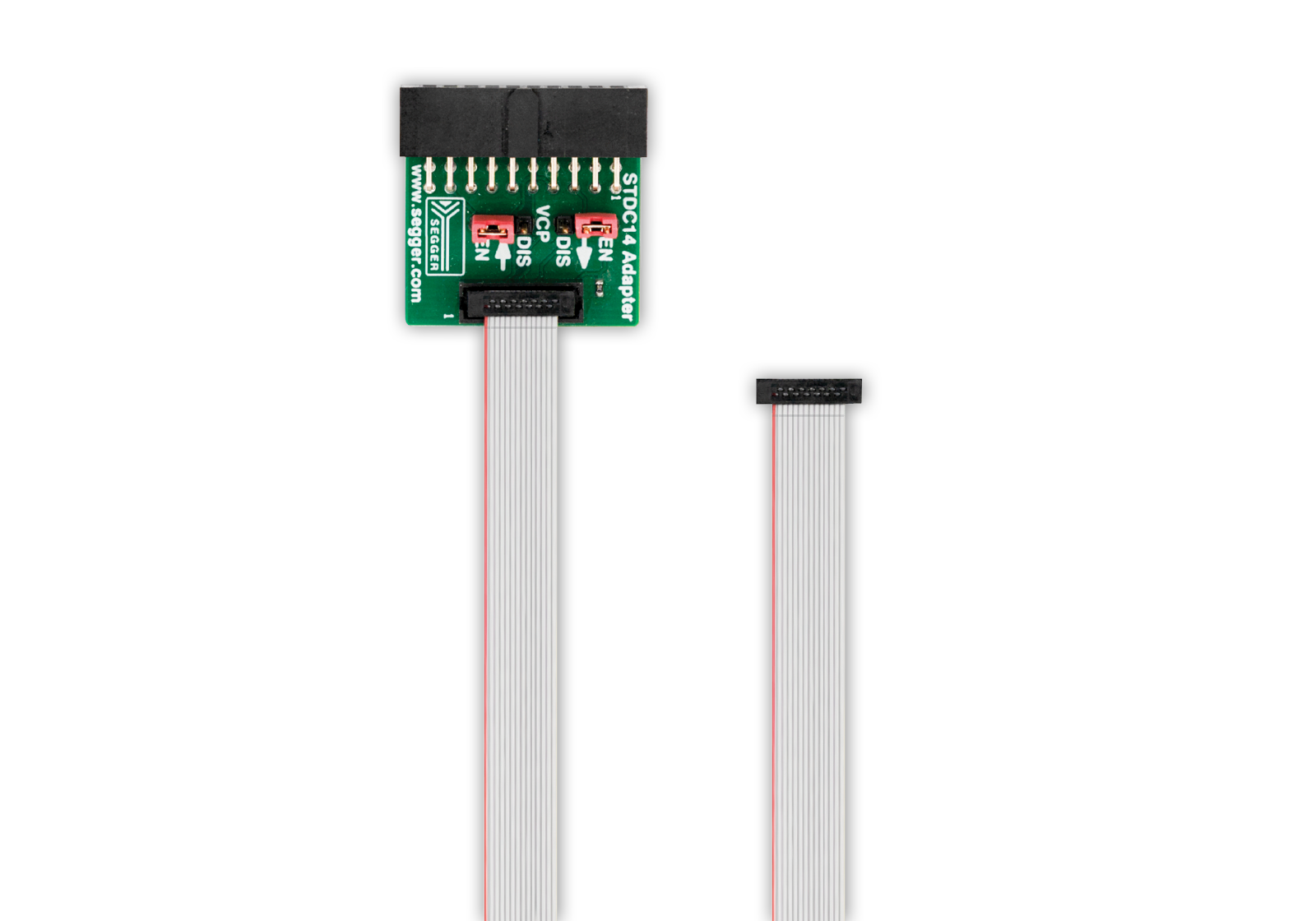

    STDC14 Adapter

    The STDC14 Adapter is intended for use with current evaluation boards using ST silicon and the STDC14 pin debug pinout. It adapts from the 20-pin 0.1'' Flasher and J-Link debug connector to the 14-pin 0.05'' connector defined by ST.

    More information...

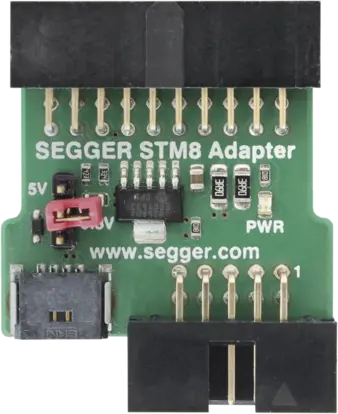

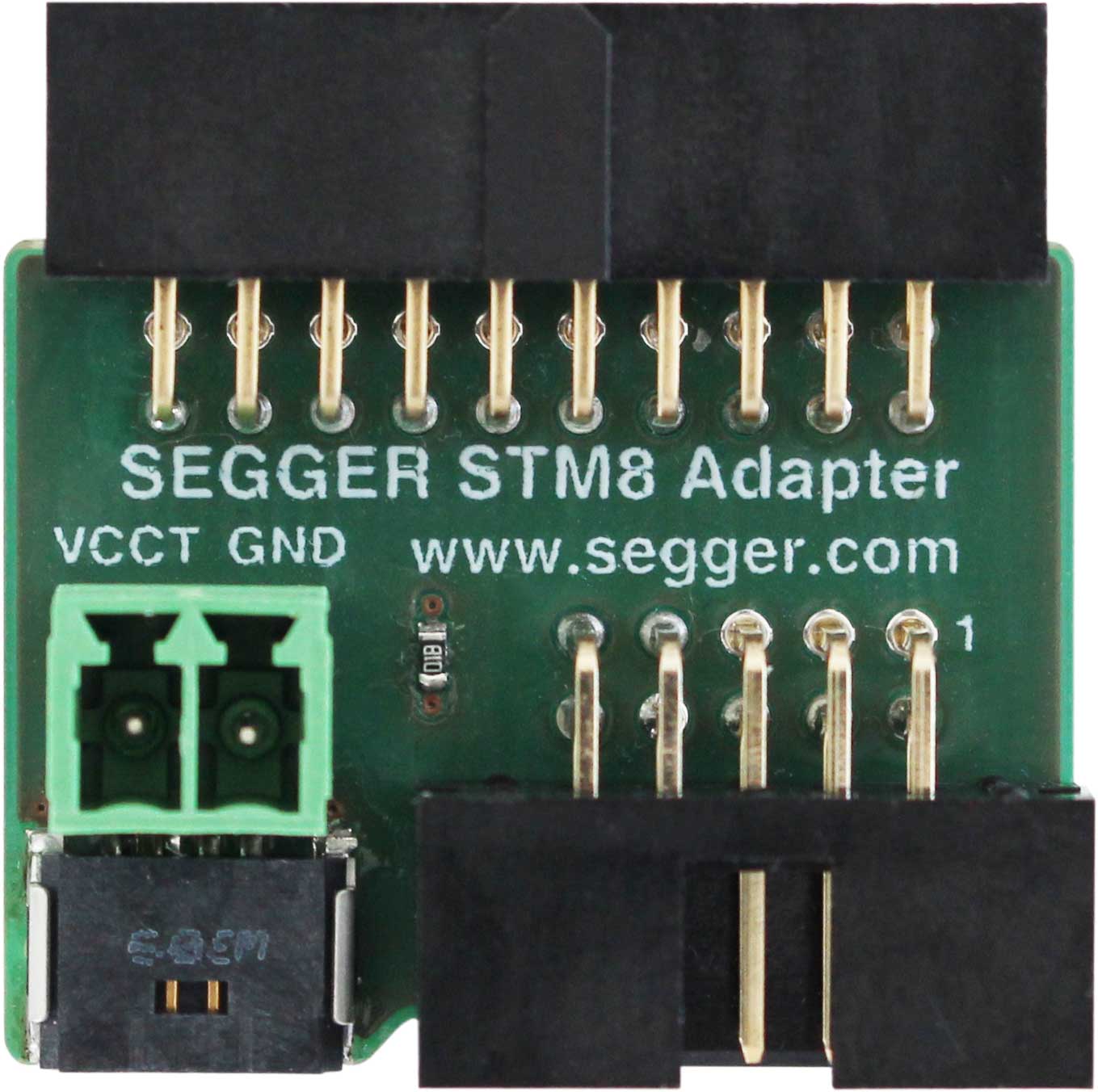

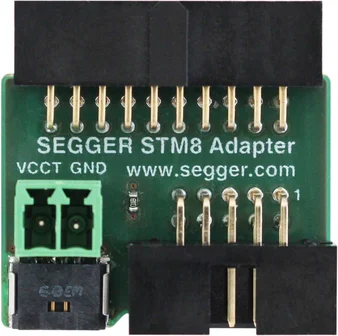

    STM8 Adapter

    The STM8 Adapter converts the standard 20-pin 0.1" connector to the SWIM connector and a standard 10-pin connector. In addition the target board can be powered using the external input connector on the STM8 Adapter. The adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VCCT connection when the supply option is jumpered.

    More information...

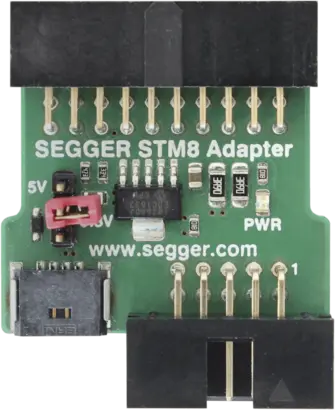

    STM8 Adapter

    TI-CTI-20 Adapter

    The TI-CTI-20 Adapter adapts from a standard 20-pin 0.1" target connector to TI CTI-20 connector. This adapter allows to connect J-Links or Flashers to eval boards with TI MCUs that are equipped with a TI CTI-20 connector, e.g. the AM335x evaluation module.

    More information...

    TI-CTI-20 Adapter Pinout

    Xilinx Adapter

    The Xilinx Adapter connects to the 14-pin 2 mm Xilinx JTAG connector providing debug access to FPGA-based MCU cores like the Arm Cortex-A9 core in the Zynq devices.

    More information...

    Xilinx Adapter

    Needle Adapters

    6-Pin Needle Adapter

    The 6-Pin Needle Adapter has been designed to connect a J-Link or Flasher to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures, that the adapter can only be connected in one way. The 6-Pin Needle Adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 20-pin 0.1'' JTAG to a 6-pin needle connector.

    More information...

    6-Pin Needle Adapter

    10-Pin Needle Adapter

    The10-Pin Needle Adapter has been designed to connect a J-Link or Flasher to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures that the adapter cannot be connected the wrong way. The needle adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 20-pin 0.1'' JTAG to a 10-pin needle connector.

    More information...

    10-Pin Needle Adapter
