Overview

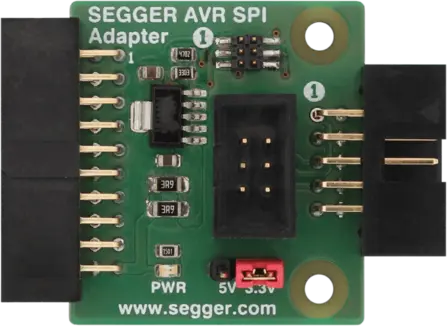

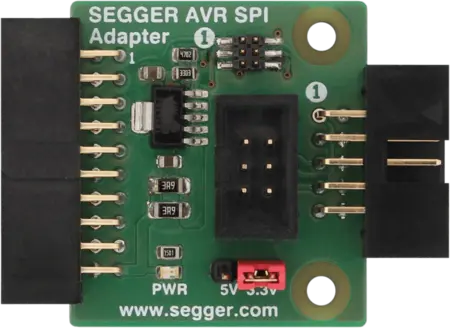

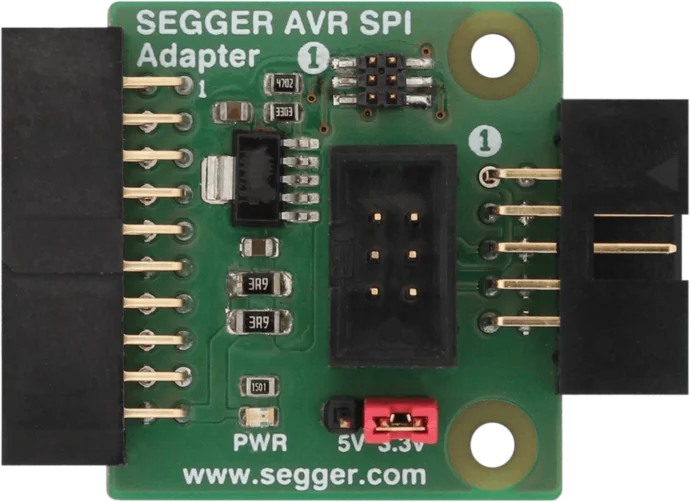

SEGGER AVR SPI Adapter

The AVR SPI Adapter allows to connect a Microchip AVR device with a SEGGER Flasher device. It supports 6-pin and 10-pin Microchip header.

The adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VTREF connection when the supply option is jumpered.

Pinout & schematics

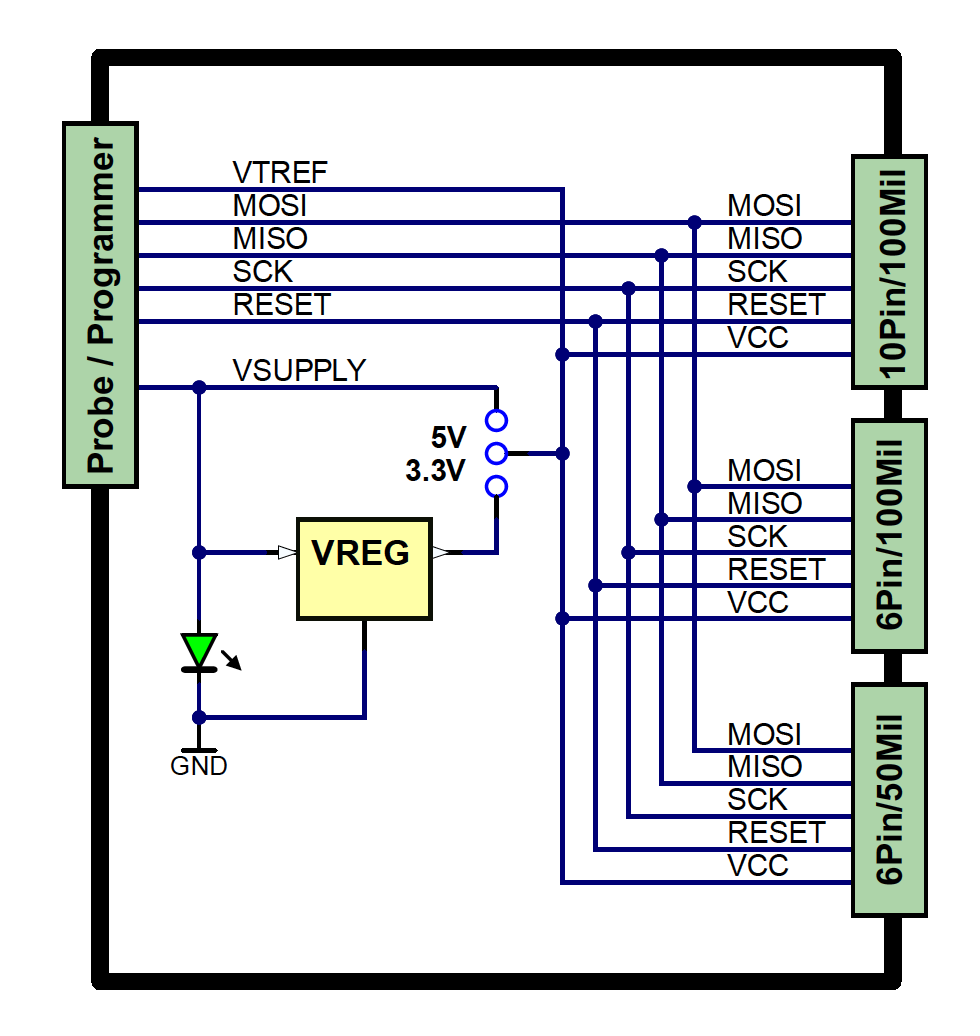

A circuit diagram showing connections for a programming probe. Components include a voltage regulator (VREG), various input/output pins (MOSI, MISO, SCK, RESET, VCC) for multiple connectors (10-pin, 6-pin/100 mil, and 6-pin/50 mil), and power supply lines labeled VSUPPLY and GND.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.
