Infineon AUTO-20 Adapter

Seamless connectivity for Flasher

Adapts 20-pin 0.1" JTAG to automotive connectors.
Connects JTAG probes to Infineon target systems.
Enables reliable JTAG access for vehicle hardware.

Buy now Compare Flasher adapters Documentation

Overview

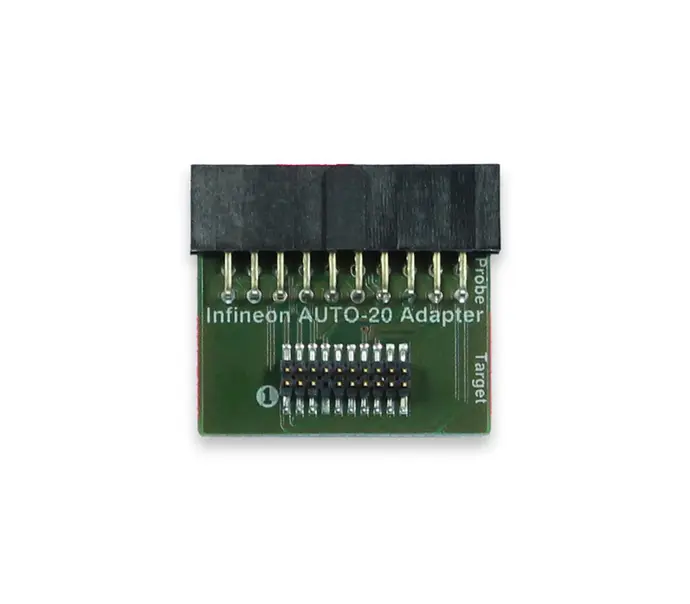

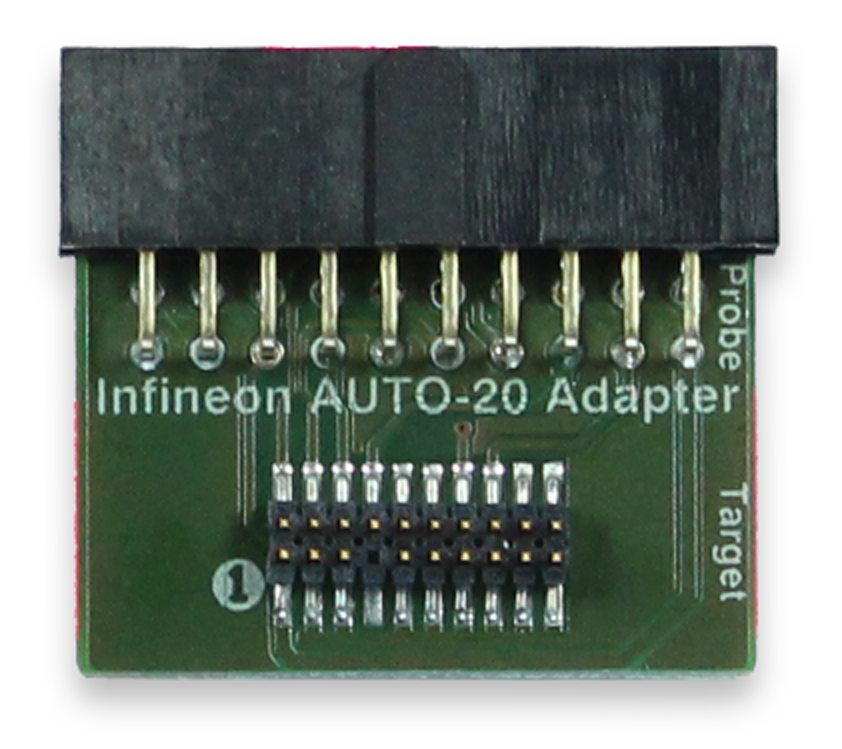

The image features an Infineon AUTO-20 adapter, a small rectangular green circuit board with a row of metal pins on one side and labeled connections for "Probe" and "Target." It is designed for use in electronic applications.

The Infineon AUTO-20 Adapter allows a JTAG connection to a target hardware system which has an Automotive Connector. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector.

The SEGGER Infineon AUTO-20 Adapter can be used to connect a Flasher device to Infineon AURIX™ -TC3xx microcontrollers. It may also be used to connect the Flasher to a different target as far as the target connector uses the same pinout as shown below.

Pinout & schematics

A simple black silhouette of a person holding an umbrella, standing against a plain background. The figure appears to be facing forward, with the umbrella held above their head, suggesting a rainy or overcast situation.

Diagram illustrating connections between a probe/programmer and a target device. It lists signal names: VTREF, TRST, TDI, TMS, TCK, TDO, RESET, and RFU, connected via horizontal lines within a rectangular frame.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.
