AVR PDI Adapter

Seamless connectivity for Flasher

  • AVR PDI interface
  • Direct target connectivity
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinouts & schematics
  3. 3.Suitable products

Overview

The AVR PDI Adapter adapts from the standard 20 pin 0.1" connector to the 6-pin 0.1" AVR PDI connector, 6-pin 0.05'' AVR PDI connector or 10-pin 0.1'' AVR PDI connector. The adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VTREF connection when the supply option is jumpered.

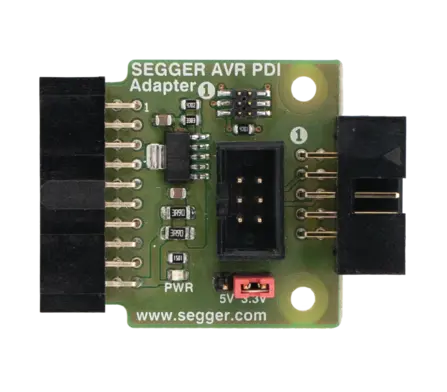

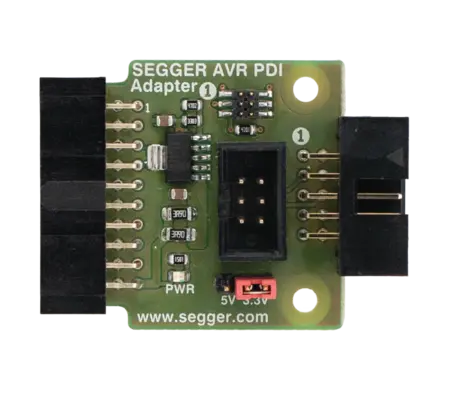

segger avr pdi adapter
Pin
Signal
1
DATA
2
VTRef
3
n.c.
4
n.c.
5
CLK
6
GND
Pin
Signal
1
n.c.
2
GND
3
DATA
4
VTRef
5
n.c.
6
CLK
7
n.c.
8
n.c.
9
n.c.
10
GND

Pinouts & schematics

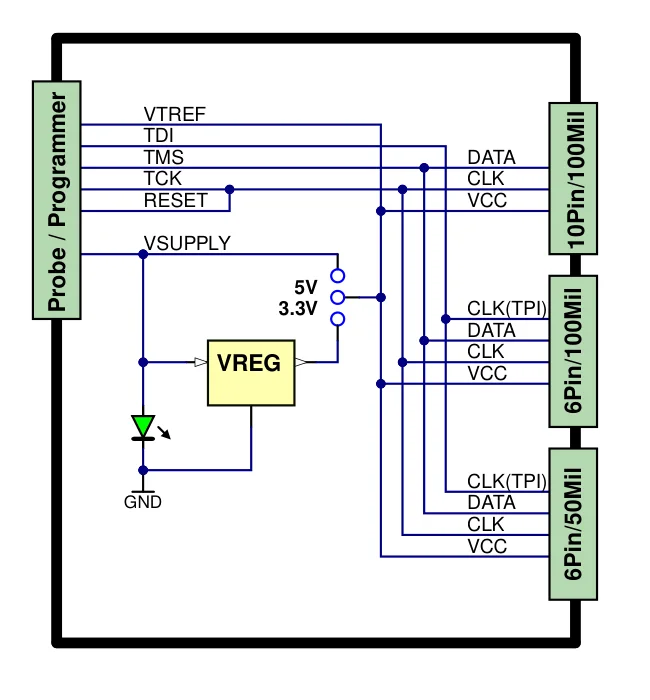

Schematic diagram of a programming probe interface, featuring pin connections labeled VTREF, TDI, TMS, TCK, and RESET. It shows a voltage regulator (VREG) supplying 5V and 3.3V and includes a ground connection. Connector types with varying pin counts are indicated on the right side.
