Flasher ATE2 Starter Board

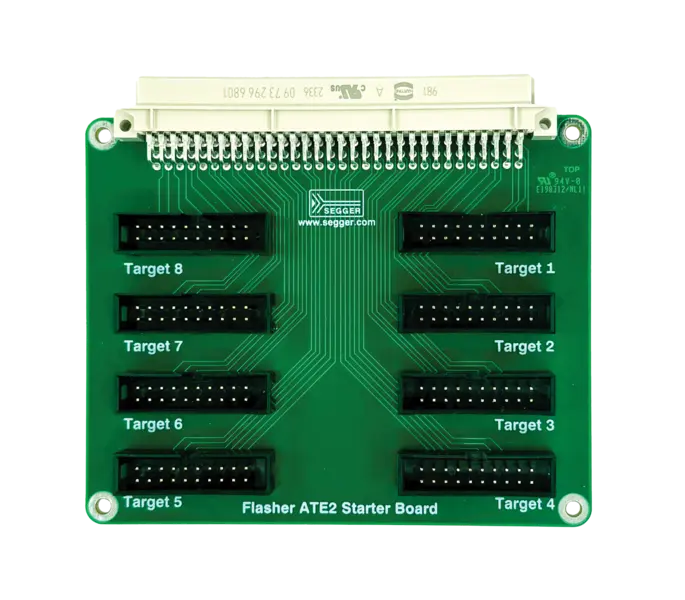

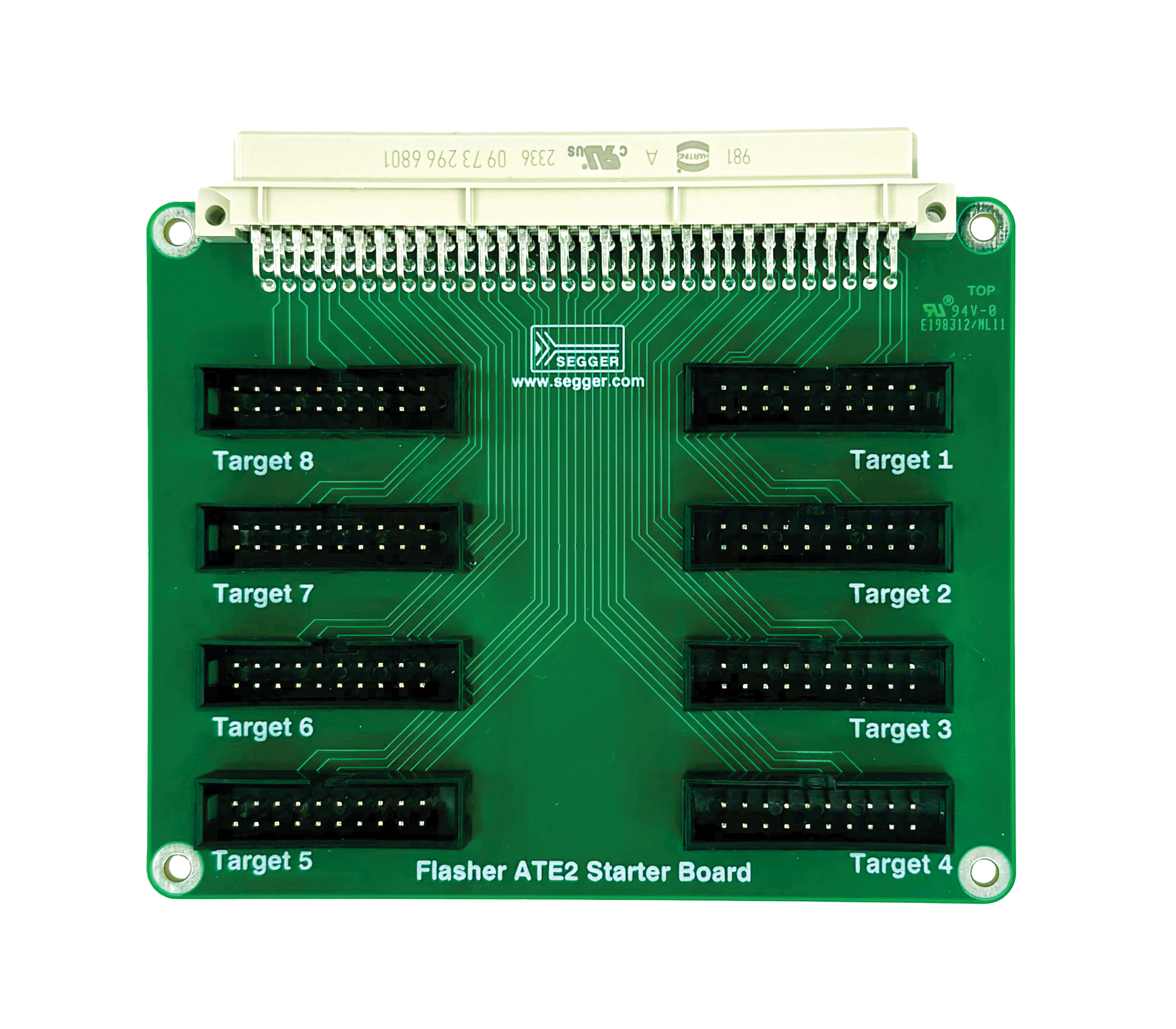

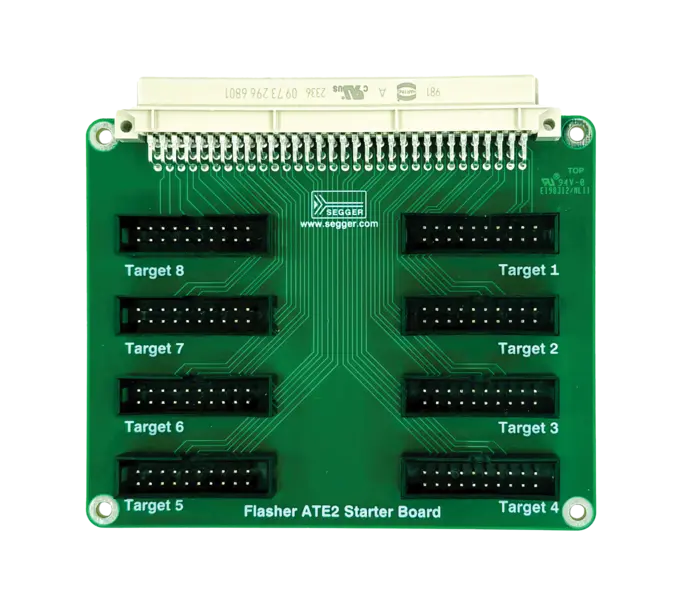

The Flasher ATE2 Starter Board is a plug-and-play solution that allows developers to quickly connect to targets — without the need for custom cables or adapters. This makes the board ideal for development and evaluation setups. Initial setup of the Flasher ATE2 is simplified, especially for users familiar with standard 20-pin connectors. The board adapts the Flasher ATE2's 96-pin output connector to 8 separate 20-pin standard connectors — one for each programming module.

For detailed information on the programming interface and pinout, refer to the Flasher ATE2 Knowledge Base article and/or download a PDF file of the schematics.
