PPC 14-Pin Adapter

Seamless connectivity for Flasher

  • PowerPC JTAG adapter
  • Direct hardware connection
  • Reliable JTAG flashing
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinout & schematics
  3. 3.Suitable products
    1. 3.1.Flasher
    2. 3.2.J-Link

Overview

J-Link PPC 14 pin adapter

The PPC 14-Pin Adapter allows JTAG connections between Flasher and target hardware which uses an MCU with Power Architecture or PowerPC. It adapts from the 20-pin 0.1'' to a 14-pin 0.1'' JTAG connector.

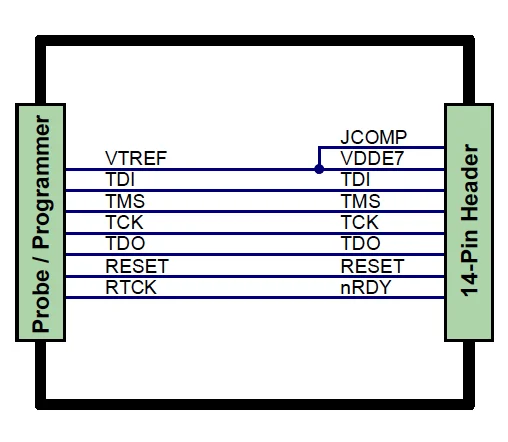

Pinout & schematics

Schematic diagram depicting connections between a probe/programmer and a 14-pin header. It includes pin labels such as VTREF, TDI, TMS, TCK, TDO, RESET, RTCK, and additional connections like JCOMP and VDDE7. Lines indicate the signal pathways between the two components.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
