2mm Adapter
Seamless connectivity for Flasher
- 2 mm pitch interface
- 1:1 pinout compatibility
Overview
The 2mm Adapter is a 1:1 adapter, since the pinout of the 2 mm pitch connector is identical to the standard 20-pin connector.
Technical specifications
- Output voltage:
- 5 V +/- 5 %
- Output current:
- 5 V / 500 mA
- Max. output current (drive-dependent):
- 5 V / 220 mA.
- Max. capacitive load:
- 220 uF
- Ramp time (output):
- 2-6 ms

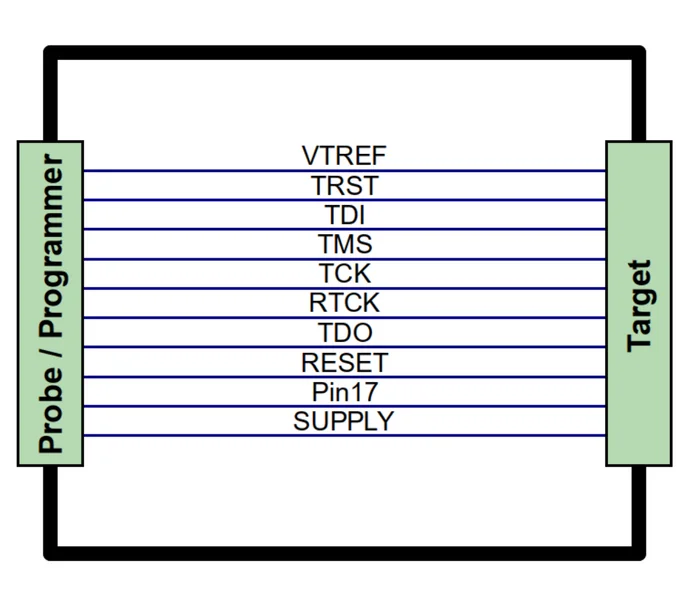

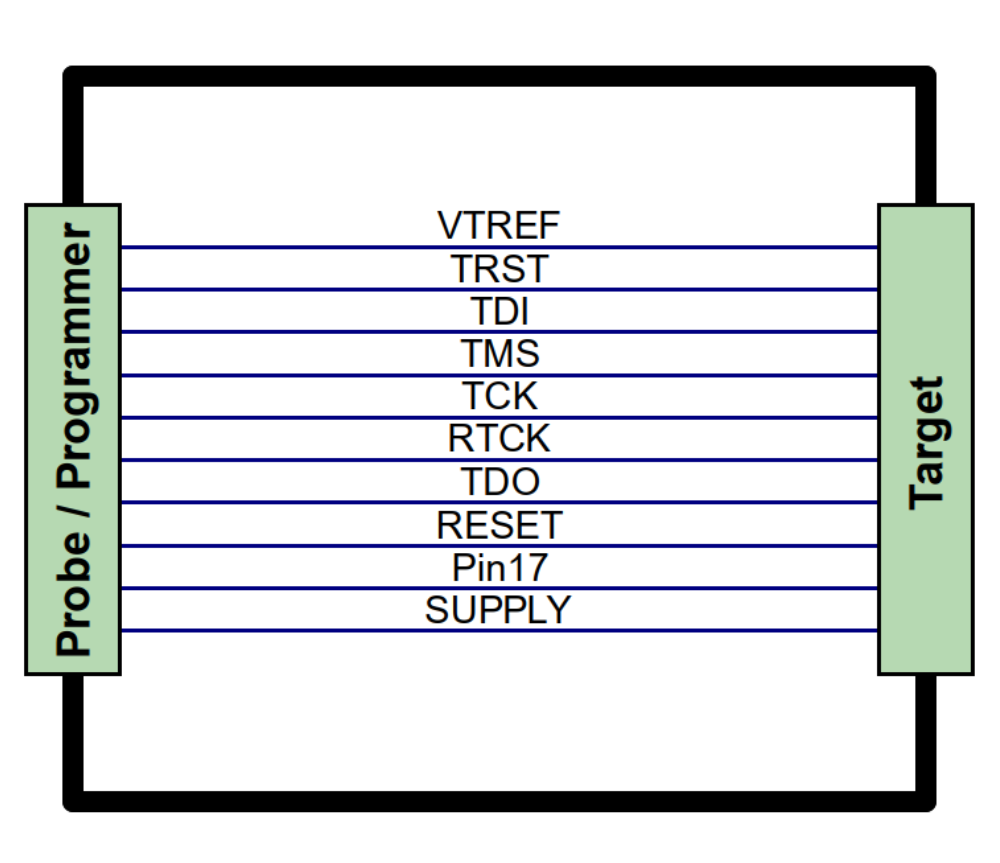

Pinout & schematics
Pins 14, 16, 18, 20:
On some models like the high-end model J-Link Pro, these pins may not be connected to GND but are reserved for future use/extension. In case of doubt, leave open on target hardware.
