14-Pin TI Adapter

Seamless connectivity for Flasher

TI 14-pin JTAG interface
20-to-14-pin conversion

Buy now Compare Flasher adapters Documentation

1.Overview
2.Pinout & schematics
3.Suitable products
1. 3.1.Flasher
2. 3.2.J-Link

Overview

J-Link TI 14pin Adapter

The 14-Pin TI Adapter allows connections between J-Link or Flasher and target hardware which use a TI MCU and provides a 14-pin connector (e.g. the BeagleBoard with an OMAP3530 on it), defined by TI. It adapts from the 20-pin 0.1'' to a 14-pin 0.1'' JTAG connector.

Pinout & schematics

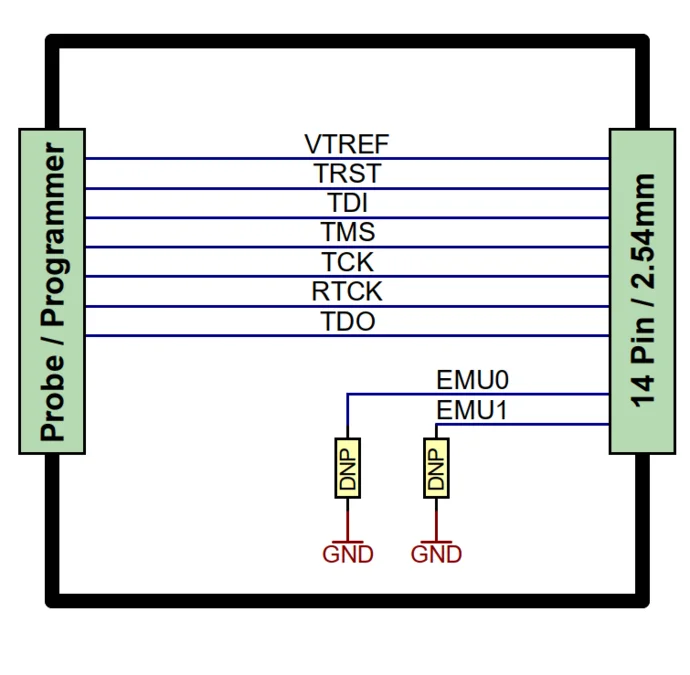

Diagram of a 14-pin probe/programmer connection, showing pin labels including VTREF, TRST, TDI, TMS, TCK, RTCK, and TDO. It also includes connection points for EMU0 and EMU1, and two grounded DNP labels.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link
