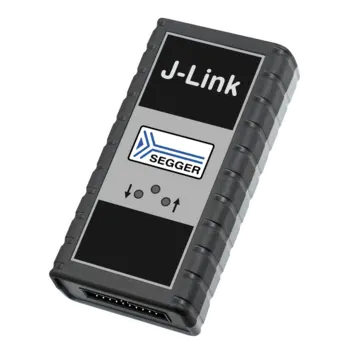

J-Link PRO Debug Probe with Ethernet

J-Link – The Market-leading debug probe

SEGGER J-Links are the most widely used line of debug probes on the market. They have provided solid value to embedded development for over a decade. Unparalleled performance, an extensive feature set, many supported CPUs & compatibility with popular environments all make J-Link an unbeatable choice.

Compare J-Link models
Buy now
  1. 1. J-Link Debug Probes: The Number One Choice
  2. 2.Download into Flash Memory
  3. 3.J-Link Tools: Making Development Easier
  4. 4.Ozone – J-Link Debugger & Performance Analyzer
  5. 5.SystemView – Analyzing Embedded Systems
  6. 6.Embedded Studio – The Complete, All-In-One Solution
  7. 7.The SEGGER J-Link Family: Model Overview
  8. 8.Discover the J-Link Ecosystem
    1. 8.1.GDB Support
    2. 8.2.LLDB Support
    3. 8.3.OpenOCD Support
  9. 9.Gain Full Insight with the J-Link Control Panel
  10. 10.Media gallery
  11. 11.Working with the J-Link Debug Probe
  12. 12.VCOM Functionality
    1. 12.1.Availability
    2. 12.2.Technology
    3. 12.3.Pinout
  13. 13.FAQ - Frequently Asked Questions

J-Link Debug Probes: The Number One Choice

J-Link debug probes are the most popular choice for optimizing the debugging and flash programming experience. Benefit from record-breaking flash loaders, up to 4 MB/s RAM download speed and the ability to set an unlimited number of breakpoints in the flash memory of MCUs.

J-Link also supports a wide range of CPUs and architectures. Everything from single 8051 to mass market Cortex-M to high-end cores like Cortex-A (32- & 64-bit).

J-Link supports directly interfacing SPI flashes, without the need of a CPU between J-Link and the SPI flash (directly communicating via the SPI protocol). J-Link is further supported by all major IDEs, from free Eclipse-based ones (directly or via GDB) up to commercial ones, including SEGGER Embedded Studio. See a complete list of supported IDEs here, a complete list of supported devices here and a list of SPI Flashes here.

Download into Flash Memory

J-Link Flash Download

J-Link makes Flash memory feel almost like RAM. Since it comes with a set of speed-optimized, built-in flash loaders it can easily and quickly be downloaded into flash memory. Take a look below to find out more information.

More information

J-Link Tools: Making Development Easier

The J-Link Software and Documentation Package available for download includes a significant number of tools that make a developer's job easier and extend the capabilities of J-Link. Almost all J-Link tools have cross platform support and run on Windows, Linux and macOS.

DownloadJ-Link Software and Documentation Pack
csm ozone debugger

Ozone – J-Link Debugger & Performance Analyzer

Ozone is a full-featured graphical debugger for embedded systems – and so much more. Thanks to features such as trace, code profiling and code coverage analysis, it is also an extremely powerful performance analyzer. Ozone allows for the debugging of any embedded application on C/C++ source and assembly level, load applications built with any toolchain/IDE or even debug the target’s resident application without any source.

Ozone includes all well-known debug controls and information windows, making use of the best performance of J-Link and J-Trace debug probes. The user interface is highly intuitive, yet fully configurable. Each window can be moved, re-sized and docked to fit every developer’s needs.

More information

system v3 markers 2

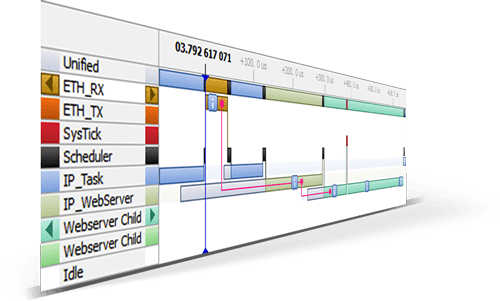

SystemView – Analyzing Embedded Systems

SystemView ensures that systems perform as they are designed. It is a real-time recording and visualization tool for embedded systems, revealing the true runtime behavior of an application. In fact, it even goes far deeper than system insights provided by standard debuggers.

And that’s exactly what is needed when working with complex embedded systems. SystemView tracks down inefficiencies, shows unintended interactions and resource conflicts: all with a focus on the details of every single system click.

More information

SEGGER Embedded Studio debugging

Embedded Studio – The Complete, All-In-One Solution

Embedded Studio is a complete, all-in-one solution for managing, building, testing, and deploying embedded applications. It is the best solution for embedded C programming: with a Visual Studio-like appearance, embedded engineers get the same intuitive usage PC developers enjoy.

With Embedded Studio, developers get a powerful project generator for an easy start with common microcontrollers. Included is also a project manager, a source code editor, C/C++ compiler and integrated debugger.

More information

The SEGGER J-Link Family: Model Overview

No matter the use case, the SEGGER J-Link product family has a device for each and everyone. Take a look at the models below. For more information (such as feature comparison), go to the J-Link model overview.

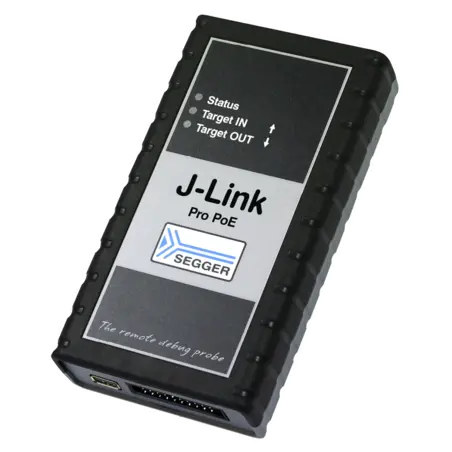

J-Link Probe Debug with Ethernet

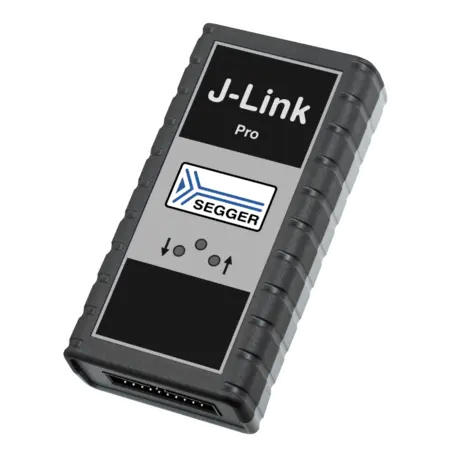

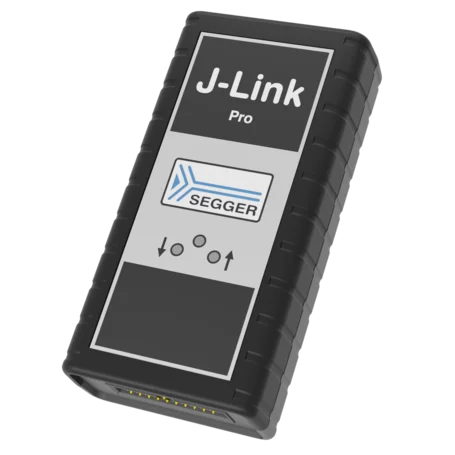

J-Link PRO

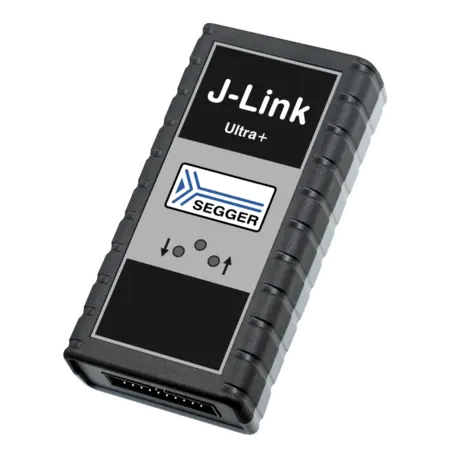

J-Link ULTRA+

J-Link ULTRA+

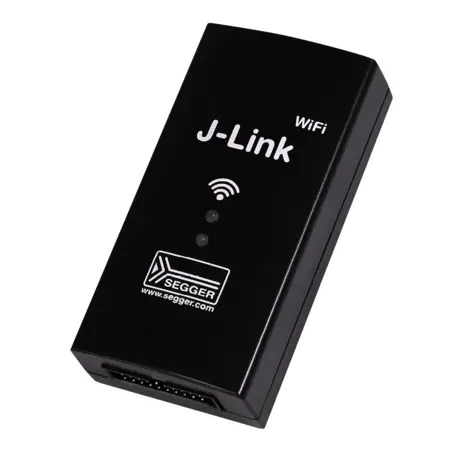

J-Link WiFi

J-Link WiFi

J-Link PLUS

J-Link PLUS
Classic

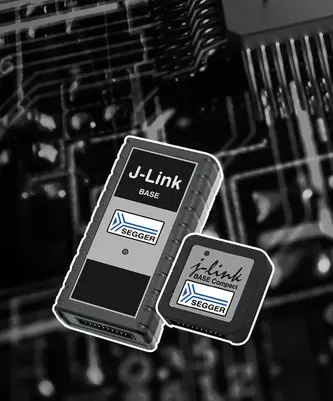

J-Link PLUS Compact

J-Link PLUS Compact

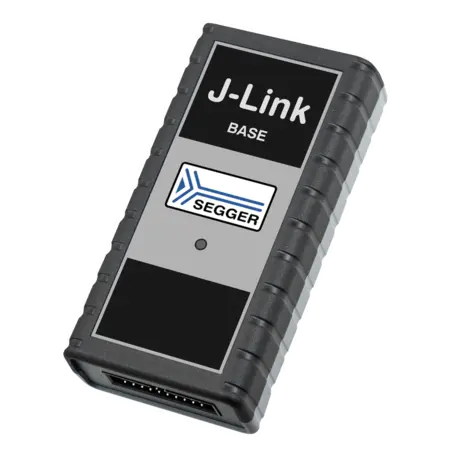

J-Link BASE

J-Link BASE
Classic

J-Link BASE Compact

J-Link BASE Compact

J-Link EDU

J-Link EDU

J-Link EDU Mini

J-Link EDU Mini

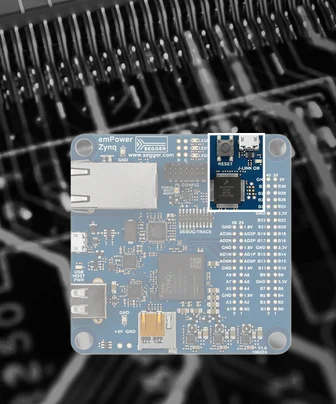

SEGGER's J-Link On-Board Debug Probe - J-Link OB

J-Link OB

Discover the J-Link Ecosystem

J-Link supports SEGGER’s own software, of course, while also offering support for a host of 3rd-party embedded system development options.
To find out more, have a look at the overview of supported IDEs and the 3rd party applications.

Want to access J-Link and benefit from its feature set? Either directly access the J-Link SDK or use the GDB-Server interface provided by the J-Link software.



GDB Support

J-Link can be used with GDB based setups. The GNU Debugger (GBD) is the de facto debugger for development on Linux systems. However, it has now found its way into embedded development (even without Linux running on the target system). GDB provides a standardized interface / API that can be used by an IDE.

It also specifies a standardized protocol (GDB remote protocol) which allows GDB to communicate with a GDBServer which knows how to handle the debug probe connected to the target. The J-Link software package comes with the J-Link GDBServer which allows using J-Link in GDB based setups.

LLDB Support

J-Link can be used with LLDB. Originally, GNU toolchains provided GCC as a compiler and GDB as a debugger. Since Clang’s introduction as a compiler, LLDB was introduced (which was essentially a GDB successor). In terms of protocol, it is backward compatible to GDB whilst the API for the IDE is slightly different.

J-Link software package comes with the J-Link GDBServer. This permits the use of J-Link in LLDB-based setups.

OpenOCD Support

J-Link can be used with OpenOCD (Open On-Chip Debugger).

OpenOCD is an open-source software that can interface basically any debug probe. It provides a standardized API, allowing an IDE to support OpenOCD. There are several tutorials on the internet that describe how to use J-Link with OpenOCD.

Note: OpenOCD is a 3rd party software, so SEGGER cannot provide any guarantees etc. Using J-Link with OpenOCD bypasses all J-Link specific features like flash programming, unlimited flash breakpoints and the J-Link high debugging speed. OpenOCD will handle J-Link as a simple sequence generator which will affect debug performance. Please also note that using J-Link with OpenOCD is not covered by the standard J-Link support. Support for OpenOCD is provided by the OpenOCD community.

Gain Full Insight with the J-Link Control Panel

No more guessing! The J-Link Control Panel provides full transparency about J-Link’s current activities. The Control Panel is available on all platforms (Windows, Linux, macOS). No additional utility for installation required. It is available through a standard web browser.

Consider the following scenario: An IDE has been chosen and the developer has started working with it. Then, a new and useful feature is introduced to the J-Link software, but the IDE itself hasn’t adopted it yet. Perhaps even worse, the IDE cannot be updated due to certification reasons. This is where the J-Link control panel provides the opportunity to make use of new J-Link features; without even touching the IDE itself.

J-Link CP General

Media gallery

J-Link's software provides for a more efficient programming experience. Find out how easy it can be by taking a look at the video demonstrations below.

The J-Link Configurator | 5:24 min

The J-Link Commander | 7:48 min

Video - Performance analysis on RISC-V

Performance analysis | 4:02 min

Working with the J-Link Debug Probe

J-Link can be used for programming flash targets with the J-Flash software or stand-alone.

So, it’s time to get started: To use J-Link for the first time, install the J-Link related software and documentation pack. Among other things, the pack includes J-Flash software and connects J-Link to the host PC via USB.

DownloadJ-Link Software and Documentation Pack

Connecting to the target system: Make sure J-Link is powered on before you connect it to the target device. To power it on, connect J-Link to the host system via USB. Next, connect it with the target device. Switch on the device after connecting J-Link to it.

Using J-Link PRO with Ethernet? Just power it on with an external power supply.

Verifying Target Device Connection with J-Link Commander

If the USB driver is working properly and your J-Link is connected with the host system, you can connect J-Link to your target hardware. Now start the J-Link command line tool Jlink.exe. This should display the normal J-Link related information. Next, type “connect” and specify your target and the target interface. It will report a J-Link connected to an STM32F205 along with the related information.

Start using J-Link with your favorite toolchain: To connect your J-Link with your development project, please consult the guide for your favourite tool-chain.

VCOM Functionality

J-Link comes with built-in virtual COM port (VCOM) functionality. This means that in addition to the regular J-Link debug functionality, J-Link will also show up as a COM port in the device manager of the operating system.

Most modern computers don’t have a physical COM port anymore. However, many hardware setups still use UARTs for logging, diagnostics and application control. That’s why a separate COM to USB adapter is needed to get full COM functionality of the target hardware, while debugging at the same time.

With J-Link, there’s no need for an additional adapter since J-Link already provides this adaption functionality.



Availability

The VCOM functionality is available on the current hardware version of the following J-Link models:

  • J-Link BASE
  • J-Link EDU
  • J-Link PLUS
  • J-Link PRO
  • J-Link ULTRA+
  • J-Link WiFi

Technology

The J-Link VCOM functionality is implemented via SEGGER emUSB-Device, using the CDC-ACM class.
For more information, please refer to the emUSB-Device pages.

J-Link models are shipped with VCOM functionality disabled. It can be enabled via the J-Link Configurator utility. For more information about how to enable VCOM on a J-Link, please refer to the J-Link user guide.


Pinout

The following pins on the stadard 20-pin 0.1" connector on J-Link are used for VCOM functionality:

  • 5: J-Link Tx
  • 17: J-Link Rx

Notes:

  • VCOM functionality is not available for the J-Link EDU Mini model
  • VCOM functionality is not available when using the traditional 4-wire JTAG interface for target communication, as Pin 5 is needed as TDI for this interface

FAQ - Frequently Asked Questions

What is the advantage of J-Link versus simple probes such as FTDI-based systems?

A: J-Link has numerous advantages: the actual J-Link software supplied by SEGGER (which enables use with common IDEs), the availability of unlimited flash breakpoints for the debugging of software which runs in the flash of microcontrollers, it’s high speed and it’s simple, fast download into flash memory.

In contrast to most simple probes, J-Link supports adaptive clocking as well as SWD and SWO. It also functions more stably, since it is not just a dump USB to JTAG converter. Instead, it uses the intelligence of the built-in CPU which provides more robust communication. This is especially so in situations where the target CPU runs at low clock speeds.

Can I write my own application with J-Link?

A: Yes. We offer a dedicated Software Developer Kit (SDK). This enables the use of full J-Link functionality. Find out more about SDKs here.

The core of my target system could not be recognized automatically. Is there a way to configure my device in order to communicate with J-Link?

A: Yes! In most cases, J-Link autodetection works fine and recognizes the core of a device automatically. In some cases however, J-Link’s auto-detection may not work (i.e., if the core is not present in the JTAG chain by default and needs to be enabled by sending a command to another device in the JTAG-chain). In these cases, the connection sequence of J-Link can be customized by using a J-Link script file which is executed before the communication between J-Link and the target system starts. The script file allows maximum flexibility, so almost any target initialization that is necessary can be supported.

What is adaptive clocking and when and why would I use it?

A: If the target provides the RTCK signal, select the adaptive clocking function to synchronize the JTAG clock (TCK) to the processor clock outside the core. This ensures there are no synchronization problems over the JTAG interface. If you use the adaptive clocking feature, transmission delays, gate delays, and synchronization requirements result in a lower maximum clock frequency than with nonadaptive clocking. This is the recommended JTAG speed used to connect to ARM7/9 -S cores.

I have multiple ARM cores in my JTAG chain. How can I debug them (simultaneously) with J-Link?

A: Simple: Two or more debuggers can use the same J-Link simultaneously. Multi-core debugging requires multiple debuggers or multiple instances of the same debugger. You need to tell your debugger which device in the scan chain you want to debug. Additional special settings are not required.

May I work with more than one J-Link at the same time, on the same machine?

A: Yes, you can connect an unlimited number of J-Links to your PC. No special configuration required; each J-Link is registered with its unique serial number on the PC. This enables you to have multiple J-Links connected at once.

Which CPUs are supported by J-Link?

A: J-Link works with devices based on CPU cores from Arm, Cadence, Microchip, Renesas, RISC-V and Silicon Laboratories. For a detailed list, please go to supported CPUs and devices.

What is the maximum JTAG speed supported by J-Link?

A: The maximum JTAG speed supported by J-Link BASE and J-Link PLUS is 15MHz. J-Link ULTRA+ and J-Link PRO support a maximum JTAG speed of 50MHz.

What is the maximum download speed into RAM?

A: The maximum download speed is currently about 1 MB/s for J-Link BASE/PLUS and 4 MB/s for J-Link ULTRA+ and J-Link PRO when downloading into RAM. However, the actual speed depends on various factors, such as JTAG, clock speed, host CPU core etc.

Can J-Link read back the status of the JTAG pins?

A: Yes, the status of all pins can be read. This includes the outputs of J-Link as well as the supply voltage, which can be useful to detect hardware problems on the target system.

Does J-Link support the Embedded Trace Buffer (ETB)?

A: Yes. J-Link supports ETB on Cortex-M3/M4/M7 and Cortex-A/R (if implemented by target device).

Does J-Link support the  Micro Trace Buffer (MTB)?

A: Yes.

Does J-Link support the Embedded Trace Macrocell (ETM)?

A: No. ETM requires another connection to the ARM chip and a CPU with built-in ETM. ETM is supported by the J-Trace product family.
