50-Mil 10-Pin Patch Adapter

Seamless connectivity for Flasher

  • 10-pin 0.05" interface
  • Flexible patch connection
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Suitable products
    1. 2.1.Flasher
    2. 2.2.J-Link

Overview

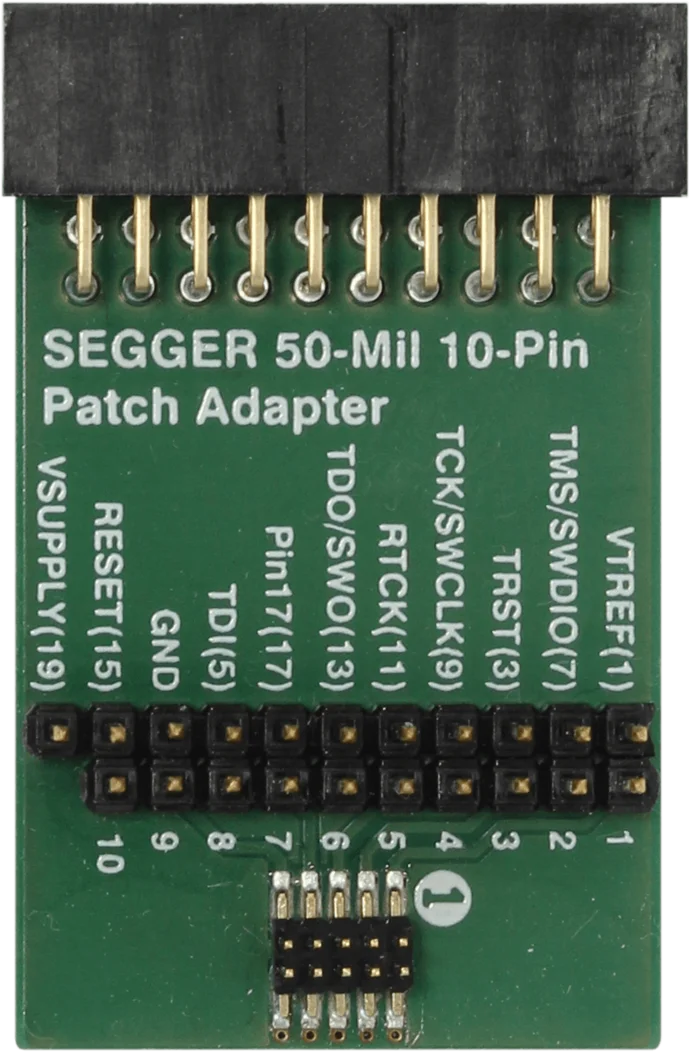

segger 50 mil 10 pin patch adapter

The 50-Mil 10-Pin Patch Adapter adapts from the standard 20 pin 0.1" connector to the standard 10-pin 0.05" Cortex-M connector that is also used on many non-Cortex-M designs but with non-standard pinout. This adapter allows custom connections/wiring between the 20-pin and 10-pin side.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
