RH850 Adapter

Seamless connectivity for Flasher

Connects Flasher directly to RH850 MCUs
Seamless interface
Reliable flashing

Buy now Compare Flasher adapters Documentation

Overview

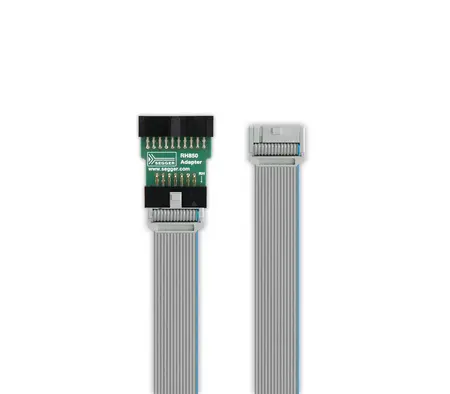

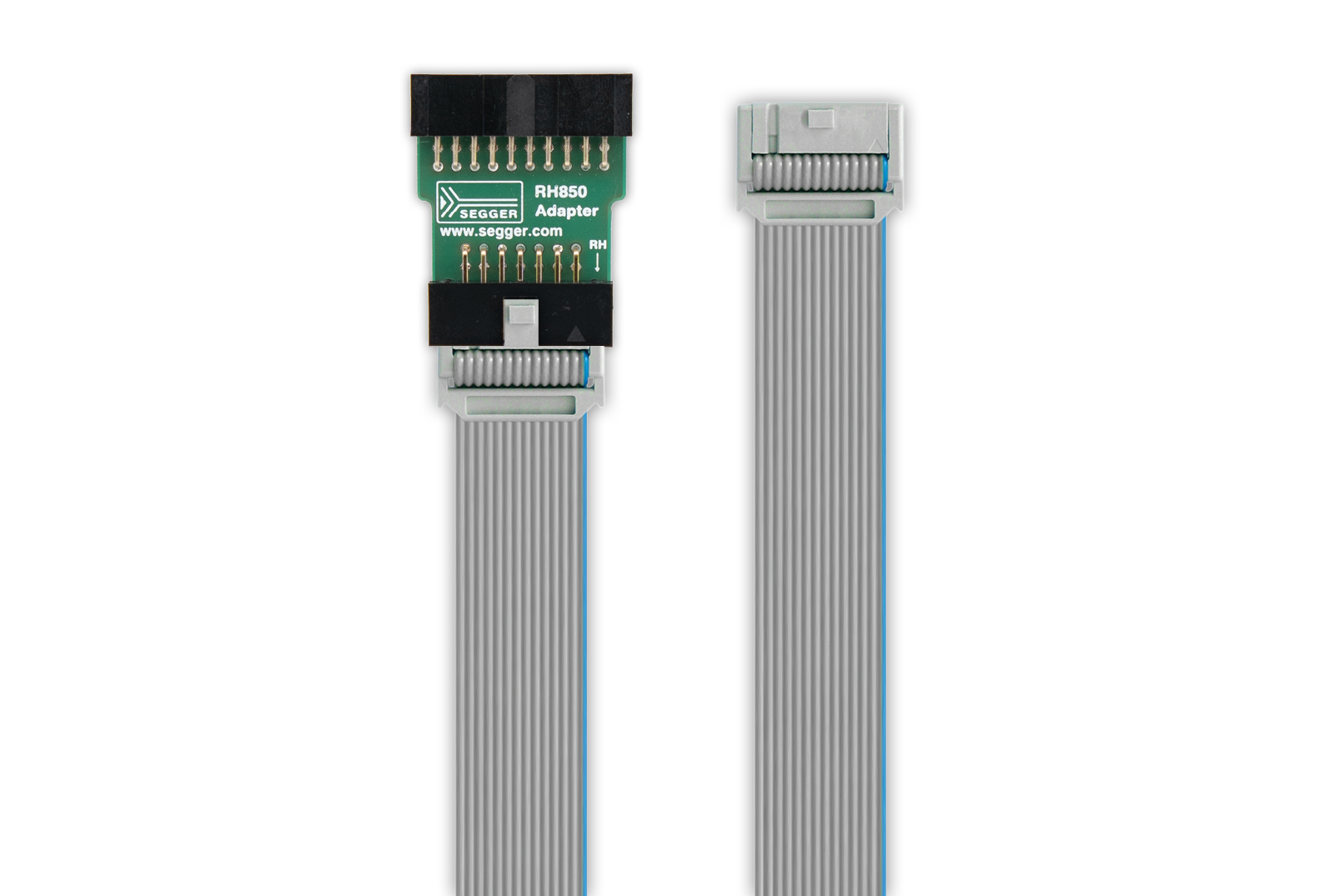

The RH850 Adapter enables connections between the .1" 20-pin standard connector of the Flasher and the 14-pin JTAG/UART/SPI connector found on the target hardware supplied with Renesas RH850 series MCUs.

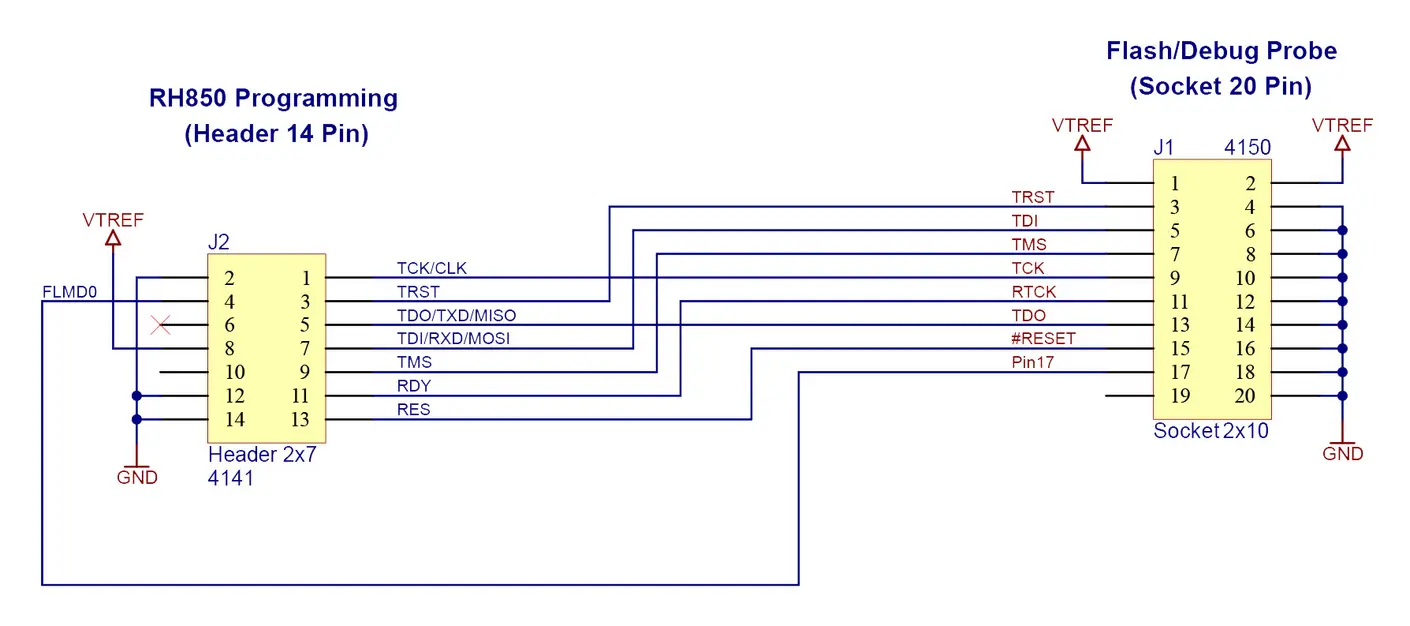

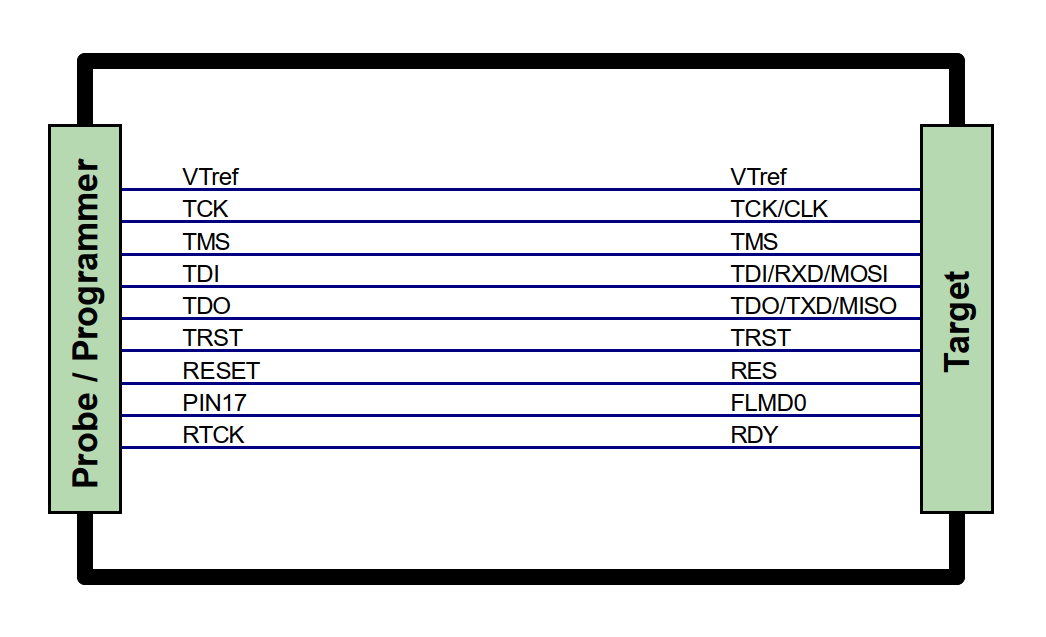

Pinout & schematics

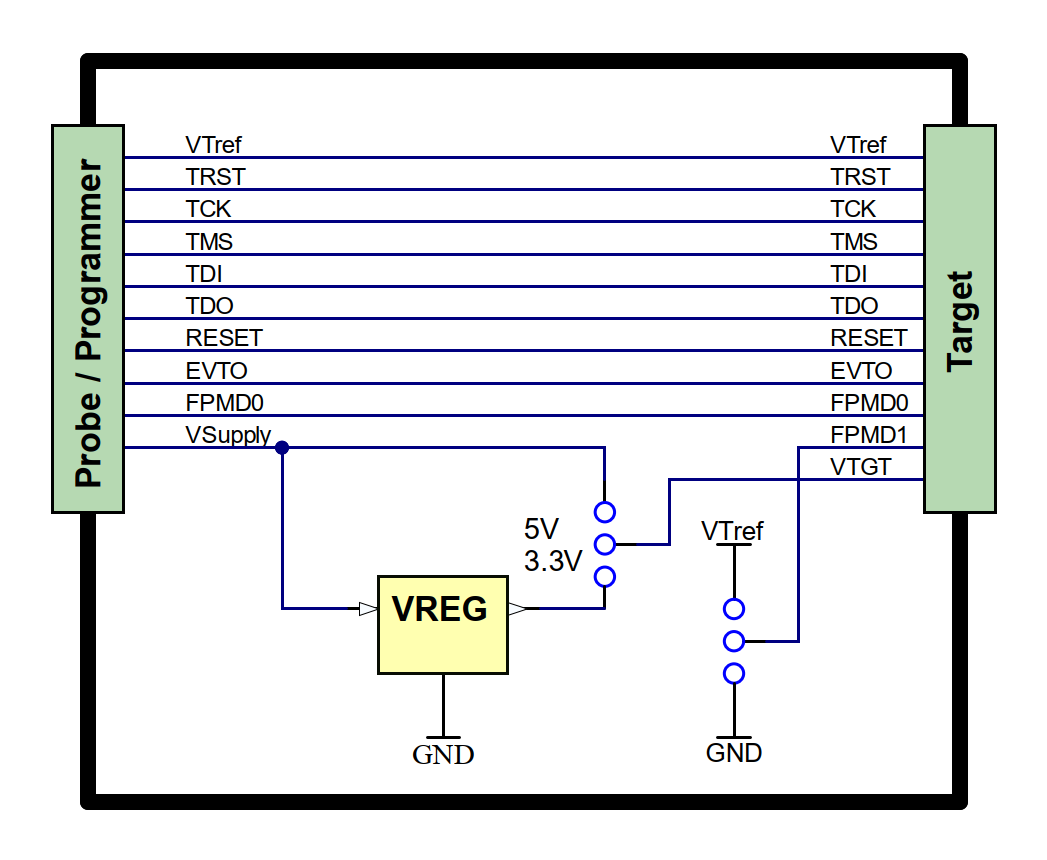

Schematic diagram showing connections between a probe/programmer and a target device. It includes labeled signal paths for VRef, TRST, TCK, TMS, TDI, TDO, RESET, EVTO, FPMD0, and supplies VREG with voltages of 5V and 3.3V. Ground connections are also indicated.
