Programming Voltage Adapter

The Programming Voltage Adapter can directly be inserted between the Flasher device and the debug cable and provides voltages to the target for programming targets with voltage requirements beyond 5 V.

Buy now

Overview

The Programming Voltage Adapter can be used to provide two dedicated voltages to a target: a programming voltage, and a target supply voltage. Both voltages are provided by an external power supply to a connector on the adapter and are controlled by one of SEGGER's Flasher devices. This adapter is especially useful for programming targets that do not feature low-voltage programming or for targets with a voltage requirement other than 5 V.

If the target needs a 5 V supply, a jumper on the adapter can be switched to use the 5 V from the Flasher device so only one external power supply is required (providing the programming voltage). Both channels accept a voltage in the range 4-20 V and can handle a maximum current of 500 mA.

The Programming Voltage Adapter has a standard 20-pin 0.1" socket towards the Flasher device and a standard 20-pin 0.1" header on the target side. It can directly be inserted between the Flasher and the debug cable maintaining a 1:1 connection of all debug signals except pin 17 which carries the programming voltage.

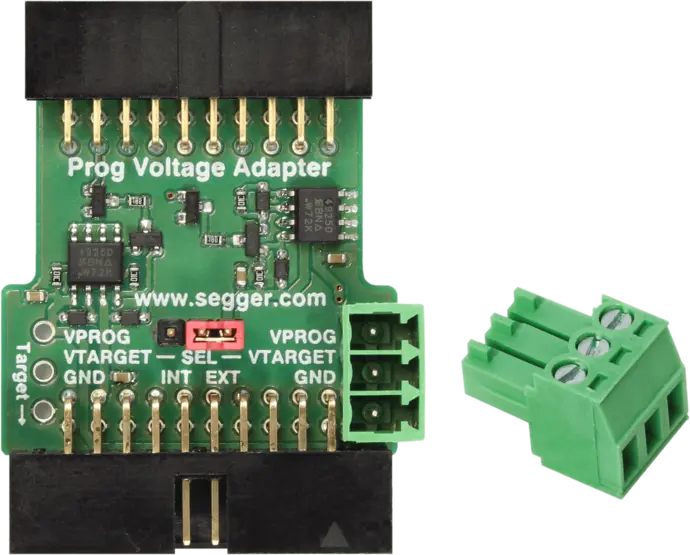

Programming Voltage Adapter
Programming Voltage Adapter

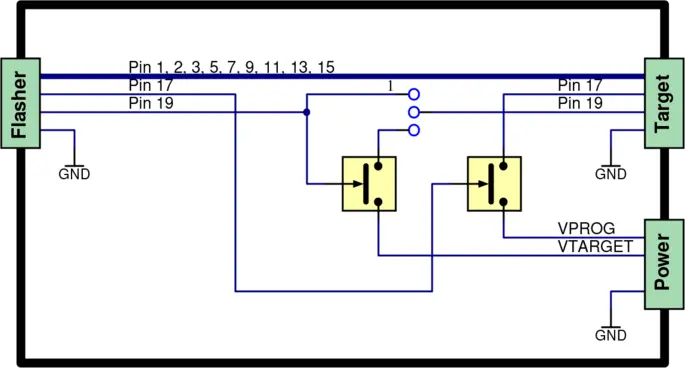

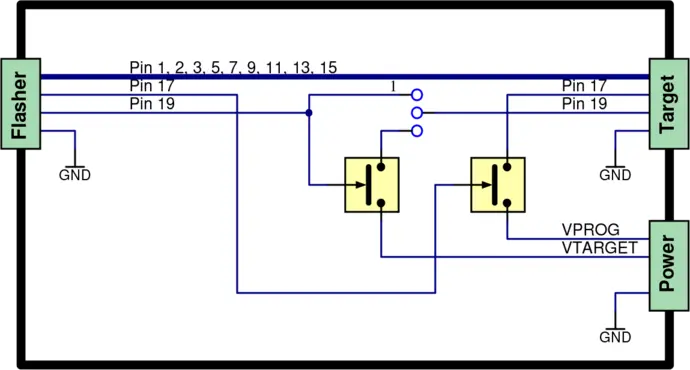

Programming Voltage Adapter Schematics
Programming Voltage Adapter Schematics
