Xilinx Adapter

Seamless connectivity for Flasher

  • Direct debug access to FPGA-based MCU cores
  • Compact connection for embedded development
  • Ideal for Zynq-based applications
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinout
  3. 3.Suitable products
    1. 3.1.Flasher
    2. 3.2.J-Link

Overview

J-Link Xilinx Adapter

The Xilinx Adapter connects to the 14-pin 2 mm Xilinx JTAG connector providing debug access to FPGA-based MCU cores like the Arm Cortex-A9 core in the Zynq devices.

Pinout

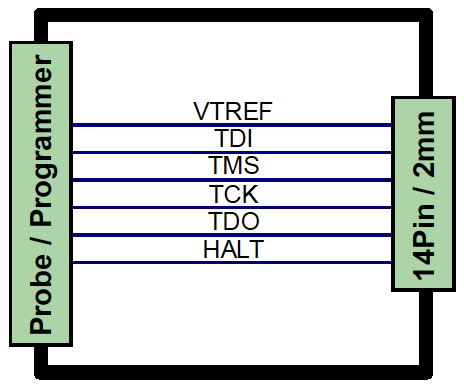

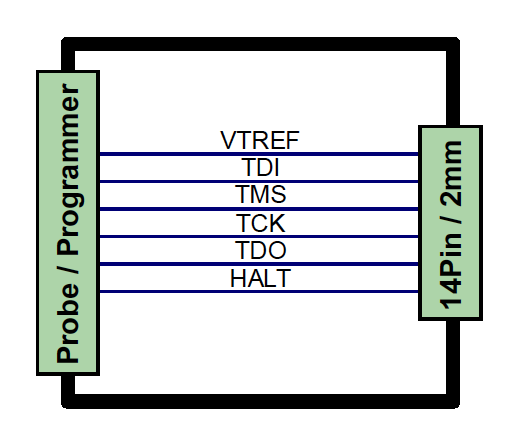

Diagram of a 14-pin connector interface for a probe or programmer, featuring labeled connections: VTREF, TDI, TMS, TCK, TDO, and HALT, arranged vertically in the center, with descriptions on the left and right sides.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
