TI-CTI-20 Adapter

Seamless connectivity for Flasher

  • Easy connection between J-Link/Flasher and TI evaluation boards
  • Secure orientation prevents incorrect connection
  • Convenient setup for TI MCU development
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinout & schematics
  3. 3.Suitable products
    1. 3.1.Flasher
    2. 3.2.J-Link

Overview

J-Link CTI20 Adapter

The TI-CTI-20 Adapter adapts from the standard 20-pin 0.1" target connector to TI CTI-20 connector. This adapter allows to connect J-Link or Flasher to eval boards with TI MCUs that are equipped with a TI CTI-20 connector, e.g. the AM335x evaluation module. As can be seen in the image below, the key on pin 6 ensures that the adapter can not be connected the wrong way.

Pinout & schematics

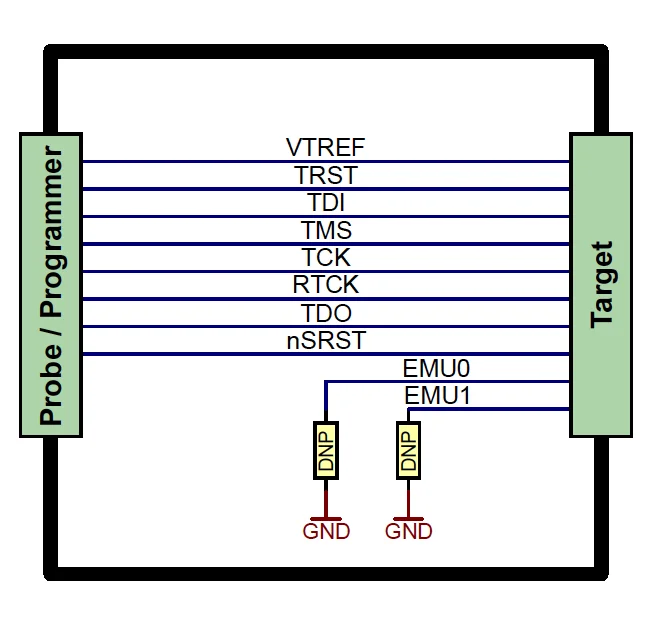

Schematic diagram showing connections between a probe/programmer and a target device. It includes pins labeled VTREF, TRST, TDI, TMS, TCK, RTCK, TDO, and nSRST, as well as EMU0 and EMU1, both connected to ground (GND).

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
