Flying Wire Adapter

Seamless connectivity for Flasher

Adapts 20-pin 0.1" headers to 10-pin flying wires.
Connects J-Link/Flasher directly to target boards.
Ideal for non-standard target pinouts.

Buy now Compare Flasher adapters Documentation

1.Overview
2.Schematics
3.Suitable products
1. 3.1.Flasher
2. 3.2.J-Link

Overview

The Flying Wire Adapter adapts from the standard 20 pin 0.1" connector to a 10-pin row, allowing to connect J-Link or Flasher to target PCBs via flying wires. It is especially useful when hooking up prototype HW where no final connector is decided yet. Or for manually connecting to ST Discovery boards.

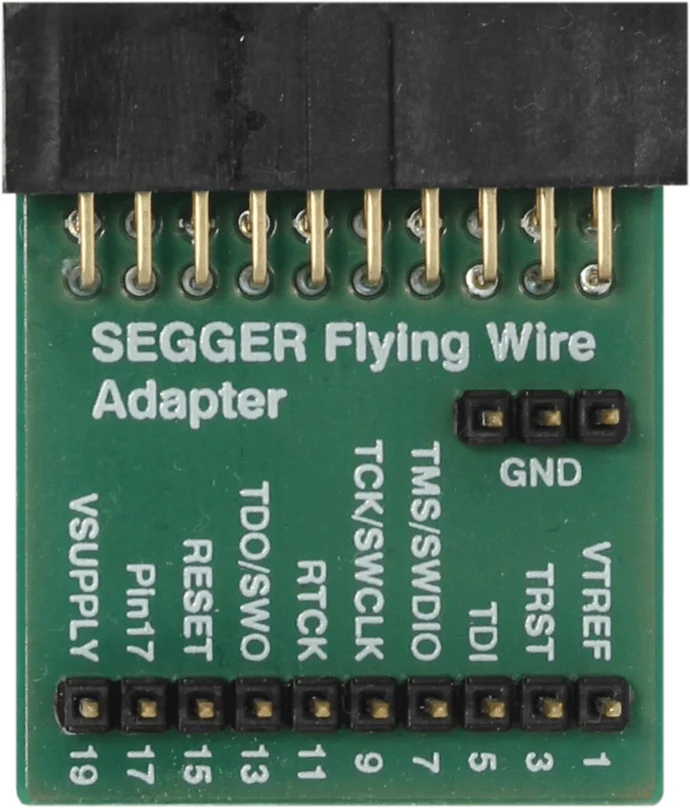

segger flying wire adapter

JumperWires

Schematics

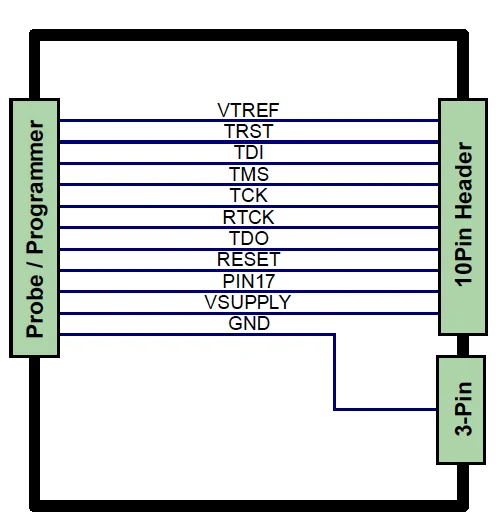

Schematic diagram illustrating connections for a programming probe. Includes labeled pins such as VTREF, TRST, TDI, TMS, TCK, RTCK, TDO, RESET, PIN17, VSUPPLY, and GND, with a 10-pin header and a 3-pin connector on either side.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link
