SEGGER Evaluation Software for ST STM324x9I-EVAL

  1. 1.Converting ST-LINK on-board into a J-Link
  2. 2.Recommended Software
  3. 3.Data Sheets
    1. 3.1.ST STM324x9I-EVAL
    2. 3.2.STM32F429NIH6
ST - stm324x9i

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed

emCrypt

PRO

emFile

BASE + Encryption, FAT, FAT LFN, Journaling, MMC/SD, NAND, RAMDisk

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, emNet driver for Freescale Kinetis K60/K70

emSecure

emSecure-RSA, emSecure-ECDSA

emSSH

Secure Shell software library

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Audio, Bulk, CDC, DFU, HID, MSD, MSD-CDROM, MTP, Printer Class, IP-over-USB component, VirtualMSD, Video, Target Driver for Freescale Kinetis K60/K70 HighSpeed (EHCI)

emUSB-Host

BASE + Bulk, CDC, FTDI UART, HID, MIDI, MSD, MTP, Printer Class, Freescale Kinetis FullSpeed Driver

emWeb

Web Server

emWin

BASE + AntiAliasing, Bitmap Converter, Font Converter, Memory Devices, Simulation, VNC Server, Widgets, Window Manager, GUIDRV_FlexColor

IoT Toolkit

HTTP Client, JSON Parser

Download SEGGER Evaluation Software for ST STM324x9-EVAL and SEGGER Embedded Studio

Other downloads

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Converting ST-LINK on-board into a J-Link

SEGGER offers a firmware upgrading the ST-LINK on-board on the Nucleo and Discovery Boards. This firmware makes the ST-LINK on-board compatible to J-Link OB, allowing users to take advantage of most J-Link features like the ultra fast flash download and debugging speed or the free-to-use GDBServer.

More information

J-Link ST-Link

Recommended Software

SEGGER Embedded Studio

SEGGER Embedded Studio is a streamlined and powerful C/C++ IDE (Integrated Development Environment) for ARM microcontrollers. It is specifically designed to provide users with everything needed for professional embedded development: an all-in-one solution providing stability and a continuous workflow.

More information

Download SEGGER Embedded Studio

SEGGER - Embedded Studio Product Icon

SEGGER SystemView

SEGGER SystemView is a real-time recording and visualization tool that reveals the true runtime behavior of an application, going far deeper than the insight provided by debuggers. This is particularly effective when developing and working with complex systems comprising multiple threads and interrupts: SystemView can ensure a system performs as designed, can track down inefficiencies, and show unintended interactions and resource conflicts.

More information

Download SEGGER SystemView

SEGGER - SystemView Product Icon

Data Sheets

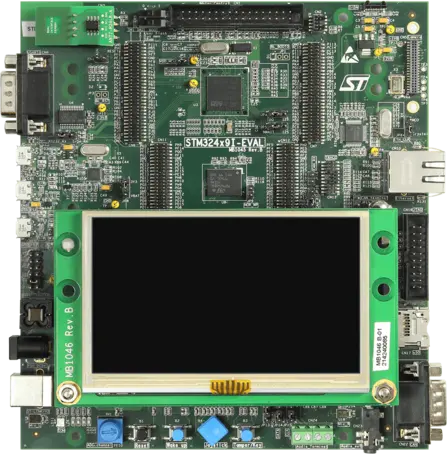

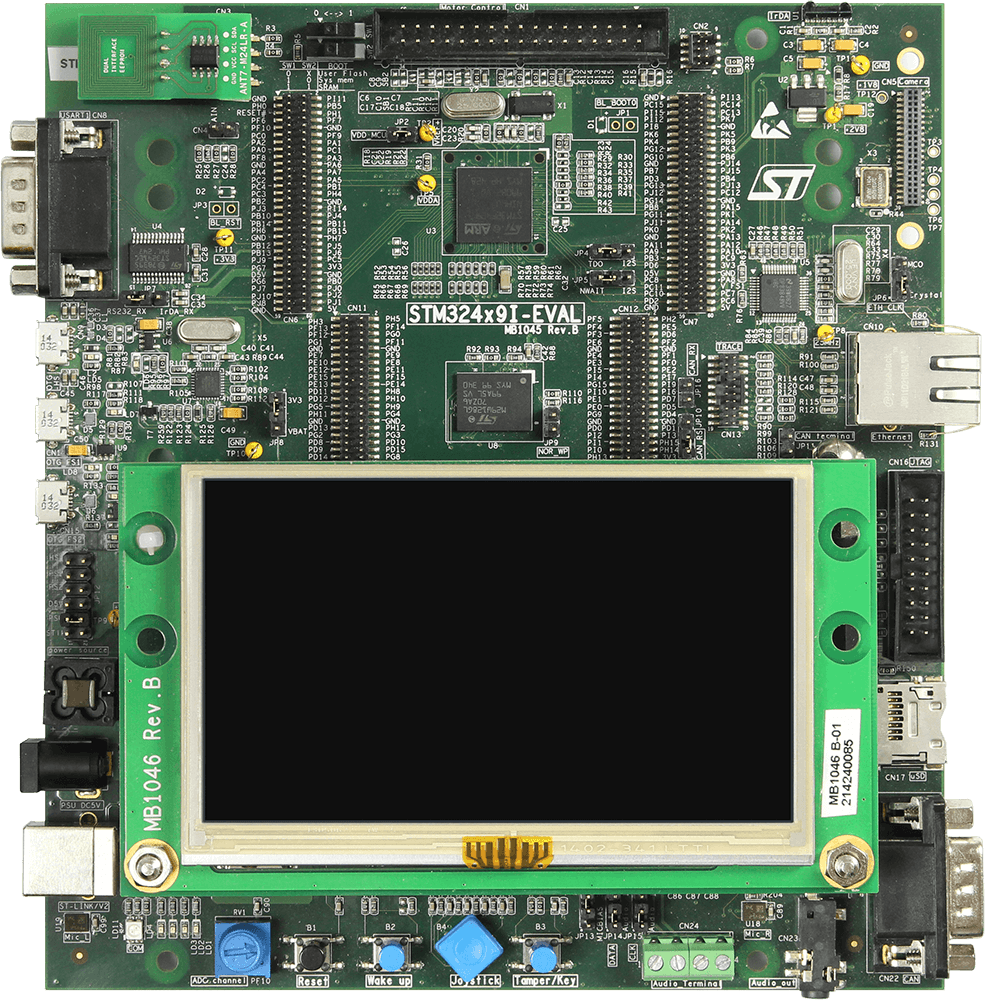

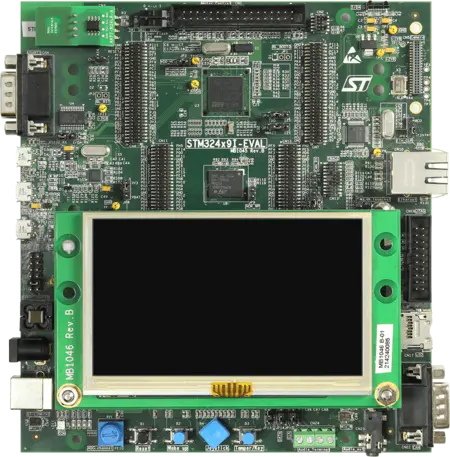

ST STM324x9I-EVAL

  • STM32F429NIH6 microcontroller
  • 4.3” color TFT LCD with resistive touchscreen (480 x 272 pixels)
  • SAI Audio DAC, stereo audio jack which supports headset with microphone
  • Stereo digital microphone, audio terminal connector used to connect external speakers
  • 2 GBytes (or more) SDIO interface MicroSD card
  • RF EEPROM on I2C compatible serial interface
  • RS-232 communication
  • IrDA transceiver
  • JTAG/SWD and ETM trace debug support
  • IEEE-802.3-2002 compliant Ethernet connector
  • Camera module
  • 8M x 32-bit SDRAM, 1M x 16-bit SRAM and 8M x 16-bit NOR Flash
  • Joystick with 4-directional control and selector
  • Reset, Wakeup and Tamper buttons
  • 4 color user LEDs
  • Extension connectors & memory connectors for daughterboard or wrapping board
  • USB OTG HS and FS with Micro-AB connectors
  • RTC with backup battery
  • CAN2.0A/B compliant connection
  • Potentiometer
  • Motor control connector

STM32F429NIH6

  • ARM 32-bit Cortex™-M4 CPU with FPU
  • 2 MB of Flash memory organized into two banks allowing read-while-write
  • 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
  • Flexible external memory controller with up to 32-bit data bus: SRAM,PSRAM,SDRAM, Compact Flash/NOR/NAND memories
  • LCD parallel interface, 8080/6800 modes
  • LCD-TFT controller up to SVGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
  • 3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleaved mode
  • 2×12-bit D/A converters
  • General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
  • Serial wire debug (SWD)& JTAG interfaces
  • Cortex-M4 Embedded Trace Macrocell™
  • 1 x SAI (serial audio interface)
  • 2 × CAN (2.0B Active) and SDIO interface
  • USB 2.0 full-speed device/host/OTG controller with on-chip PHY
  • USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
  • 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
  • 8- to 14-bit parallel camera interface up to 54 MBs/s
  • True random number generator
  • CRC calculation unit
  • 96-bit unique ID
  • RTC: subsecond accuracy, hardware calendar
