emUSB-Device Add-Ons – MTP Class
The Media Transfer Protocol (MTP) is a USB class protocol which can be used to transfer files to and from storage devices.
- Support for MTP events
- Storage driver for emFile included
- Works on Windows / Linux out of the box
- Small footprint
Typical Applications
- Digital camera
- MP3 player
- Smartphone
MTP is an official extension of the Picture Transfer Protocol (PTP) designed to allow digital cameras to exchange image files with a computer. MTP extends this by adding support for all types of files.
Additional Information
Check out our Wiki article on MTP: https://wiki.segger.com/MTP
Application Samples emUSB-Host MTP

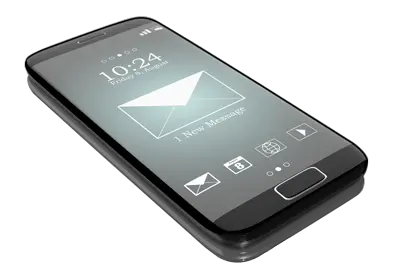

Smartphone
Camera
Mp3 player
MTP is an alternative to Mass Storage Device (MSD)
It operates on the file level in contrast to MSD which reads and writes sector data. This type of operation gives MTP some advantages over MSD:
- The cable can be safely removed during the data transfer without damaging the file system.
- The file system does not have to be FAT (EFS or any other proprietary file system can be used).
- The application has full control as to which files are visible to the user. Selected files or directories can be hidden.
- Virtual files can be presented.
- Host and target can access storage simultaneously without conflicts.
MTP is natively supported by Windows and Linux "out-of-the-box" and the installation of additional drivers is not required. macOS supports MTP only by using third party tools such as:
- Commander One Pro: https://mac.eltima.com/file-manager.html
- SyncMate ExpertEdition: https://mac.eltima.com/sync-mac.html
Getting Access to Files
An MTP device will be displayed under the "Portable Devices" section of the "Computer" window when connected to a PC running the Microsoft Windows operating system. On other operating systems which support MTP the data stored on MTP devices can be accessed similarly.

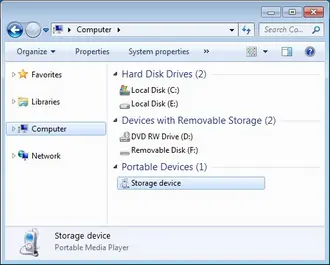

An MTP device will be displayed under the "Portable Devices" section of the "Computer" window when connected to a PC running Microsoft Windows 7 operating system.

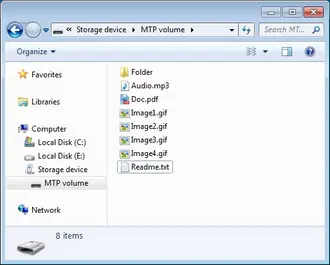

The files and directories stored on the device can be accessed in the usual way using the Windows Explorer.

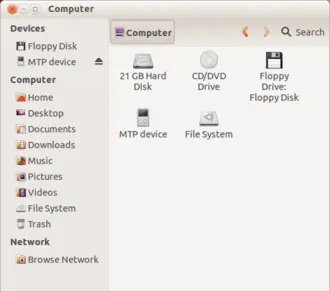

On the Ubuntu Linux operating system a connected MTP device is shown in the "Computer" window.

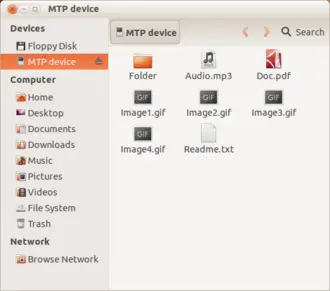

The files and directories present on the MTP device can be easily accessed via GUI.
Components
Components required to use MTP:
- emUSB MTP
- emUSB-Device core
- emUSB target driver
