SEGGER Evaluation Software for
ST STM32H743ZI-Nucleo

Other Downloads

Download   SEGGER Embedded Studio for ARM, Windows 64-bit version

Download   SEGGER Embedded Studio for ARM, Windows 32-bit version

Download   SEGGER Embedded Studio for ARM, macOS

Download   SEGGER Embedded Studio for ARM, Linux 64-bit version

Download   SEGGER Embedded Studio for ARM, Linux 32-bit version

Download   SEGGER Embedded Studio for ARM

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Converting ST-LINK on-board into a J-Link

SEGGER offers a firmware upgrading the ST-LINK on-board on the Nucleo and Discovery Boards. This firmware makes the ST-LINK on-board compatible to J-Link OB, allowing users to take advantage of most J-Link features like the ultra fast flash download and debugging speed or the free-to-use GDBServer.

Recommended Software

SEGGER Embedded Studio

SEGGER Embedded Studio is a streamlined and powerful C/C++ IDE (Integrated Development Environment) for ARM microcontrollers. It is specifically designed to provide users with everything needed for professional embedded development: an all-in-one solution providing stability and a continuous workflow.


SEGGER SystemView

SEGGER SystemView is a real-time recording and visualization tool that reveals the true runtime behavior of an application, going far deeper than the insight provided by debuggers. This is particularly effective when developing and working with complex systems comprising multiple threads and interrupts: SystemView can ensure a system performs as designed, can track down inefficiencies, and show unintended interactions and resource conflicts.

Data Sheets

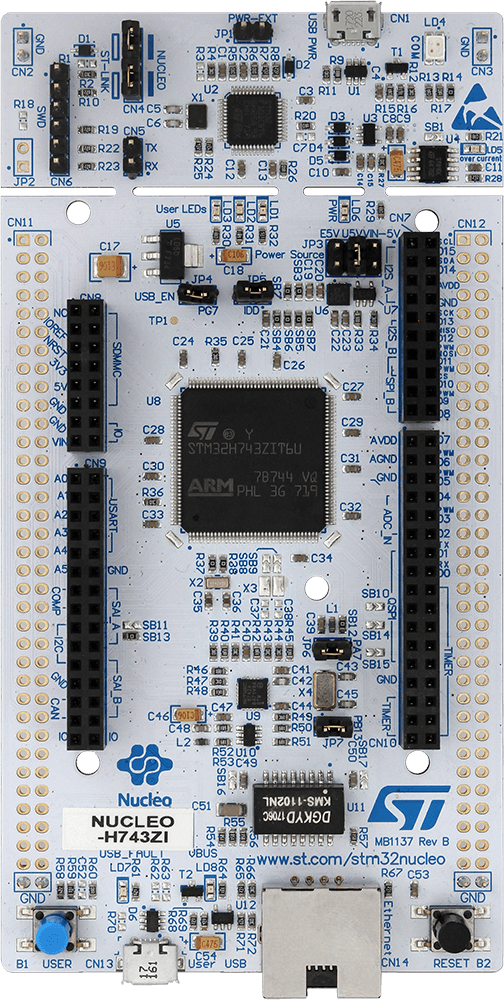

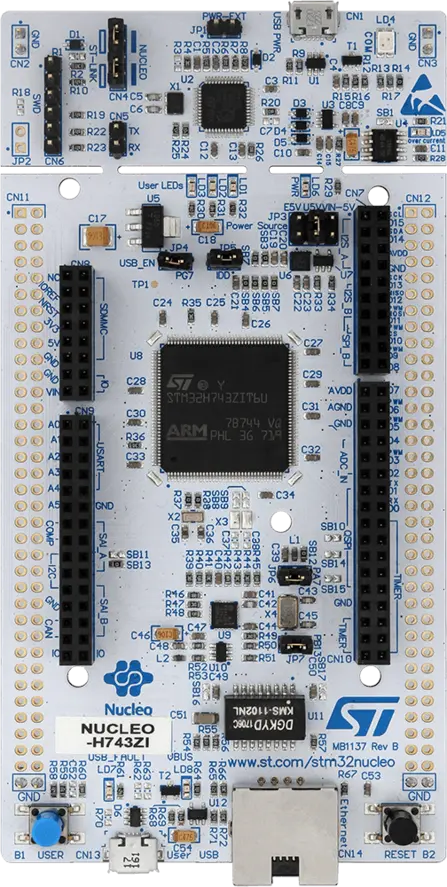

ST STM32H743ZI-Nucleo

  • STM32 microcontroller in LQFP144 package
  • External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards)
  • Ethernet compliant with IEEE-802.3-2002 (depending on STM32 support)
  • USB OTG or full-speed device (depending on STM32 support)
  • 3 user LEDs
  • 2 user and reset push-buttons
  • 32.768 kHz crystal oscillator
  • USB with Micro-AB
  • SWD
  • Ethernet RJ45 (depending on STM32 support)
  • ST Zio connector including Arduino™ Uno V3
  • ST morpho
  • Flexible power-supply options: ST-LINK USB VBUS or external sources

STM32H743ZI

  • 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache
  • 2 Mbytes of Flash memory with read-while-write support
  • 1 Mbyte of RAM
  • Dual mode Quad-SPI memory interface running up to 133 MHz
  • Flexible external memory controller
  • CRC calculation unit
  • Low-power consumption
  • 4 DMA controllers to unload the CPU
  • 4 I2Cs FM+ interfaces (SMBus/PMBus)
  • 4 USARTs
  • 4 UARTs
  • 6 SPIs
  • SWPMI single-wire protocol master I/F
  • MDIO Slave interface
  • 2 SD/SDIO/MMC interfaces (up to 125 MHz)
  • 2 CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)
  • 2 USB OTG interfaces (1FS, 1HS/FS) crystal-less solution with LPM and BCD
  • Ethernet MAC interface with DMA controller
  • HDMI-CEC
  • 8- to 14-bit camera interface (up to 80 MHz)
  • LCD-TFT controller up to XGA resolution
  • Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
  • Hardware JPEG Codec
  • Up to 22 timers and watchdogs
  • SWD & JTAG interfaces
  • 4-Kbyte Embedded Trace Buffer
