SEGGER Evaluation Software for Microchip SAM9X75 Curiosity LAN Kit

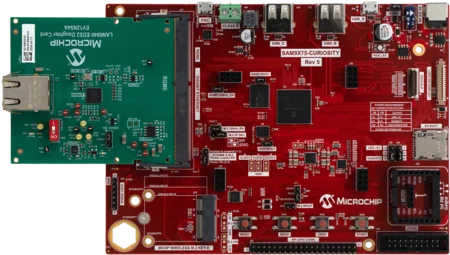

A printed circuit board featuring a red base labeled "SAM9X75-CURIOSITY Rev 5" with various components, including USB ports and connection headers. An attached green board labeled "MICROCHIP" houses an Ethernet port. The layout includes different markings and indicators for connectivity and power.

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS
embOSCore + Profiling
emCompressemCompress-Embed, emCompress-ToGo
emCryptPRO
emFileBASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, SD/SDHC/SDXC/MMC, NOR, NAND
emModbusMaster + Slave
emNetBASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, NTP Client, SMTP Client, SNMP Agent, SNMP Agent SNMPv3 USM, SNTP Client, UPnP, WebSocket, emNet CADENCE
emSecureemSecure-RSA, emSecure-ECDSA
emSSHSecure Shell software library, Secure Copy
emSSLSecure Sockets Layer
emUSB-DeviceBASE + Audio, Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Video, emUSB-Device target driver Microchip SAMA5D2x, SAMA5D3x, SAMA5D4x
emUSB-HostBASE + Audio, Bulk, CCID, CDC, FTDI UART, HID, LAN, MIDI, MSD, MTP, Printer Class, emUSB-Host Microchip SAM9X75 OHCI Full Speed driver
emWebWeb Server
emWinBASE + AntiAliasing, Bitmap Converter, Font Converter, Memory Devices, Simulation, VNC Server, Widgets, Window Manager, GUIDRV_Lin
IoT ToolkitHTTP Client, JSON Parser

Download SEGGER Evaluation Software for Microchip SAM9X75 Curiosity LAN Kit

Other downloads

DownloadEmbedded Studio

Data Sheets

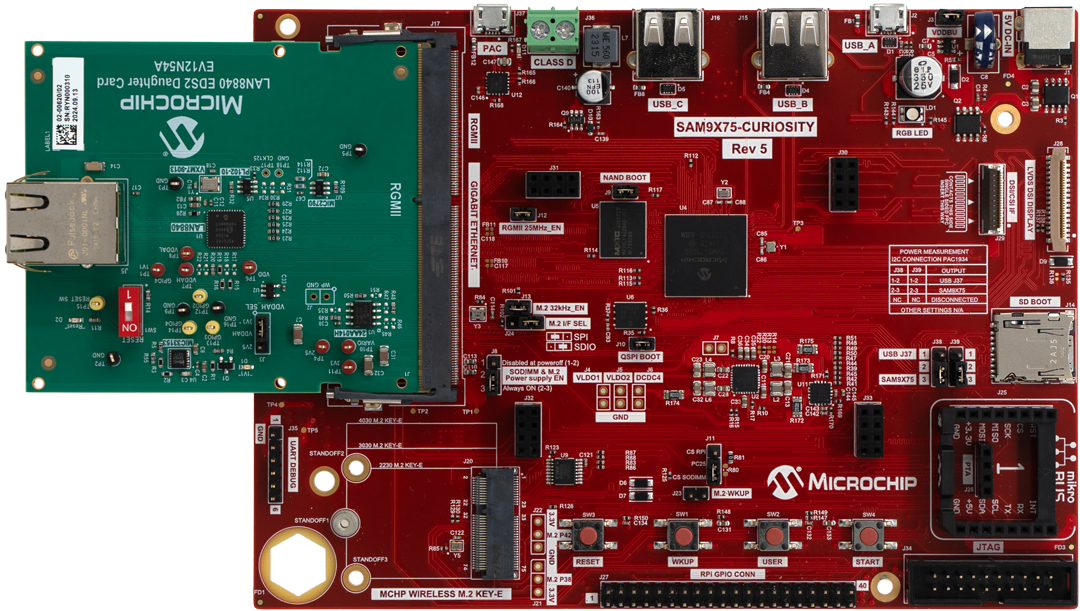

Microchip SAM9X75 Curiosity LAN Kit

  • One mechanical reset button
  • One power switch button
  • Two mechanical user pushbuttons
  • Three user LEDs (Red, Green, Blue)
  • 32.768kHz crystal
  • 256MB DDR3L
  • 512MB NAND Flash
  • 8MB QSPI Flash
  • Gigabit Ethernet interface through SODIMM 260-pin connector
  • microSD card interface
  • M.2 Key E connector/radio module interface
  • LVDS connector
  • MIPI camera connector
  • Debug UART interface
  • External debugger connector
  • USB interface, device and host mode
  • External power input (5V)
  • USB powered

SAM9X75

  • ARM® Arm926EJ-S running up to 800MHz
  • 64-Kbyte internal SRAM (SRAM0), single cycle access at system speed
  • 32-Kbyte data cache, 32-Kbyte instruction cache
  • Memory Management Unit (MMU)
  • Cryptography Accelerator (AES/TDES/SHA/TRNG)
