    SEGGER Evaluation Software for NXP LPCXpresso OM13098

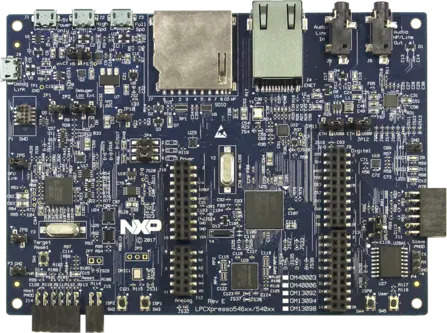

    NXP LPCXpresso OM13089 evaluation board

    SEGGER Evaluation Software

    Included components:

    ProductSupported features
    emPower OS

    embOS

    Core + Profiling

    emCompress

    emCompress-Embed, emCompress-ToGo

    emCrypt

    PRO

    emFile

    BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, SD/SDHC/SDXC/MMC, NOR

    emModbus

    Master + Slave

    emNet

    BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, emNet Synopsys driver

    emSecure

    emSecure-RSA, emSecure-ECDSA

    emSSH

    Secure Shell software library, Secure Copy

    emSSL

    Secure Sockets Layer

    emUSB-Device

    BASE + Audio, Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Video, Target Driver for NXP LPC546xx, LPC540xx, LPC5411x, LPC55xxx, LPC51xxx)

    emUSB-Host

    BASE + Audio, Bulk, CCID, CDC, FTDI UART, HID, LAN, MIDI, MSD, MTP, Printer Class, emUSB Host high speed driver for LPC546xx, LPC540xx, LPC55S6x host controllers

    emWeb

    Web Server

    IoT Toolkit

    HTTP Client, JSON Parser

    Download SEGGER Evaluation Software for NXP LPCXpresso OM13098 and SEGGER Embedded Studio

    Other downloads

    Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

    DownloadEmbedded Studio

    SEGGER Notifications

    Subscribe to SEGGER Evaluation Software Notifications

    Data Sheets

    NXP LPCXpresso OM13098

    • LPC54628 Arm® Cortex® - M4, running at up to 220 MHz
    • Built-in power consumption measurement for target LPC546xx MCU
    • 272x480 color LCD with a capacitive touchscreen
    • High-speed USB
    • Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
    • UART and SPI port bridging from LPC546xx target to USB via the onboard debug probe
    • Support for external debug probe
    • High and full speed USB ports with micro A/B connector for host or device functionality
    • 10/100Mbps Ethernet (RJ45 connector)
    • Multiple Expansion options, including Arduino® UNO and PMod
    • Winbond 128 Mb W25Q128JVFIM Quad-SPI flash
    • Winbond 128 Mb W9812G6JB-6I SDRAM
    • Full-size SD/MMC card slot
    • 3 x user LEDs
    • Plus reset
    • ISP (3)
    • User buttons
    • NXP MMA8652FCR1 accelerometer
    • Knowles SPH0641LM4H digital microphone
    • Stereo audio codec with line in/out

    NXP LPC546xx MCU

    • LPC54628ET512 Arm Cortex-M4 running at up to 220MHz
    • 512 KB Flash
    • 200 KB SRAM
    • Flexible internal and external memory configurations
