SEGGER Evaluation Software for Atmel SAMV71 Xplained Ultra

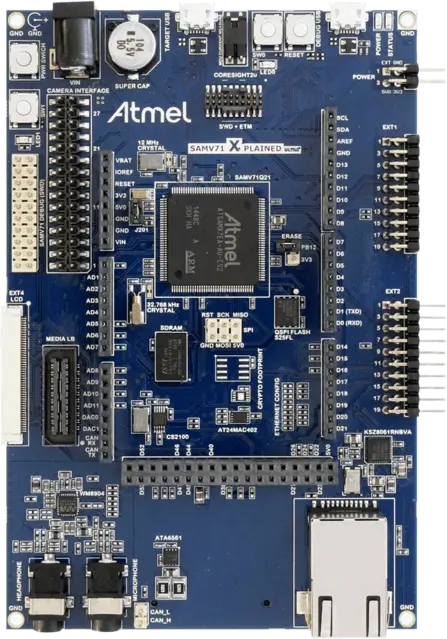

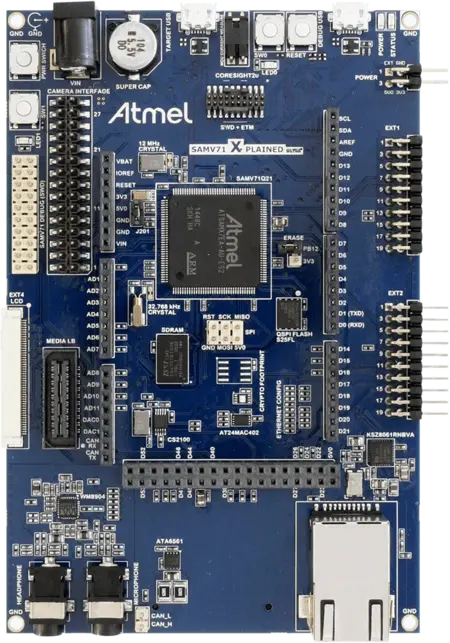

Microchip - Atmel samv71 Xplained Ultra

Other Downloads

Download   embOS trial for Cortex-M and SEGGER Embedded Studio

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets


  • One mechanical reset button
  • One power switch button
  • Two mechanical user pushbuttons
  • Two yellow user LEDs
  • Supercap backup
  • 12.0MHz crystal
  • 32.768kHz crystal
  • 2MB QSPI Flash
  • Built in Ethernet MAC with external IEEE 802.3az 10Base-T/100Base-TX Ethernet RMII PHY
  • AT24MAC402 256KB EEPROM with EUI-48 address
  • ATA6561 CAN Transceiver
  • SD Card connector with SDIO support
  • Camera interface connector
  • MediaLB connector
  • Two Xplained Pro extension headers
  • One Xplained Pro LCD header
  • CoreSight 20 connector for 4-bit ETM
  • Arduino Due based shield connectors
  • External debugger connector
  • USB interface, device and host mode
  • External power input (5-14V)
  • USB powered


  • ARM® Cortex®-M7 running up to 300MHz
  • 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
  • Single- and double-precision HW Floating Point Unit (FPU)
  • Memory Protection Unit (MPU) with 16 zones
  • DSP Instructions, Thumb®-2 Instruction Set
  • Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
