MIPI-60 Adapter
Overview

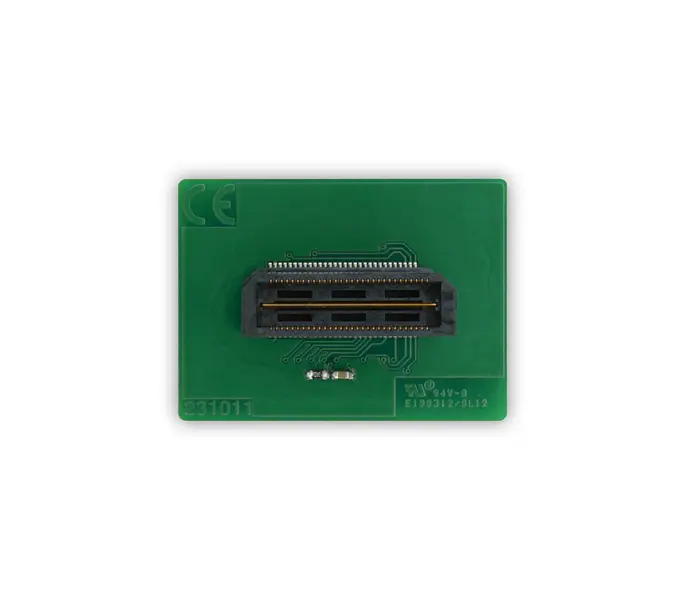

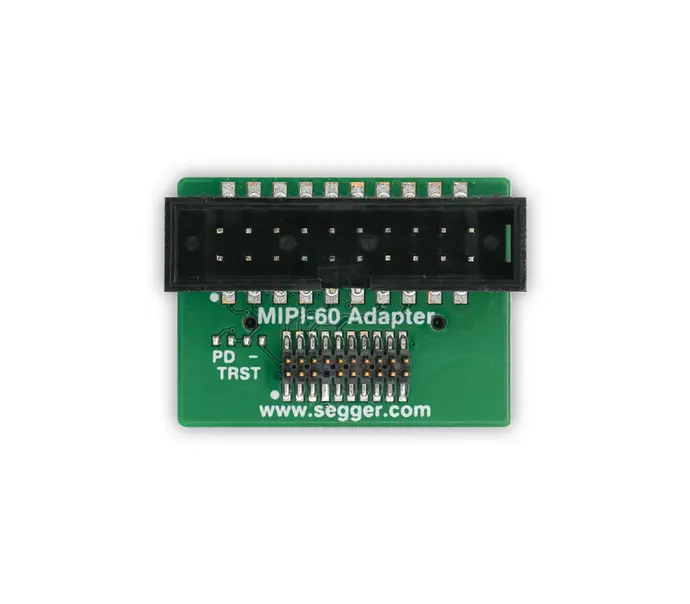

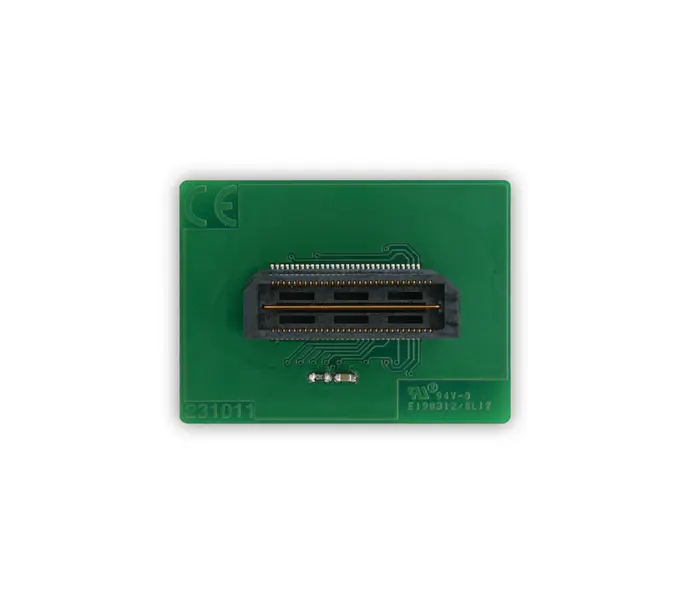

The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.
| Pin | Signal |
|---|---|
| 1 | VTREF |
| 2 | TMS |
| 3 | TCK |
| 4 | TDO |
| 5 | TDI |
| 6 | RESET |
| 7 | RTCK |
| 8 | TRST PD |
| 9 | TRST |
| 10 | Not connected |
| 11 | Not connected |
| 12 | VTREF |
| 13 | TRC CLK |
| 14 | Not connected |
| 15 | GND |
| 16 | GND |
| 17 | TRC CTL |
| 18 | Not connected |
| 19 | TRC DAT0 |
| 20 | Not connected |
| 21 | TRC DAT1 |
| 22 | Not connected |
| 23 | TRC DAT2 |
| 24 | Not connected |
| 25 | TRC DAT3 |
| 26 - 56 | Not connected |
| 57 | GND |
| 58 | GND |
| 59 | Not connected |
| 60 | Not connected |
