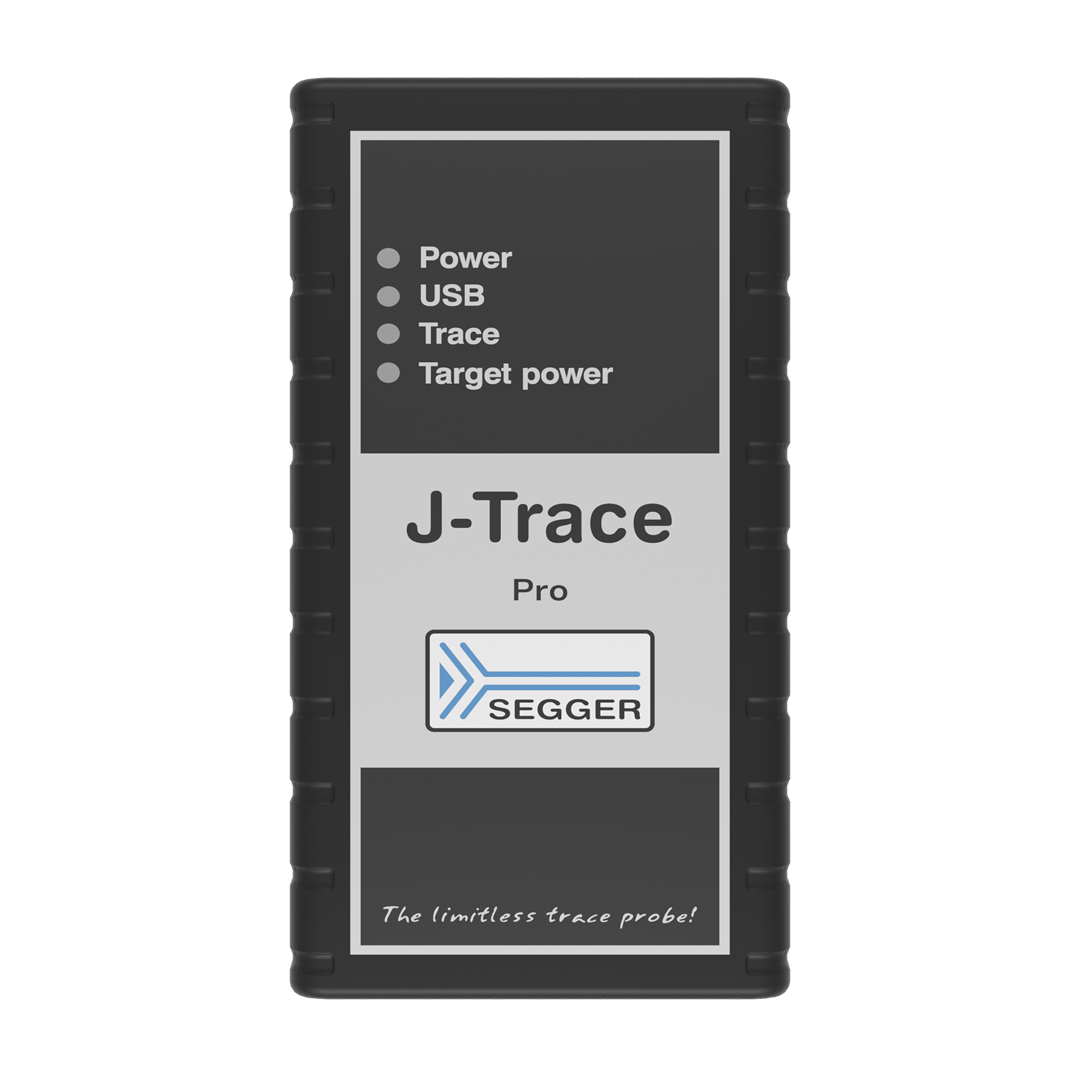

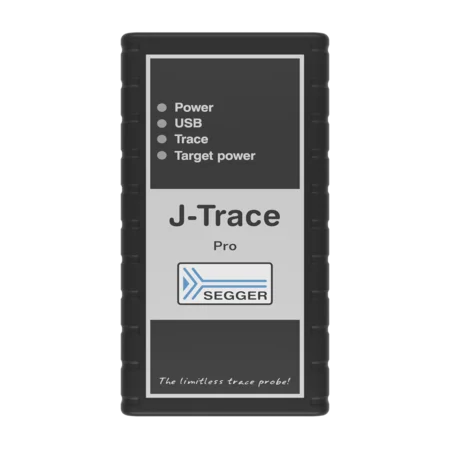

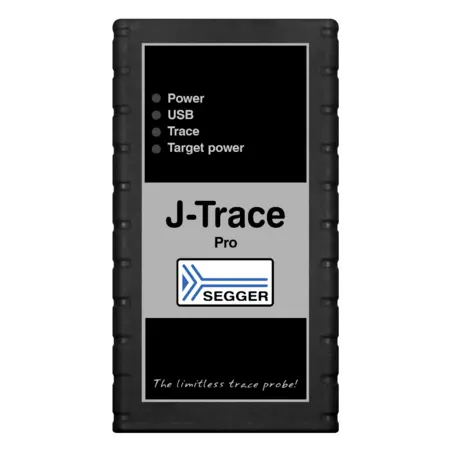

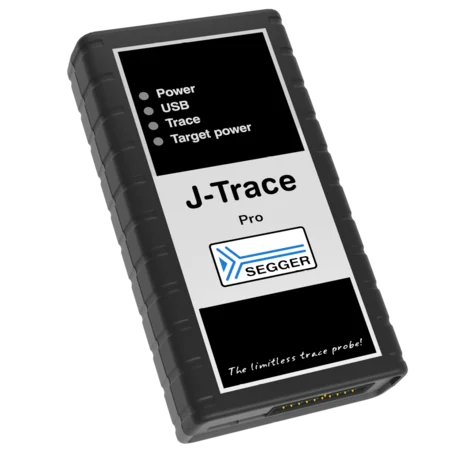

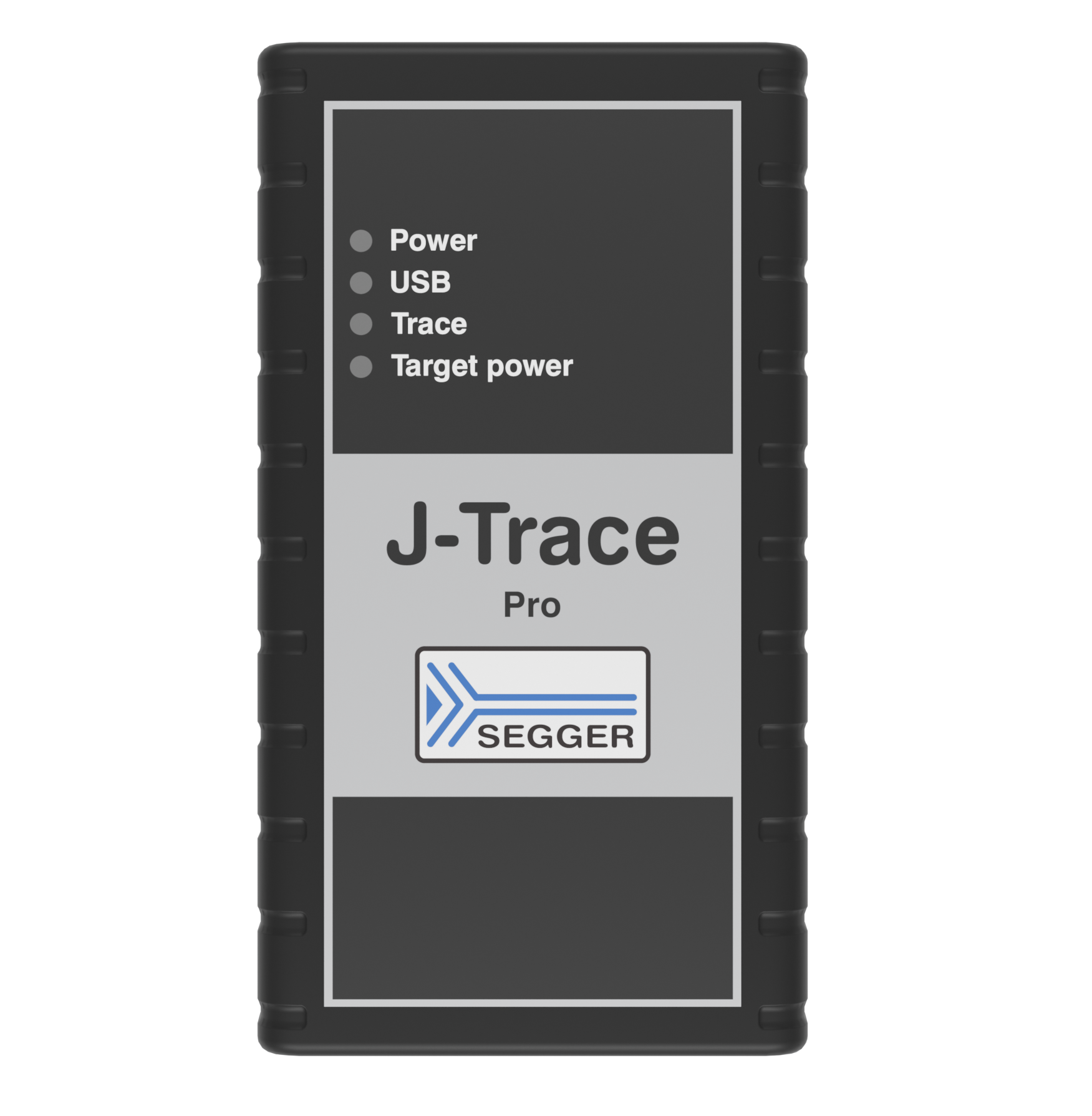

SEGGER's J-Trace PRO captures complete instruction traces over unlimited periods of time with no limit set on the amount of trace data — thereby enabling the recording of infrequent, hard-to-reproduce bugs. This is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. This gives developers all the insight they need to develop and optimize code.
Features include unlimited Live Code Coverage (so engineers have visibility over which parts of the application code have been executed) and Live Code Profiling (providing visibility as to which instructions have been executed and how often, so hotspots can be addressed and optimization opportunities identified). The SuperSpeed USB 3.0 interface of J-Trace PRO enables continuous streaming strace via USB with the full trace clock.
J-Trace PRO offers multi-platform support (Windows, macOS, Linux), up to 4 MB/s download speed, and comes with Ethernet interfaces. It ships with every feature enabled, including Unlimited Flash Breakpoints and real-time analysis with the Ozone debugger and performance analyzer, at no additional cost.

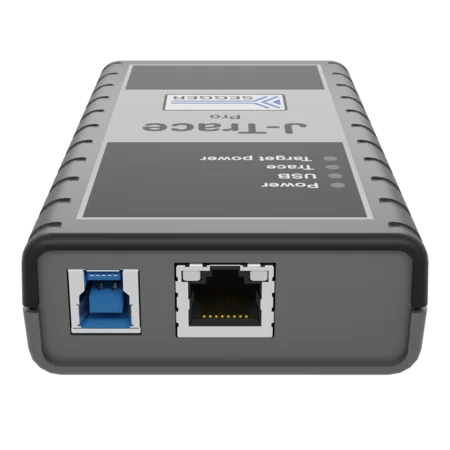

- Streaming trace probe with SuperSpeed USB3.0 interface and Gigabit Ethernet
- Download speed up to 4 MB/s
- Unlimited breakpoints in flash memory (Unlimited Flash Breakpoints)
- Use with Ozone and J-Flash
- Real-time streaming at full System Clock
- Fine-tune applications with Live Code Profiling
- Instruction-level code coverage to satisfy regulatory requirements
- Unlimited trace to isolate & identify hidden code defects
- Supports all popular devices (Arm, RISC-V, Microchip PIC32, Renesas RX, SiLabs 8051, Cadence Tensilica)
- Full J-Link debug functionality
All software is included free of charge.
For every J-Trace PRO, the J-Link Software and Documentation Package is available here:
As a multi-platform solution, J-Trace PRO comes with the setup and control software for Linux, macOS and Windows. Software and firmware updates are included. Similarly, use on all currently supported target devices, and any that will be added, is also included.
Ozone is a full-featured graphical debugger for embedded applications. It includes all well-known debug controls and information windows, and enables the best performance of J-Link debug probes and J-Trace trace probes. With Ozone it is possible to debug any embedded application on C/C++ source and assembly level. The Ozone Trace Tutorial allows developers to test the streaming and live analysis features of J-Trace PRO.
With streaming trace data users get deep insights into any application running on the target device whilst offering additional, powerful debug strategies to apply. It enables a far-reaching, yet complete, analysis of such issues, offering fast and efficient data analysis, ensuring higher productivity and also lowering development risks and costs.

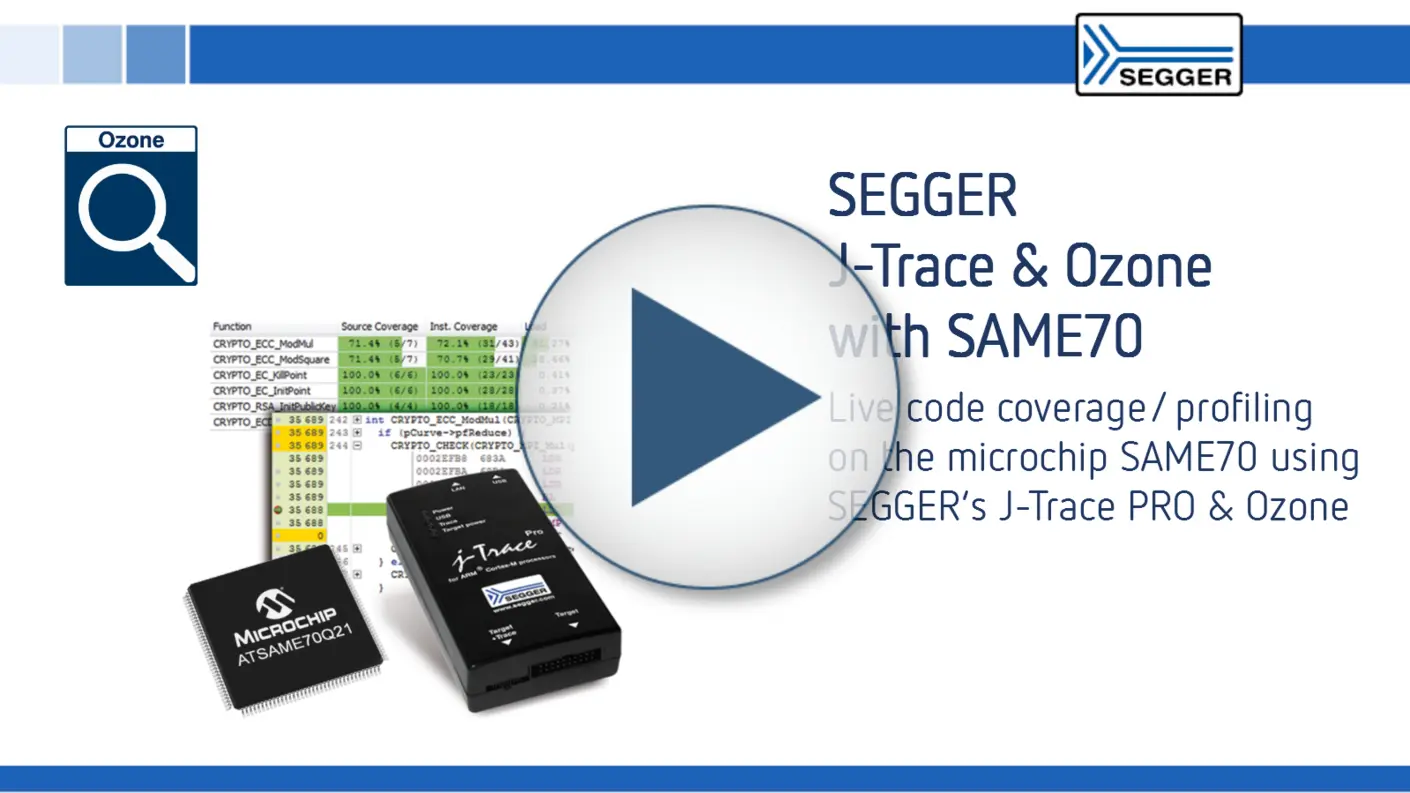

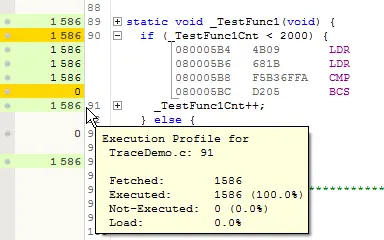

Code profiling details which instructions have been executed and how often. Users can address application runtime hotspots and identify opportunities to optimize them. It is all about measuring the execution time and frequency of functions, blocks and instructions and highlighting where computing time is spent. These profiles can later be exported using a tool like the Ozone debugger, for documentation and analysis purposes.

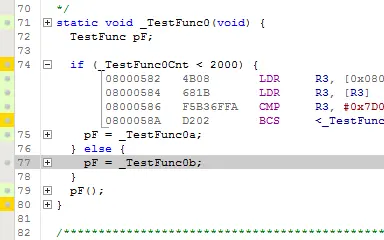

Through Live Code Coverage, engineers gain fully accurate information about how much of a source line, block, function, or file has been executed on a target application. It is this information that makes it possible to detect code that hasn’t been covered by tests — even code that may be unreachable. This enables a fast and efficient way to improve the code or to create a suitable test suite for uncovered blocks.

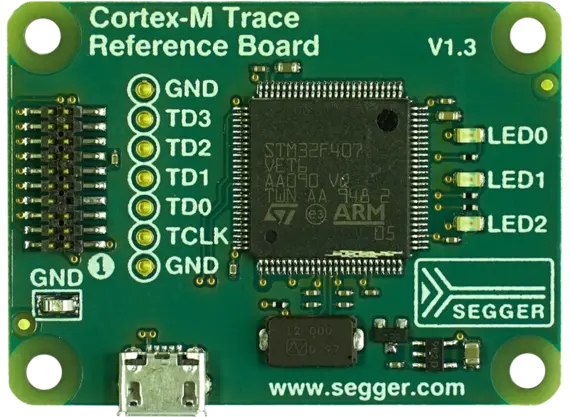

Trace reference boards are optimal for simple and portable trace demos. These boards allow testing and verification of trace setups within minutes. They can also be used as a reference for custom hardware projects as the trace reference boards are optimized for best trace signal quality.
All trace reference boards come with an example project that runs out-of-the-box. For easy setup the boards can be powered using a J-Trace PRO V2 or later.
|Microsoft Windows (x86/x64), Linux (x86/x64/Arm), macOS (x86/Apple M1)
|Electromagnetic compatibility (EMC)
|EN 55022, EN 55024
|+5°C ... +60°C
|-20°C ... +65 °C
|Relative humidity (non-condensing)
|Max. 90% rH
|Size (without cables)
|123mm x 68mm x 30mm
|Weight (without cables)
|(without cables) 120g

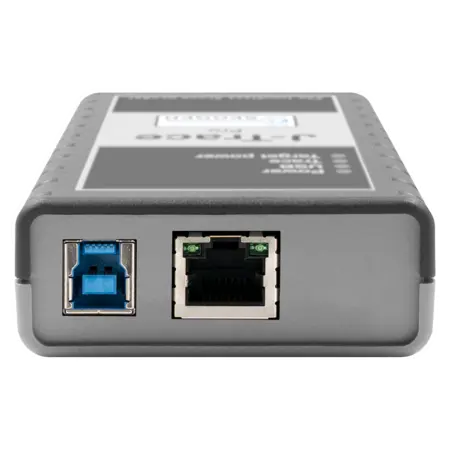

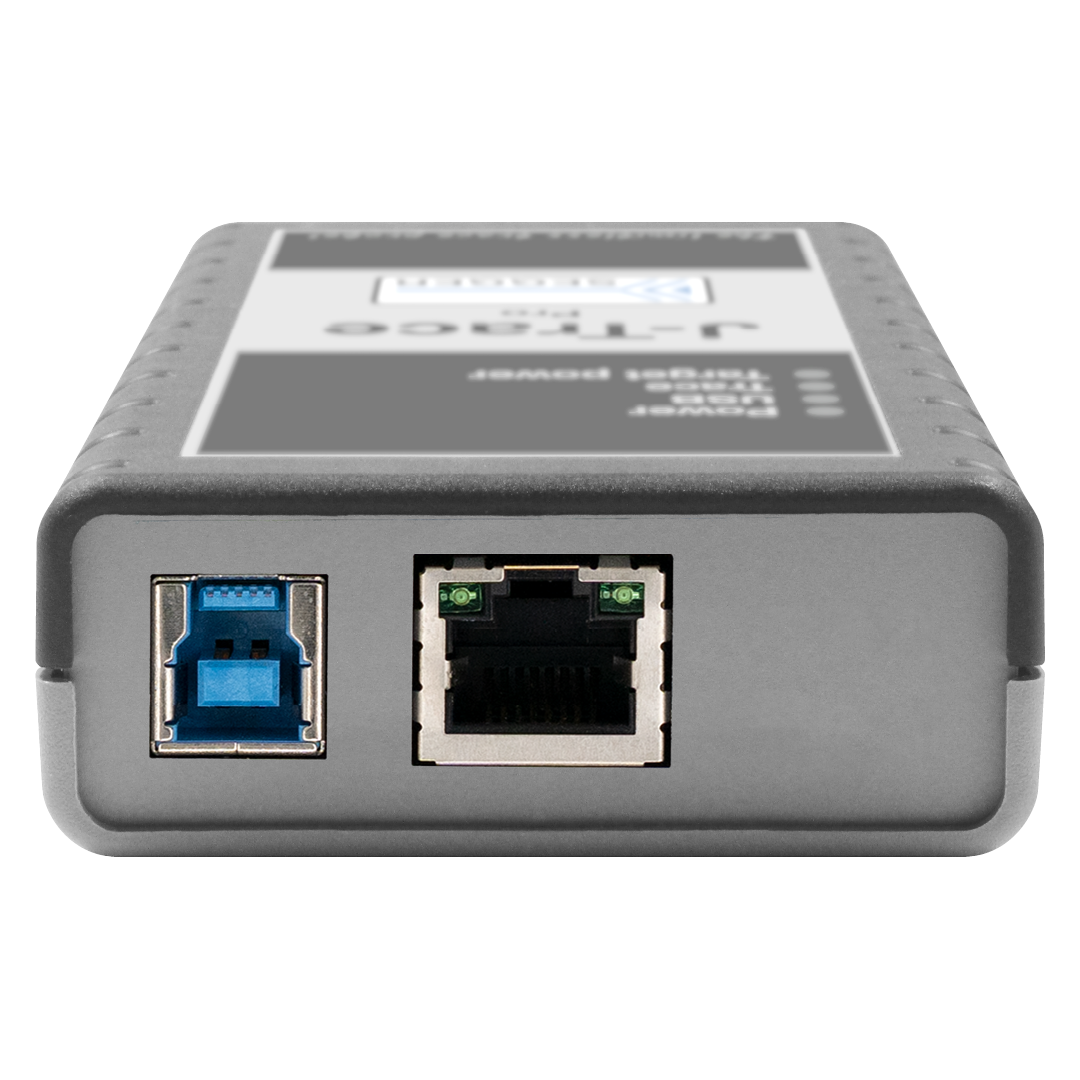

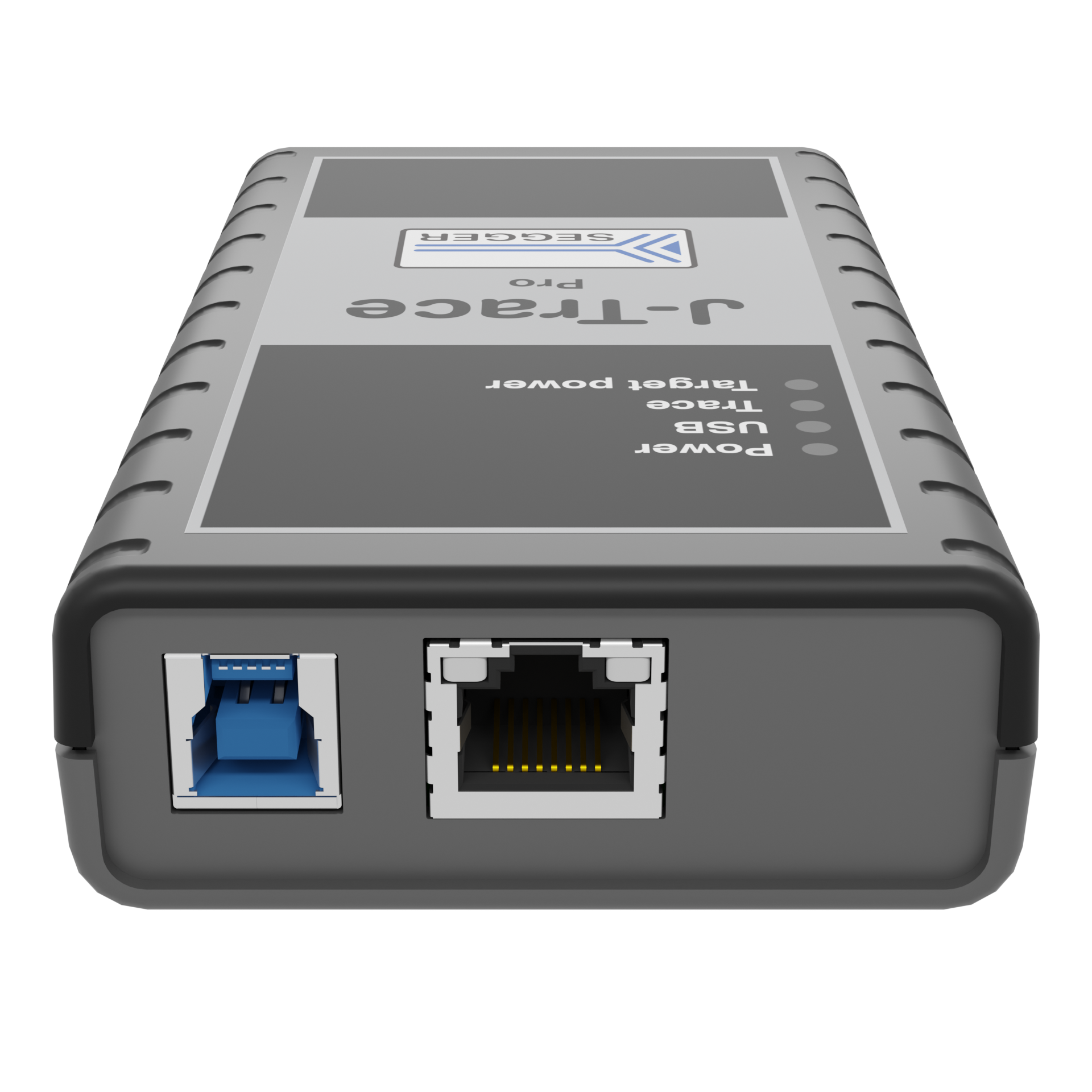

|USB 3.0, SuperSpeed

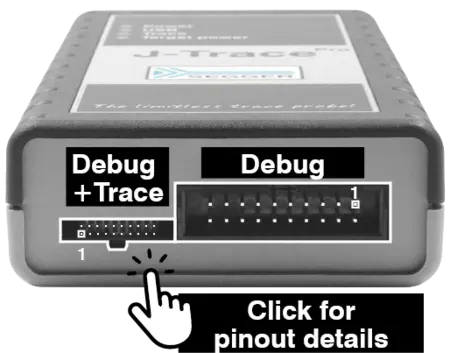

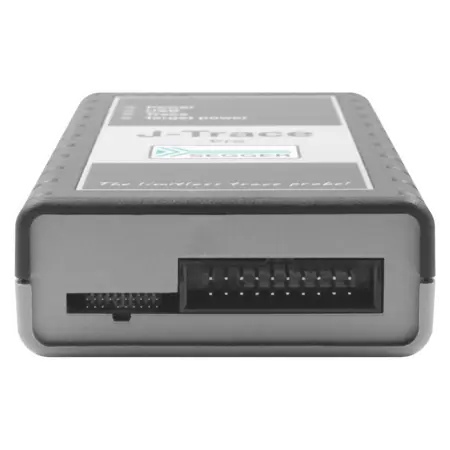

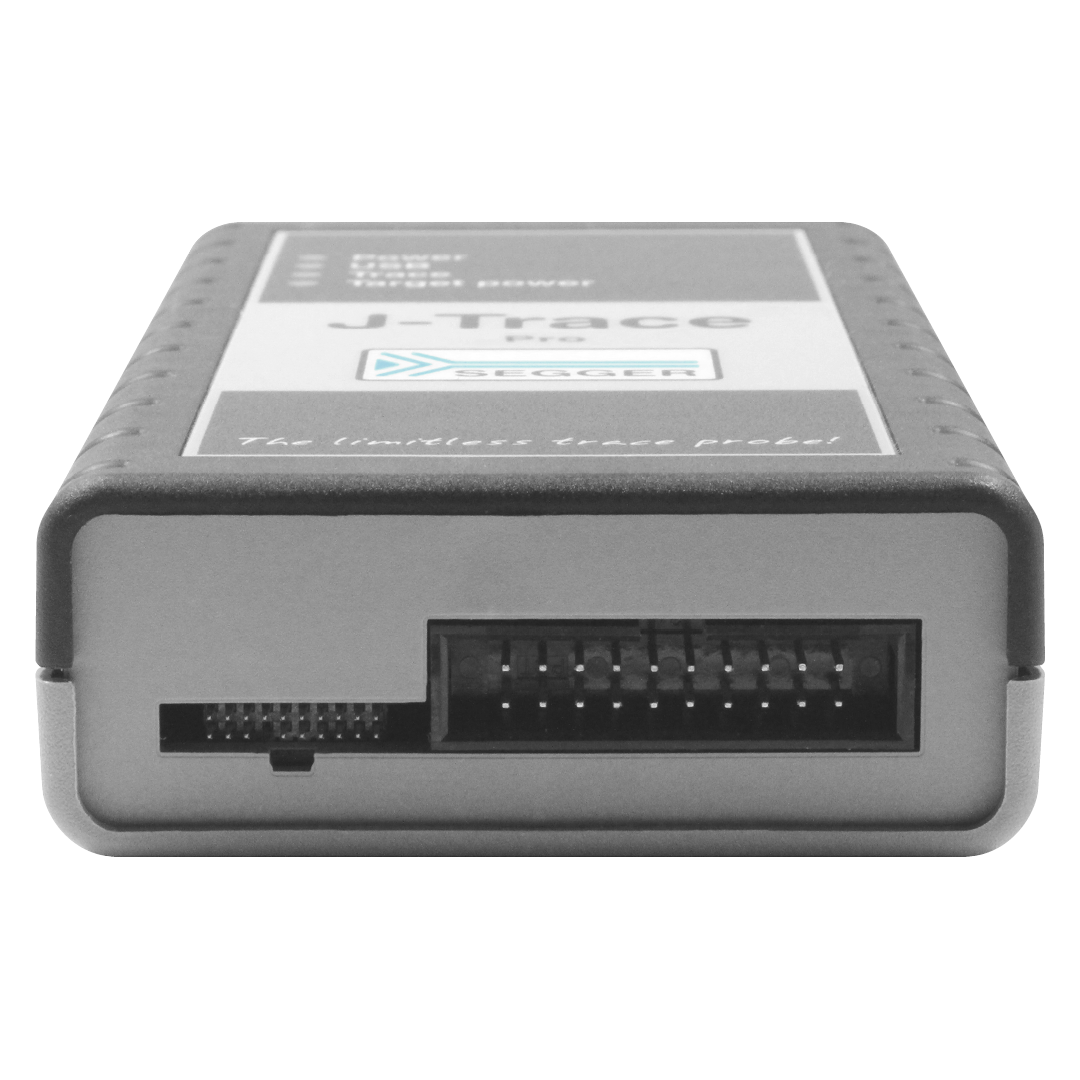

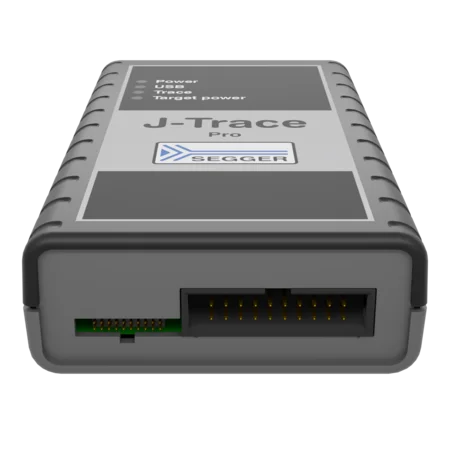

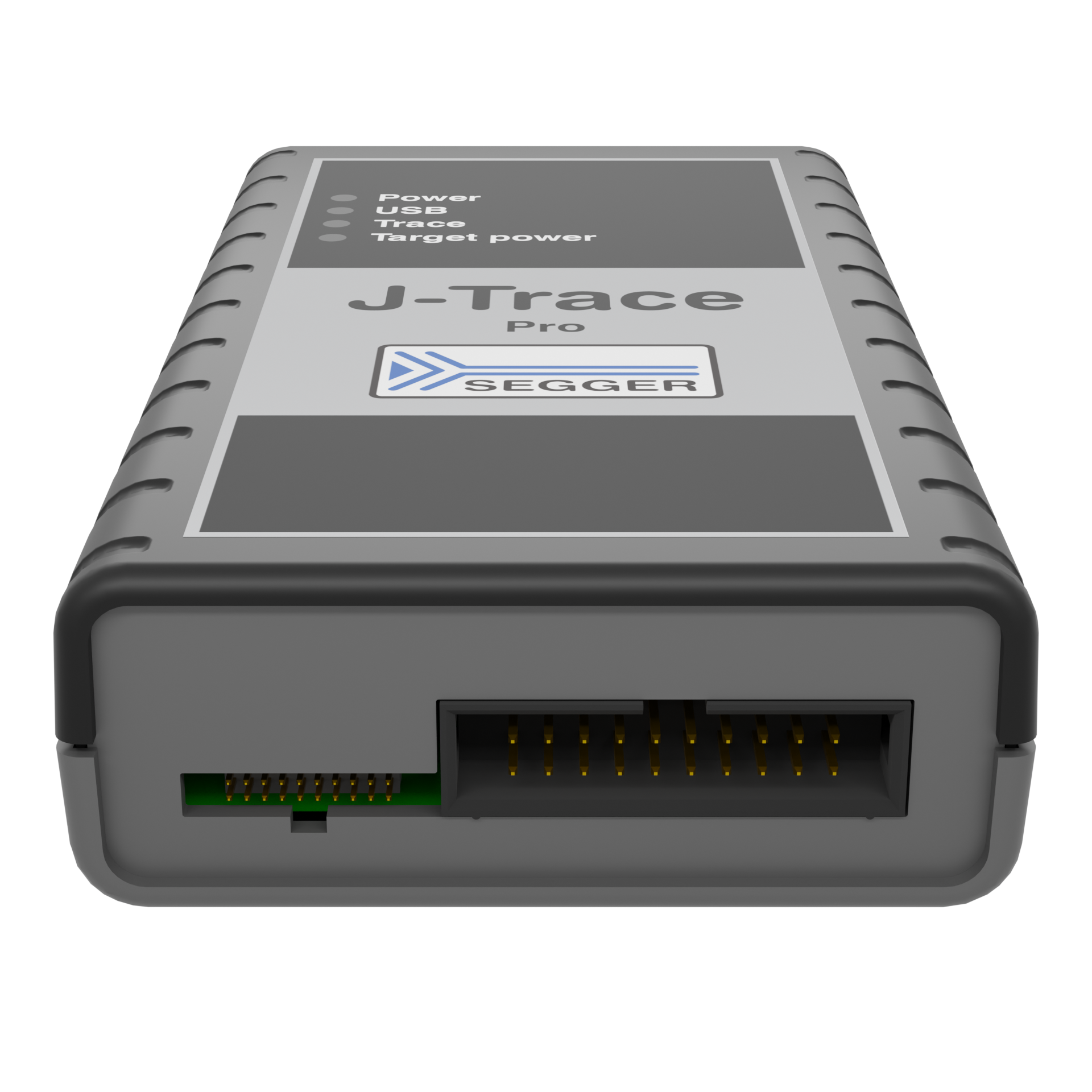

|JTAG/SWD 20-pin (14-pin adapter available)
JTAG/SWD + Trace 19-pin (38-pin Mictor adapter available)
|JTAG/SWD interface, electrical
|USB-powered (max. 400mA)
|Target interface voltage (VIF)
|1.2V ... 5V
|LOW level input voltage (VIL)
|VIL <= 40% of VIF
|HIGH level input voltage (VIH)
|VIH >= 60% of VIF
|JTAG/SWD interface, timing
|Data input rise time (Trdi)
|Data input fall time (Tfdi)
|Data output rise time (Trdo)
|Data output fall time (Tfdo)
|Clock rise time (Trc)
|Clock fall time (Tfc)
|Trace interface, electrical
|USB-powered (max. 400mA)
|Target interface voltage (VIF)
|1.2V ... 5V
|Voltage interface low pulse (VIL)
|Max. 40% of VIF
|Voltage interface high pulse (VIH)
|Min. 60% of VIF
|Max. trace clock frequency
Q: What is the advantage of using the J-Trace PRO over other trace probes?
A: One of the biggest advantages of the J-Trace PRO is its streaming trace capability. Streaming trace allows for continuous live trace analyses, enabling debugging for even the most complex problems.
Q: Can the J-Trace PRO be used with any IDE?
A: Yes. The J-Trace PRO can be used with all common IDEs, just like any J-Link debug probe.
Q: Can any IDE be used for tracing as well?
A: Unfortunately most IDE vendors do not offer trace analysis features. If they do, it is only to a limited degree.
Q: What can I use for tracing and analysis?
A: We recommend using the graphical standalone debugger Ozone. It supports all J-Trace PRO capabilities and compliments them with its advanced analysis features. Ozone can be used independent of a compiler, with the output of any IDE or toolchain. It can also be used completely free of charge with a J-Trace PRO, even for commercial use.
Q: What do I need in order to trace with a J-Trace PRO?
A: Just connect the target device and start debugging. J-Trace PRO is designed to simply get working. It can be up and running in less than 10 minutes.
Q: Where can I find trace-related troubleshooting information?
A: Tracing is a very hardware-dependent debug technique, and some target hardware modifications or designs can cause issues when trying to set up the trace debug interface. To give our customers an easy-to-use troubleshooting platform with the most asked questions answered, we have created the following setup page: Setting up trace.
Any more questions? Please contact us.
Q: Are there any trace example projects that I can use for orientation?
A: Yes, every J-Trace PRO gets shipped with a Cortex-M Trace Reference Board. An example project is part of the J-Trace tutorial. We also created a list of tested devices that each come with an example project that runs out-of-the-box with a J-Trace PRO and Ozone. The list is available here and is updated regularly.
Q: My device is not on the tested devices list, what can I do to get an example project for it?
A: The trace-capable MCU market is growing and it is becoming harder to keep track of all devices. If we don't happen to have a trace example for your particular device, please feel free to contact us.
The requirements for adding a new example project are:
- Must be supported by J-Link software: overview of supported CPUs and devices
- The target hardware must be publicly available and an evaluation board.
- Trace pins must be physically connected to the trace debug interface.
Q: What is the maximum voltage that can be handled by the galvanic isolation of the Ethernet?
A: The Ethernet data lines are isolated as required per IEEE 802.3 (test voltage 1500 Vrms for one minute). Note that this is NOT valid for the Ethernet shield that has a direct electrical contact to the USB shield and a resistive and capacitive coupling to probe GND. For an effective isolation, you need to use an unshielded twisted pair Ethernet cable.
