    MIPI-60 Adapter

    The MIPI-60 Adapter adapts from a Flasher, J-Link or J-Trace to a Jacinto7 TI board.

    Buy now
    Compare Flasher adapters
    Documentation
    Production Tools Icon

    Overview

    The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.

      Download schematics

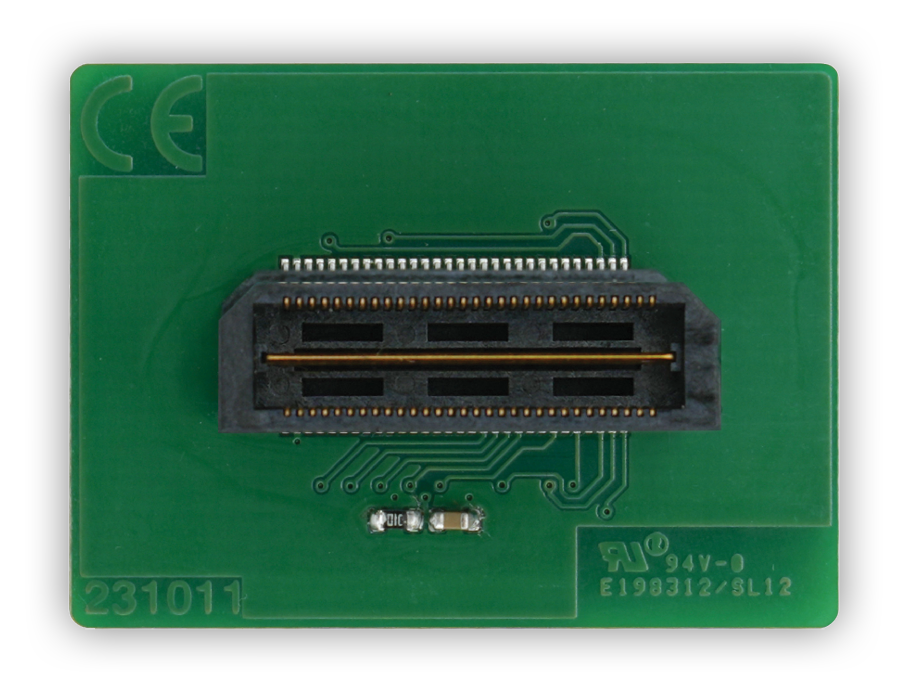

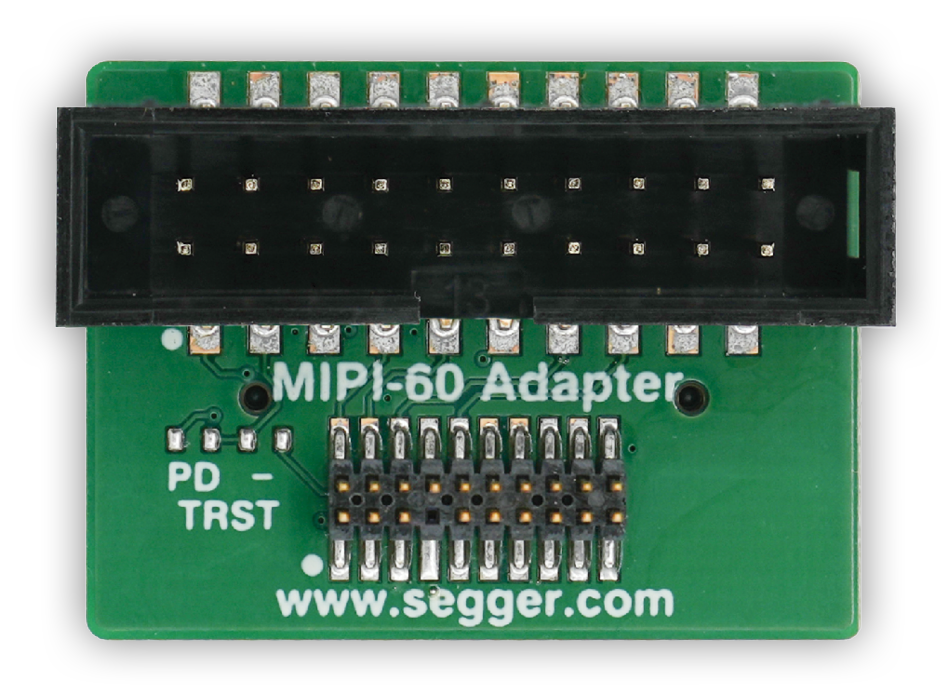

    MIPI-60 Adapter
    MIPI-60 Adapter debug & trace interface
    MIPI-60 Adapter target interface
    MIPI-60 Adapter target interface
    MIPI-60 Adapter connector pinout
    MIPI-60 Adapter connector pinout
    J-Trace Pinout
    J-Link 19-Pin Cortex-M Adapter / J-Trace 19-pin pinout
    J-Link/J-Trace JTAG/SWD 20-Pin Arm Adapter pinout
    J-Link/J-Trace JTAG/SWD 20-Pin Arm Adapter pinout
    PinSignal
    1VTREF
    2TMS
    3TCK
    4TDO
    5TDI
    6RESET
    7RTCK
    8TRST PD
    9TRST
    10Not connected
    11Not connected
    12VTREF
    13TRC CLK
    14Not connected
    15GND
    16GND
    17TRC CTL
    18Not connected
    19TRC DAT0
    20Not connected
    21TRC DAT1
    22Not connected
    23TRC DAT2
    24Not connected
    25TRC DAT3
    26 - 56Not connected
    57GND
    58GND
    59Not connected
    60Not connected
