Overview

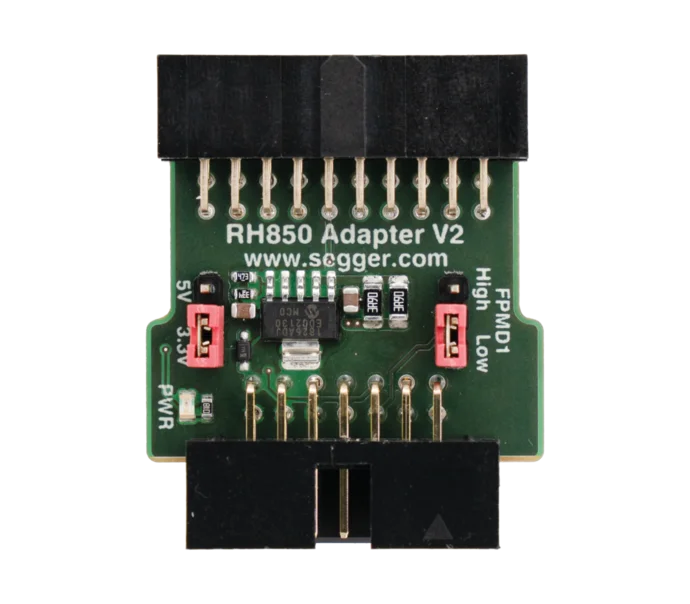

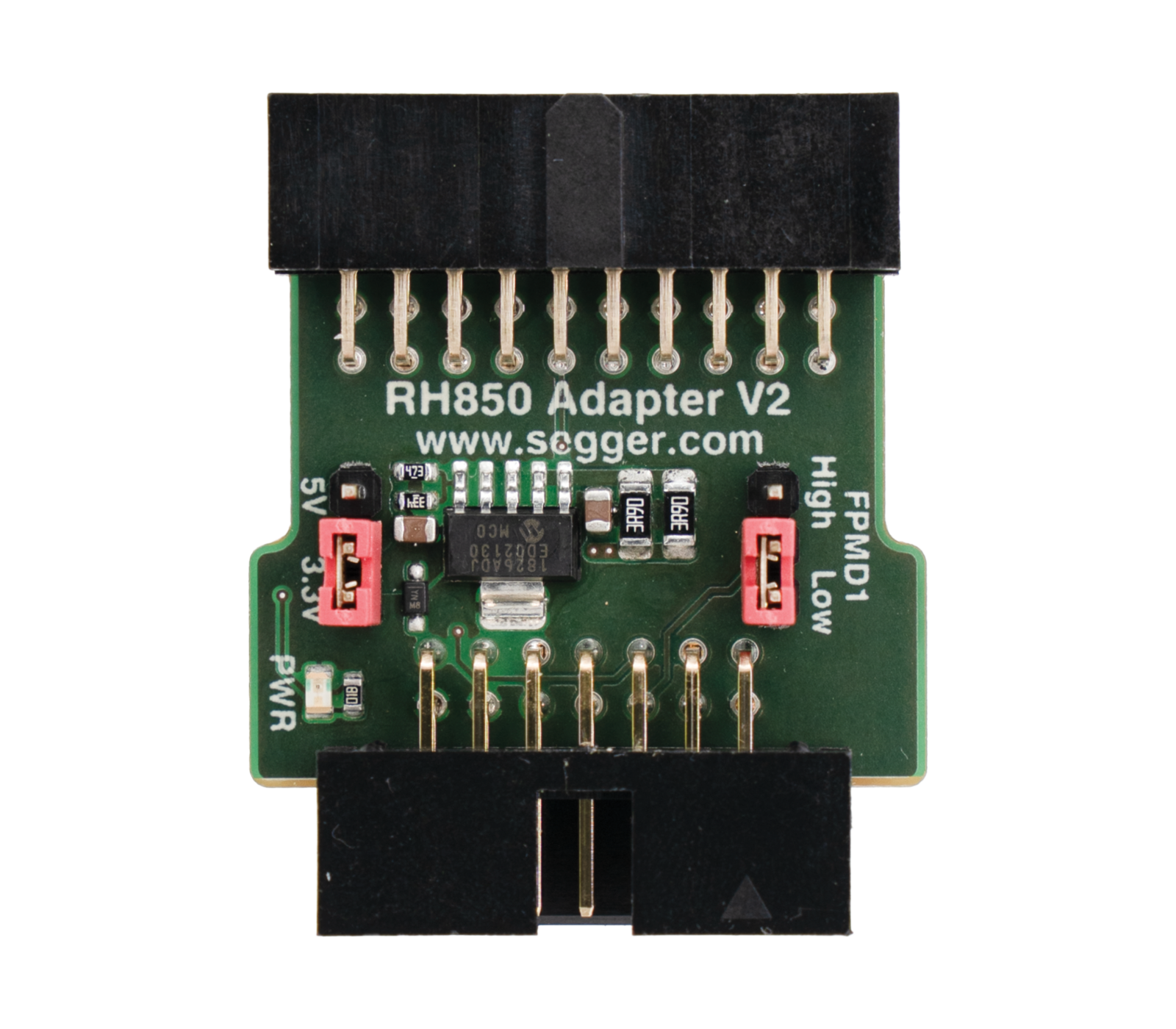

A green circuit board labeled "RH850 Adapter V2" featuring a central chip, several pins for connections, a red switch, and markings for power and signal settings. The design includes a connector at the bottom for interfacing with other devices.

The RH850 Adapter enables connections between SEGGER Flashers and J-Link debug probes and target hardware featuring Renesas RH850 series MCUs. It adapts the standard 20-pin SEGGER connector to the 14-pin JTAG/UART/SPI connector found on the target hardware.

Pinout & schematics

Schematic diagram showing connections between a probe/programmer and a target device. It includes labeled signal paths for VRef, TRST, TCK, TMS, TDI, TDO, RESET, EVTO, FPMD0, and supplies VREG with voltages of 5V and 3.3V. Ground connections are also indicated.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link
