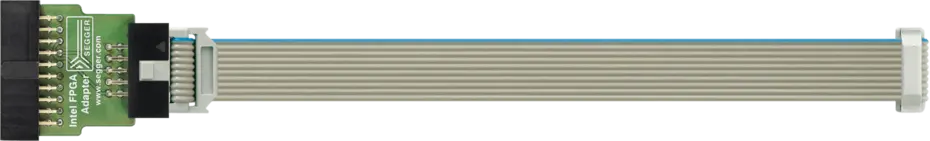

SEGGER Intel FPGA Adapter

The Intel FPGA Adapter (formerly J-Link Altera Adapter) connects to the 10-pin 100-mil Intel FPGA JTAG connector providing debug access to FPGA based MCU cores like the dual-core ARM Cortex-A9 in the Cyclone V devices.


SEGGER Intel FPGA Adapter

intel-fpga-adapter-pinout.svg

SEGGER Intel FPGA Adapter Pinout
