19-Pin Cortex-M Adapter

The 19-Pin Cortex-M Adapter adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector as defined by Arm.

Buy now
Compare J-Link adapters
Documentation
SEGGER Debug & Trace Probes

Overview

The 19-Pin Cortex-M Adapter allows JTAG, SWD, and SWO connections between J-Link or Flasher and Cortex-M based target hardware systems. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector as defined by Arm.

The 19-Pin Cortex-M Adapter may also be used to connect J-Link or Flasher to a non-Cortex-M target as far as the target connector uses the same pinout as shown below.

By default, TRST is not connected, but the Cortex-M adapter comes with a solder bridge (NR1) which allows TRST to be connected to pin 9 of the Cortex-M adapter.

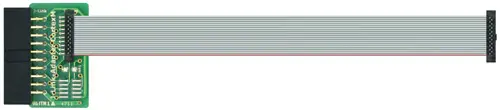

19-Pin Cortex M Adapter with cable
19-Pin Cortex M Adapter with cable
19-Pin Cortex M Adapter Pinout
19-Pin Cortex M Adapter Pinout

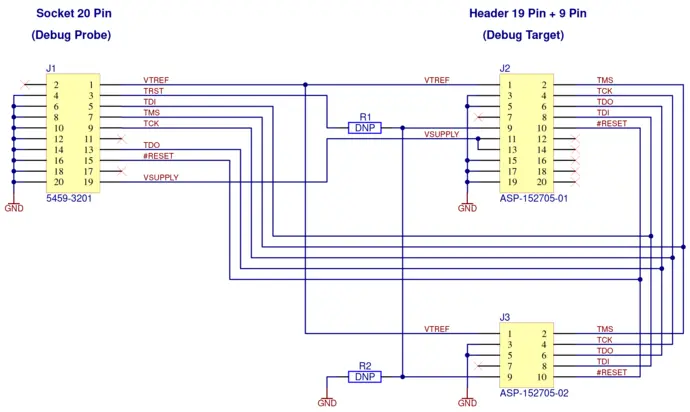

19-Pin Cortex-M Adapter Schematic
