SEGGER Evaluation Software for
NXP LPCXpresso 4367

NXP - lpcxpresso v3 revb

SEGGER Evaluation Software

Included Components:

Download   SEGGER Evaluation Software for NXP LPCXpresso 4367 and SEGGER Embedded Studio

Other Downloads

Download   embOS trial for Cortex-M and SEGGER Embedded Studio

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

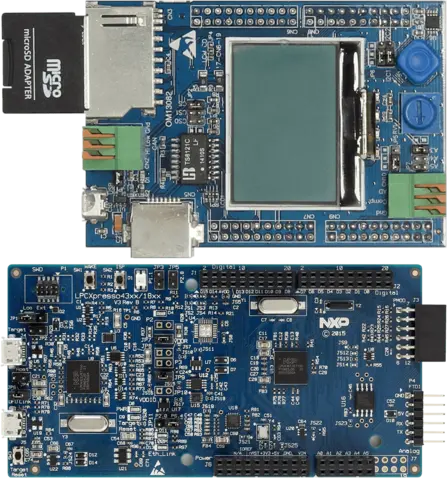

NXP LPCXpresso 4367 Eval Board

  • LPC4367 dual-core (M4F and M0+) MCU running at up to 204 MHz
  • On-board high-speed USB based debug probe with CMSIS-DAP and LPCXpresso IDE Redlink protocol options, can debug the on-board LPC4367 or external target
  • Support for external debug probes
  • Tri-color LED
  • Target Reset, ISP and WAKE buttons
  • USB, UART and QSPI flash boot option configuration options
  • Expansion options based on Arduino UNO R3 and Pmod™, plus additional expansion port pins
  • On-board 1.8/3.3 V or external power supply options
  • On-board Ethernet PHY (output available at expansion connectors)
  • High speed USB A/B connector for host or slave operation
  • 8 Mb Macronix quad SPI flash
  • UART, I²C and SPI port bridging from LPC4367 target to USB via the on-board debug probe
  • FTDI UART connector


  • ARM Cortex-M4 processor running at frequencies of up to 204 MHz.
  • ARM Cortex-M0 co-processor running at frequencies of up to 204 MHz.
  • Up to 1 MB on-chip dual bank flash memory with flash accelerator.
  • 154 kB SRAM for code and data use.
  • 64 kB ROM containing boot code and on-chip software drivers.
  • Quad SPI Flash Interface (SPIFI) with four lanes.
  • 10/100T Ethernet MAC with RMII and MII interfaces.
  • One High-speed USB 2.0 Host/Device/OTG interface.
  • One High-speed USB 2.0 Host/Device interface.
  • One 550 UART with DMA support.
  • Three 550 USARTs with DMA and synchronous mode support.
  • Up to two C_CAN 2.0B controllers with one channel each.
  • Two SSP controllers with FIFO and multi-protocol support.
  • One SPI controller.
  • One Fast-mode Plus I²C-bus interface.
  • One standard I²C-bus interface.
  • Two I²S interfaces.
  • External Memory Controller (EMC) supporting external SRAM, ROM, NOR flash, and SDRAM devices.
  • LCD controller with DMA support.
  • Secure Digital Input Output (SD/MMC) card interface.
  • Eight-channel General-Purpose DMA controller.
  • Up to 164 General-Purpose Input/Output (GPIO) pins.
  • Four general-purpose timer/counters with capture and match capabilities.
  • Ultra-low power Real-Time Clock (RTC).
  • One 10-bit DAC with DMA support.
  • Two 10-bit ADCs with DMA support.
  • Unique ID for each device.
