SEGGER Evaluation Software for
XMC4500 Relax Kit

SEGGER Evaluation Software

Included Components:

Download   SEGGER Evaluation Software for XMC4500 Relax Kit and SEGGER Embedded Studio

Other Downloads

Download   Binary demo applications + flash loader (No toolchain required)

Download   embOS trial for Cortex-M and SEGGER Embedded Studio

Download   SEGGER Embedded Studio for ARM, Windows 64-bit version

Download   SEGGER Embedded Studio for ARM, Windows 32-bit version

Download   SEGGER Embedded Studio for ARM, macOS

Download   SEGGER Embedded Studio for ARM, Linux 64-bit version

Download   SEGGER Embedded Studio for ARM, Linux 32-bit version

Download   SEGGER Embedded Studio for ARM

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

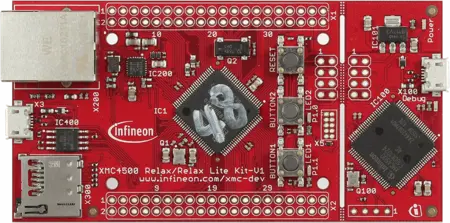

XMC4500 Relax Kit

  • Detachable on-board debugger (second XMC4500)
  • USB OTG Device support via micro USB connector
  • Powersupply over Micro-USB
  • ESD and reverse current protection
  • Reset push button
  • 2 x user button
  • 2 x user LED
  • 4 x SPI-Master, 3x I2C, 3 x I2S, 3 x UART, 2 x CAN, 17 x ADC
  • (12 bit), 2 x DAC, 31x PWM mapped on 2 Pin Headers 2 x 20 0.1”
  • Ethernet PHY and RJ45 jack
  • Real Time Clock crystal
  • 32 Mbit Quad-SPI Flash
  • MicroSD card slot

XMC4500

  • ARM Cortex-M4 with floating point unit (FPU), single-cycle DSP MAC, 80-120 MHz CPU frequency
  • 1 MB embedded Flash with 22 ns access time and error correction unit
  • 12-channel DMA (XMC4500)
  • Comprehensive set of timers, Delta sigma Demodulator, Position Interface, PWM with emergency shutdown and ADC trigger, Quadrature Encoder Interface
  • Up to 4x 12-bit ADC achieving 4 Mega samples per second (interleaved mode)
  • 2x 12-bit DAC
  • 6 multi-functional serial interface modules configurable to SPI, I2C, I2S, UART
  • 160 kB embedded RAM
  • 3x CAN
  • External bus interface supporting SDRAM, SRAM, NOR-/NAND-Flash and memory-mapped IO devices (e.g. LCD)
  • SD/MMC interface
  • Touch interface & LED Matrix
  • Battery-backed real-time clock with calendar function and time-based or external wake-up capabilities
  • Extended temperature range up to 125 °C ambient temperature
