    SiLabs C2 Adapter

    The SiLabs C2 Adapter allows debug connections between J-Link or Flasher and target hardware which comes with Silicon Labs C2 debug interface.

    Buy now
    Compare Flasher adapters
    Documentation
    Production Tools Icon

    Overview

    The SiLabs C2 Adapter allows debug connections between J-Link or Flasher and the target hardware which comes with Silicon Labs C2 debug interface. It adapts from the 20-pin 0.1'' standard debug connector to a 10-pin 0.1'' connector pinout compatible with Silicon Labs evaluation boards.


    SiLabs C2 Adapter with cable
    SiLabs C2 Adapter with cable

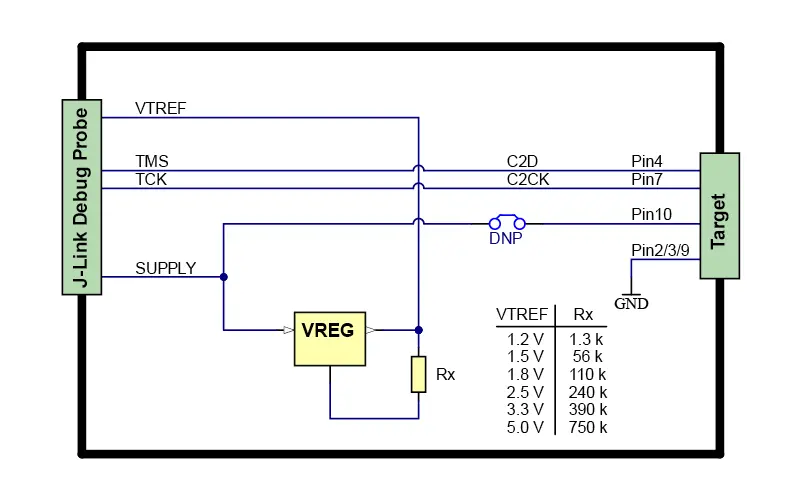

    SiLabs C2 Adapter Block Diagram
    SiLabs C2 Adapter Block Diagram
    SiLabs C2 Adapter Pinout
    SiLabs C2 Adapter Pinout

    Suitable products

    • Flasher PRO
    • Flasher PRO XL
    • Flasher Compact
    • Flasher Portable PLUS
    • Flasher Secure
    • J-Link Pro PoE
    • J-Link Pro
    • J-Link ULTRA+
    • J-Link WiFi
    • J-Link PLUS Classic
    • J-Link PLUS Compact
    • J-Link BASE Classic
    • J-Link BASE Compact
