  • Signal Smoothing Adapter

    Signal Smoothing Adapter

    The Signal Smoothing Adapter can be inserted between the J-Link or Flasher and the debug target to overcome signal integrity issues.

    Buy now
    Compare Flasher adapters
    Documentation
    Production Tools Icon

    Overview

    The Signal Smoothing Adapter can be inserted between the J-Link debug probe or Flasher in-cicruit programmer and the debug target to overcome signal integrity issues. Depending on target load capacitance JTAG signals might be affected by overshoot and ringing. In this case user adjustable series resistors (default 47R) allow for damping critical signal rise/fall times leading to improved signal integrity.

    Signal Smoothing Adapter
    Signal Smoothing Adapter

    Example

    Target with minimum capacitive load for JTAG signals (< 3 pF), connected via 60 cm standard flat ribbon cable.

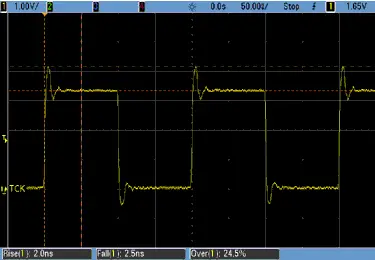

    J-Link Signal Smoothing Adapter Ex1

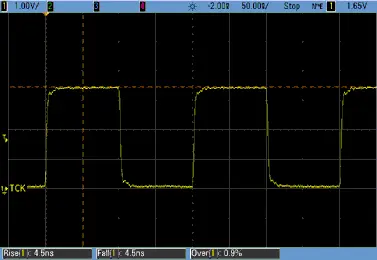

    J-Link Signal Smoothing Adapter Ex2

    Suitable products

    • Flasher PRO
    • Flasher PRO XL
    • Flasher Compact
    • Flasher ARM
    • Flasher Portable PLUS
    • Flasher Secure
    • J-Link Pro PoE
    • J-Link Pro
    • J-Link ULTRA+
    • J-Link WiFi
    • J-Link PLUS Classic
    • J-Link PLUS Compact
    • J-Link BASE Classic
    • J-Link BASE Compact
    • Online documentation
    • List of downloads
    • Pricing
    • Buy now
    • Regulatory documents
