SEGGER Evaluation Software for

TI - tm4c129x

Other Downloads

Download   embOS trial for ARM 7/9/11/XScale/Cortex-A/R and SEGGER Embedded Studio

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

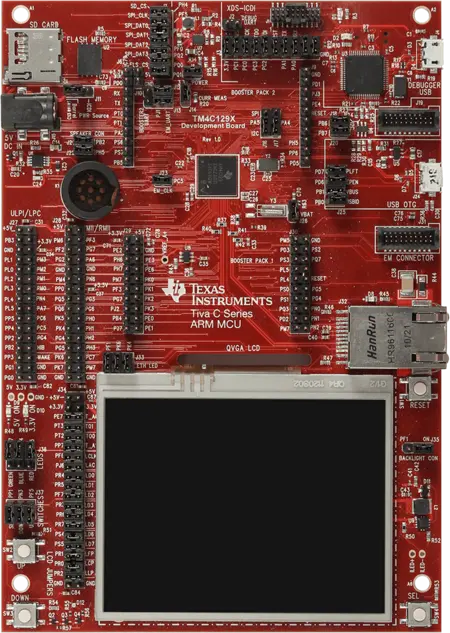

  • Tiva TM4C129X Microcontroller
  • QVGA color display with resistive touch screen
  • 10BASE-T/100BASE-TX controller with internal PHY
  • USB Micro-AB connector for Host/Device/OTG
  • MicroSD card slot
  • 3 navigation buttons
  • User tricolor LED
  • Precision 3.0V reference
  • Quad SSI to 512 Mbit flash
  • BoosterPack XL connector for expansion
  • BoosterPack connector for expansion
  • EM connector for wireless applications
  • Available I/O brought out to headers on 0.1" grid
  • ULPI USB external PHY (for high speed USB 2.0)
  • RMII and MII external Ethernet PHY
  • EPI, Host bus 16/8
  • Tiva In-Circuit Debug Interface (ICDI)
  • Standard 20-pin JTAG header without ETM functionality (debug in and out capable)
  • Shunt resistors to measure current on V DD V BAT V DDA and V REF to the TM4C129X
  • Reset button

Tiva XM4C129

  • 10/100 Ethernet MAC + PHY
  • 1 MB Flash, 256 KB SRAM, 6KB EEPROM
  • Two 12-bit, 24-channel, 2-MSPS ADCs
  • LCD Controller
  • Parallel interface for connecting external memory
  • Hardware Encryption and CRC
  • Tamper I/Os
  • Eight UARTs
  • Ten I2C
  • Four SPI / SSI with Quad SPI
  • 1-Wire Master
  • 128-TQFP and 212-BGA
