    Measurement+Patch Adapter

    The Measurement+Patch Adapter provides test points for all debug signals and has a standard 20-pin 0.1" socket towards the J-Link or Flasher and a standard 20-pin 0.1" header on the target side.

    Buy now
    Compare Flasher adapters
    Documentation
    Production Tools Icon

    Overview

    The Measurement+Patch Adapter allows easy customized wiring between J-Link or Flasher devices and targets that do not provide a standard debug connector that fits to any of the adapters available for J-Link (e.g. the Discovery Boards from ST Microelectronics).

    It comes with a set of colored jumper wires, allowing easy differentiation of the debug signals. The Measurement+Patch Adapter also provides test points for all debug signals to allow easy access to them for checking signal integrity. It has a standard 20-pin 0.1" socket towards the J-Link debug probe or Flasher in-circuit programmer and a standard 20-pin 0.1" header on the target side, so it can be plugged-in directly to J-Link or Flasher, maintaining a 1:1 connection.

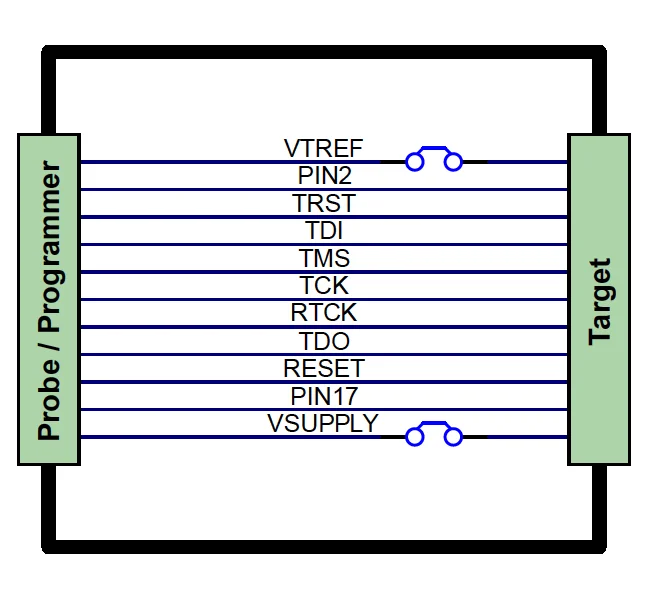

    For increased flexibility VTref on pin 1 and the target supply voltage on pin 19 can be interrupted by means of two jumpers.

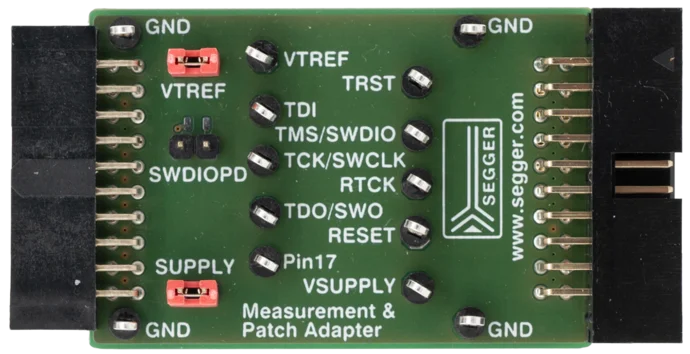

    Measurement+Patch Adapter

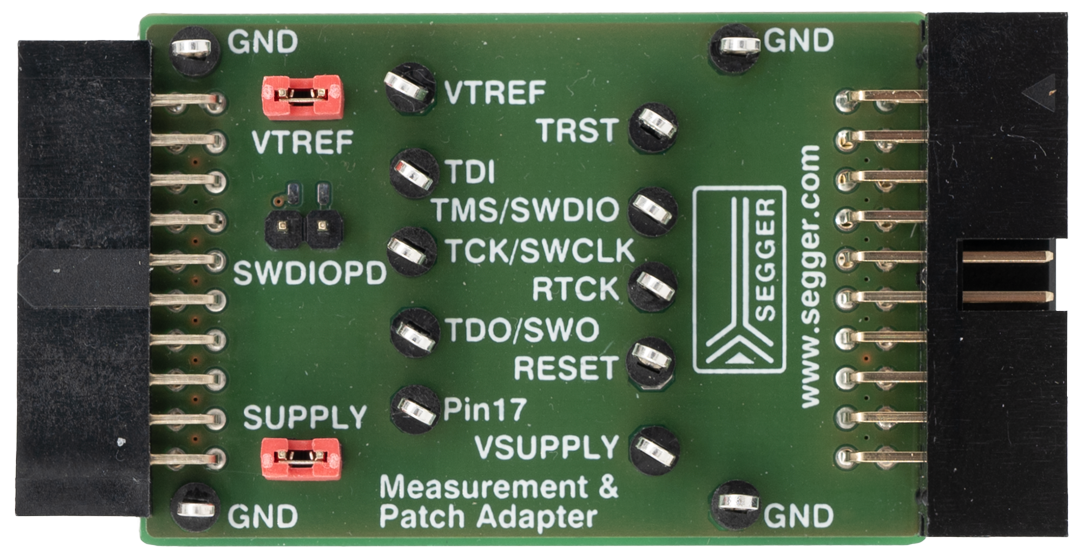

    Measurement+Patch Adapter

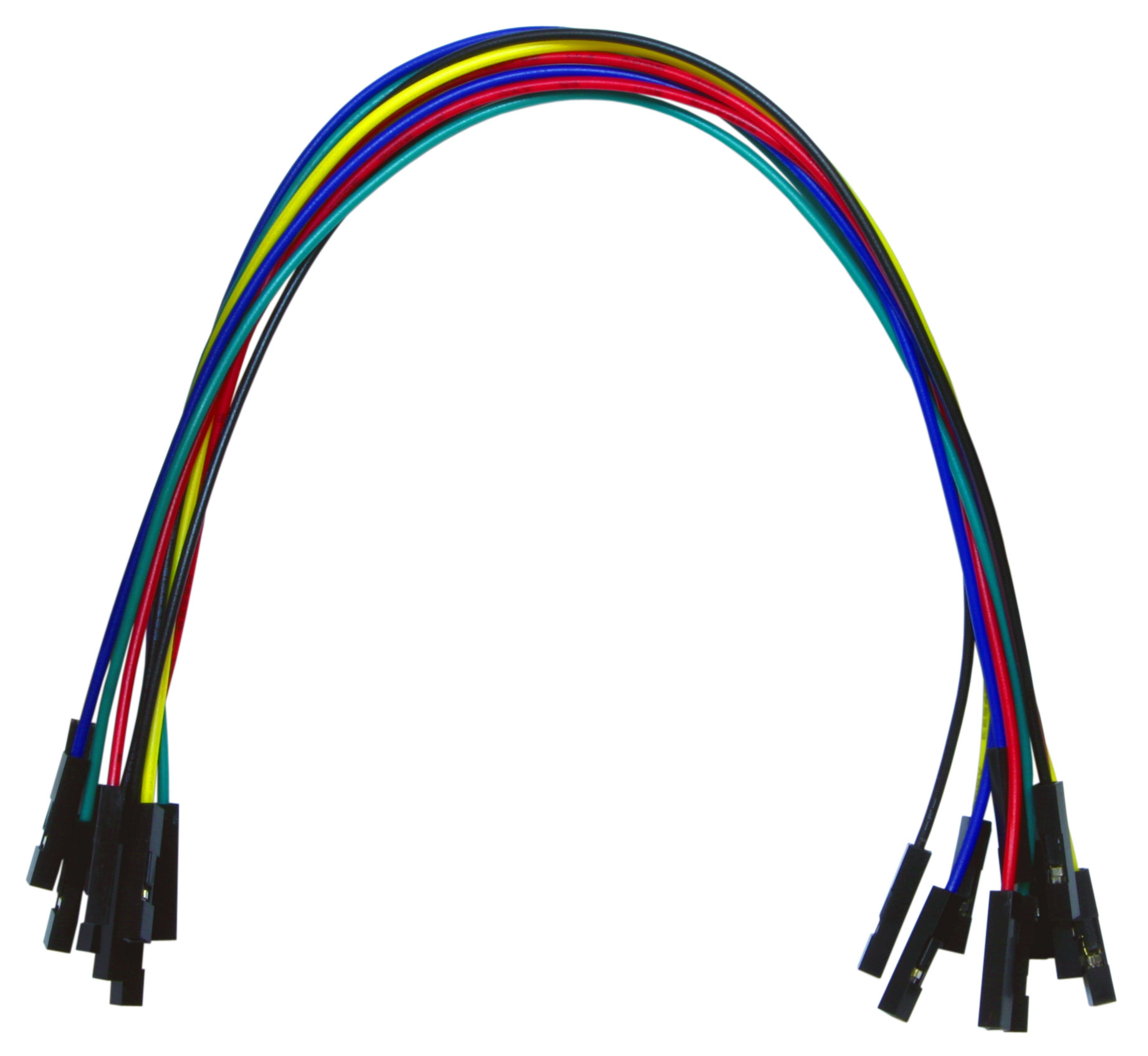

    JumperWires
    10 jumper wires

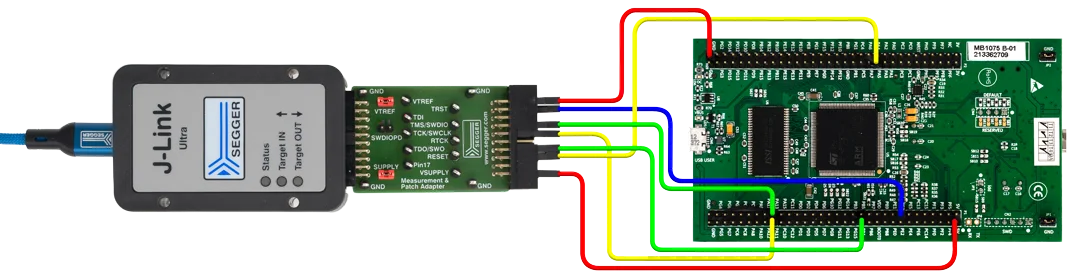

    Measurement+Patch Adapter in Use

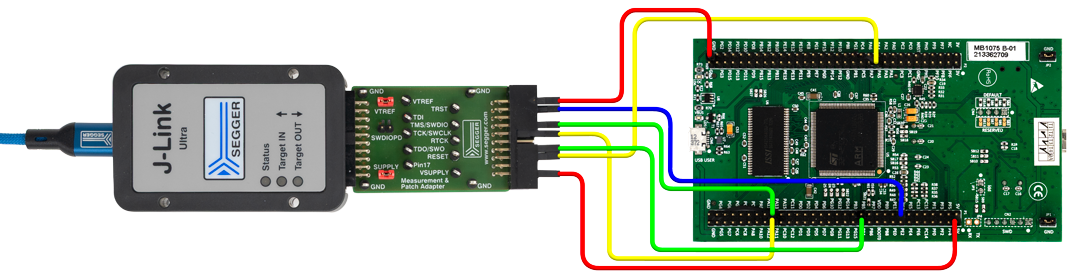

    J-Link Measurement Patch Adapter InUse-2
    J-Link Measurement Patch Adapter InUse 1

    Suitable products

    • Flasher PRO
    • Flasher PRO XL
    • Flasher Compact
    • Flasher ARM
    • Flasher Portable PLUS
    • Flasher Secure
    • J-Link Pro PoE
    • J-Link Pro
    • J-Link ULTRA+
    • J-Link WiFi
    • J-Link PLUS Classic
    • J-Link PLUS Compact
    • J-Link BASE Classic
    • J-Link BASE Compact
