Programmer for Legacy Devices
Flash programmer for M16C, M32C, R8C, R32C, M38000, ST7 and ST9 series of flash microcontrollers.
Contents
Stand-Alone Programmer "Flasher"
The Flasher family eases the implementation into a production site by allowing the flash programming to be triggered manually or remotely.
Model overview

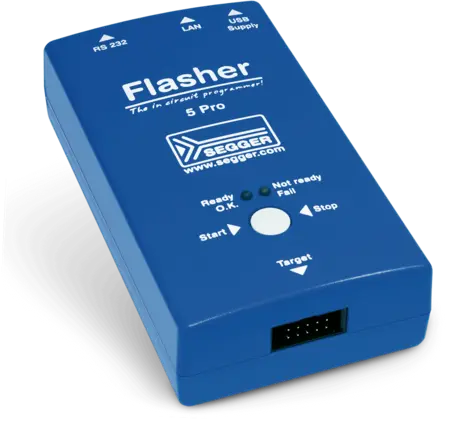

Flasher 5 PRO
Flasher 5 PRO is a programming tool for Renesas M16C/62, M16C/80, M32C, M79, R32C, R8C series of microcontrollers. This tool allows programming of MCU via serial synchronous or asynchronous interface in circuit only. A target system is required.
Main Features
- Serial (in target) programming supported
- 64 MByte internal Flash memory to store target program
- PC program allows batch mode processing for usage in automated test systems
- Once set up, Flasher can be controlled without the use of a PC program
Flasher ST7
Flasher ST7 is a programming tool for ST7 series of flash microcontrollers.
Main Features
- Small, compact housing
- Easy to use windows program
- 512 KByte internal Flash memory to store target program
Flasher 5
Flasher 5 is a programming tool for ST9 and Renesas M16C/20, M16C/62, M16C/80, M32C, R8C, R32C, M38 and M79 series of flash microcontrollers in serial mode (1.5 MByte Flash to store target program, remote control functions for automated testers). Flasher 5 is a legacy product, its successor is Flasher 5 PRO. Support is still available. In case you require 12V operation, please contact us.
Main Features
- Serial (in target) programming supported
- PC program allows batch mode processing for usage in automated test systems
- Once set up, Flasher can be controlled without the use of a PC program
Supported Devices
| Supported Devices | Flasher 5 | Flasher 5 PRO | Flasher ST7 |
|---|---|---|---|
| 7641 |
|
|
|
| M16C |
|
|
|
| M32C |
|
|
|
| M375 |
|
|
|
| M38 |
|
|
|
| M7900 |
|
|
|
| R32C |
|
|
|
| R8C |
|
|
|
| ST7 |
|
|
|
| ST9 |
|
|
|

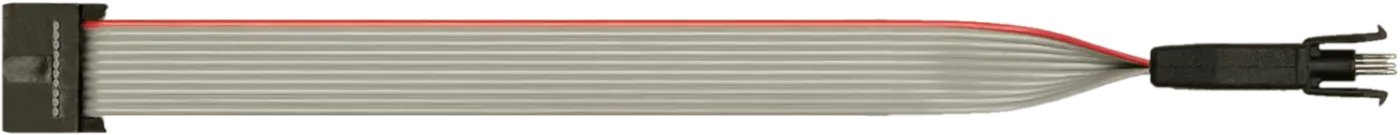

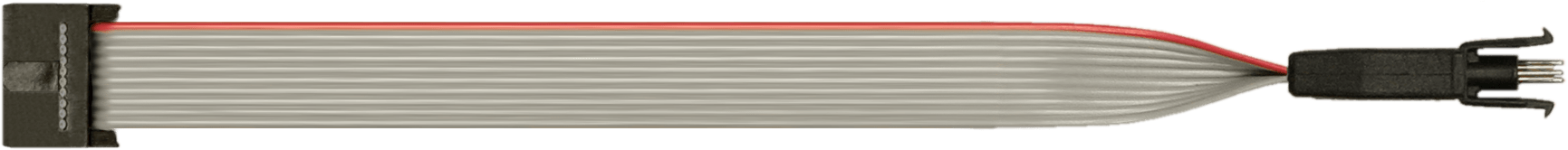

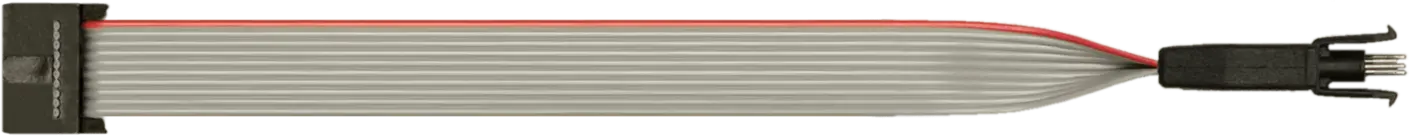

10-pin Needle Adapter
SEGGER offers the 10-pin Needle Adapter, which has been designed to connect Flasher 5, Flasher 5 PRO, Flasher ST7 or Flasher STM8 to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures that the adapter can only be connected in one way.
The 10-pin needle adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 10-pin, 0.1 inch connector to a 10-pin, 0.05 inch needle pattern.
