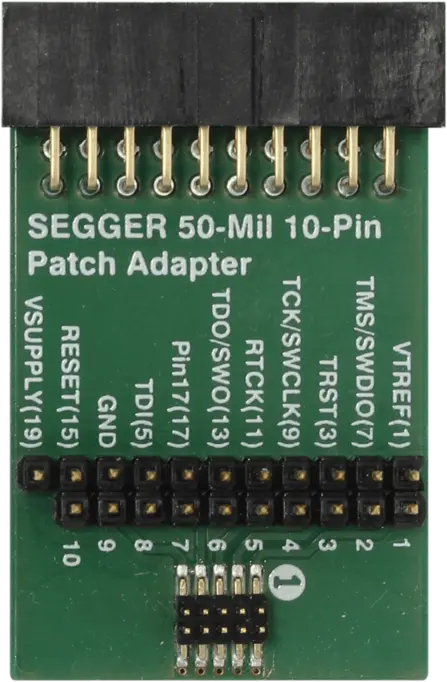

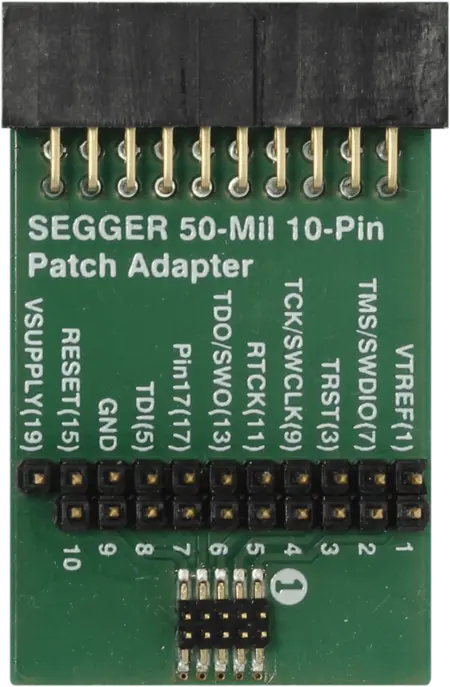

SEGGER 50-Mil 10-Pin Patch Adpter

Adapts from the standard 20 pin 0.1" J-Link connector to the standard 10-pin 0.05" Cortex-M connector that is also used on many non-Cortex-M designs but with non-standard pinout. This adapter allows custom connections/wiring between the 20-pin and 10-pin side.
