J-Link Microchip 2-Wire JTAG TDI Adapter

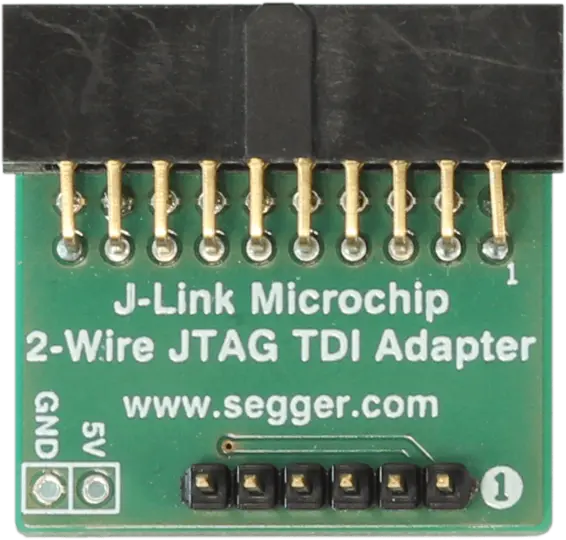

The J-Link Microchip 2-Wire JTAG TDI Adapter allows debug connections between J-Link and target hardware which comes with Microchip IS208x series MCUs. It supports the Microchip 6-pin single row .1" connector.

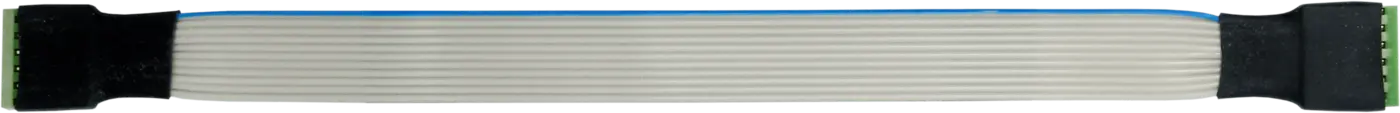

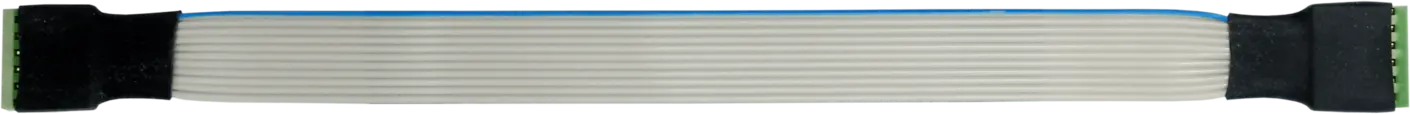

J-Link Microchip 2-Wire JTAG TDI Adapter Cable

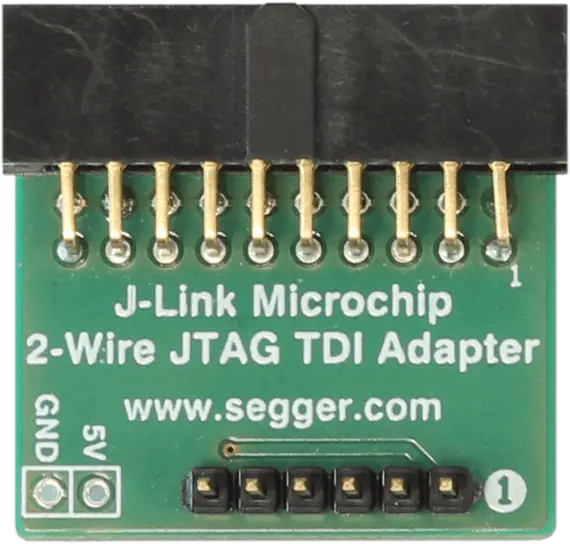

J-Link Microchip 2-Wire JTAG TDI Adapter
PinSignal
1#RESET
2VDD
3GND
4TDI
5TCK
6NC (not connected but populated on header)

J-Link Microchip 2-Wire JTAG TDI Adapter Pinout
