    The 19-Pin Cortex-M Adapter adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector as defined by Arm.

    Buy now
    Compare Flasher adapters
    Documentation
    Production Tools Icon

    Overview

    The 19-Pin Cortex-M Adapter allows JTAG, SWD, and SWO connections between J-Link or Flasher and Cortex-M based target hardware systems. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector as defined by Arm.

    The 19-Pin Cortex-M Adapter may also be used to connect J-Link or Flasher to a non-Cortex-M target as far as the target connector uses the same pinout as shown below.

    By default, TRST is not connected, but the Cortex-M adapter comes with a solder bridge (NR1) which allows TRST to be connected to pin 9 of the Cortex-M adapter.

    19-Pin Cortex M Adapter with cable
    19-Pin Cortex M Adapter with cable
    19-Pin Cortex M Adapter Pinout
    19-Pin Cortex M Adapter Pinout

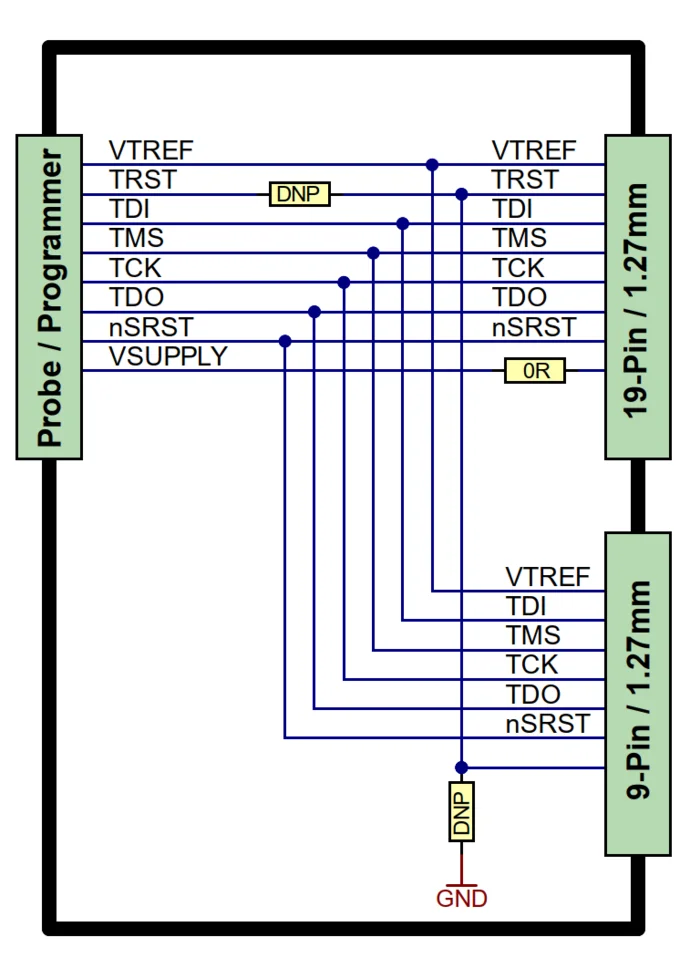

    19-Pin Cortex-M Adapter Schematic
