Data Sheets

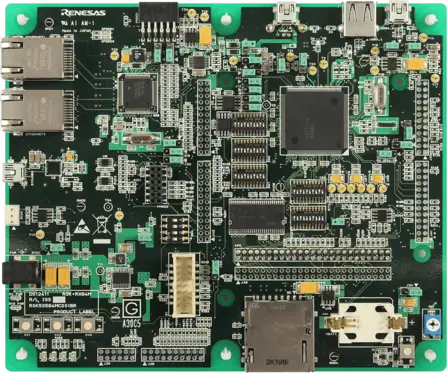

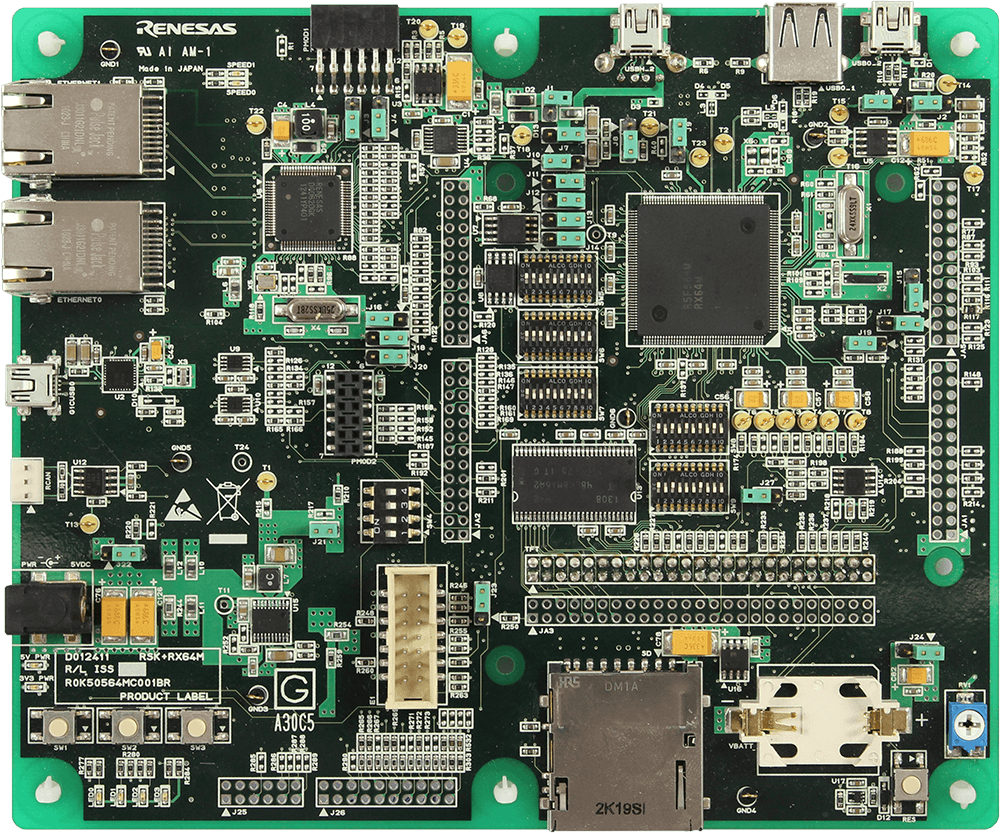

Renesas RX64M RSK

  • SD card slot
  • 2 Ethernet connectors
  • Generic LCD connector
  • 3 User switches
  • User LEDs
  • Application headers
  • 128MBit SDRAM
  • USB Host/Device/OTG connectors
  • 32 MBit RSPI Serial Flash
  • 32 MBit QSPI Serial Flash
  • Virtual COM port interface

R5F564MLCDFC

  • 32-bit RXv2 CPU core
  • Max. operating frequency: 120 MHz
  • Operation from a single 2.7- to 3.6-V supply
  • Low power consumption
  • 4 MByte on-chip code flash memory
  • 64 Kbyte On-chip data flash memory
  • 512 Kbytes of SRAM
  • 32 Kbytes of RAM with ECC
  • 8 Kbytes of standby RAM
  • 8 DMAC channels
  • Power-on reset (POR)
  • Low voltage detection (LVD) with voltage settings
  • External crystal oscillator or internal PLL for operation at 8 to 24 MHz
  • Real-time clock
  • Independent watchdog timer
  • Useful functions for IEC60730 compliance
  • 10/100 MBit Ethernet MAC
  • PHY layer for host/function or OTG controller with high-speed USB 2.0 (optional) transfer
  • PHY layer for host/function or OTG controller with full-speed USB 2.0 transfer
  • CAN (compliant with ISO11898-1)
  • SCIg and SCIh with multiple functionalities
  • I2C bus interface for transfer
  • Four-wire QSPI in addition to RSPIa
  • Parallel data capture unit (PDC) for the CMOS camera interface
  • SD host interface with a 1- or 4-bit SD bus for use with SD memory or SDIO
  • Up to 29 extended-function timers
  • 12-bit A/D converter
  • 12-bit D/A converter
  • Encryption (optional): AES, DES, SHA-1, SHA-2, HMAC
  • Up to 127 pins for general I/O ports
