Data Sheets

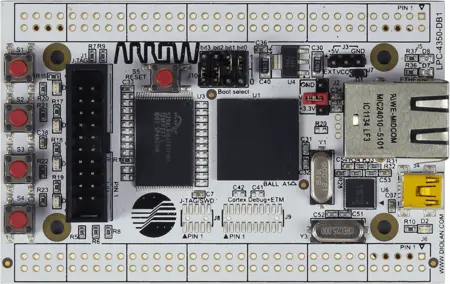

Arrow LPC4350-DB1-C

  • LPC4350FET256 ARM Cortex-M4 digital signal controller with Cortex-M0 co-processor
  • 20-pin 2.54mm (0.1 inch) ARM Standard JTAG/SWD connector
  • High-speed USB 2.0 Host/Device/OTG interface (with USB mini-B connector)
  • 10/100MBit Ethernet interface (PHY and connector)
  • 16MBit external NOR flash
  • 64Mbit external SDRAM
  • 4 user push buttons, RESET button and 4 LEDs
  • Boot select jumpers

LPC4350FET256

  • ARM Cortex-M4 processor, running at frequencies of up to 150 MHz
  • ARM Cortex-M4 built-in Memory Protection Unit (MPU) supporting eight regions
  • ARM Cortex-M4 built-in Nested Vectored Interrupt Controller (NVIC)
  • ARM Cortex-M0 co-processor, running at frequencies up to 150 MHz
  • Hardware floating-point unit
  • Non-maskable Interrupt (NMI) input
  • JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points
  • System tick timer
  • Serial GPIO (SGPIO) interface
  • Quad SPI Flash Interface (SPIFI) with four lanes and total data rates of up to 40 MB per second
  • 10/100T Ethernet MAC with RMII and MII interfaces and DMA support for high throughput at low CPU load
  • One High-speed USB 2.0 Host/Device/OTG interface with DMA support and on-chip high-speed PHY
