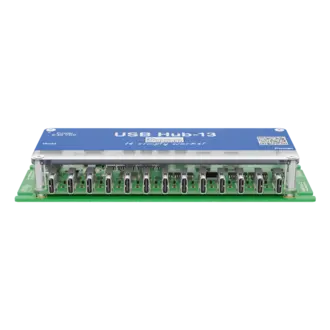

Image of a USB Hub-13 device featuring a blue top panel labeled with "USB Hub-13" and "It simply works!" Above it, the power input specifications are listed. The hub includes numerous USB ports on its side and is mounted on a green circuit board.

1.Overview
2.Key features
1. 2.1.Upstream port isolation
2. 2.2.Overload protection
3. 2.3.Compact and flexible design
3.Use case
1. 3.1.Gang programming
4.Technical specifications
5.Product images
6.FAQ

Overview

The SEGGER USB Hub-13 is a compact, industrial-grade USB hub featuring 13 downstream USB-C ports. It is ideal for connecting multiple Flasher Compact units to a Flasher Hub-4 or a Flasher Hub-12, providing reliable power and data connections for production environments.

The hub supports a wide input range of 8–30 V, and its flexible design allows easy mounting. For applications with minimal space, the top plexiglass plate can be removed, further reducing its footprint without compromising performance.

Key features

A white illustration of a bundle of wires stands out against a blue circular background. The wires are partially encased, suggesting a focus on connectivity or electrical components.

Upstream port isolation

The upstream port provides basic isolation (3 kV DC for 1 second), protecting a host system from potential electrical disturbances.

Overload protection

Each downstream port includes an overload limit to safeguard connected devices and ensure reliable operation in industrial settings.

A blue circular icon featuring a simple white graphic of a horizontal line with measurement markings below it, symbolizing a ruler or measuring tool. The design conveys concepts of measurement and precision.

Compact and flexible design

The USB Hub-13 features a space-saving form factor. Its removable top plexiglass plate allows installation in tight spaces while maintaining rugged performance.

Use case

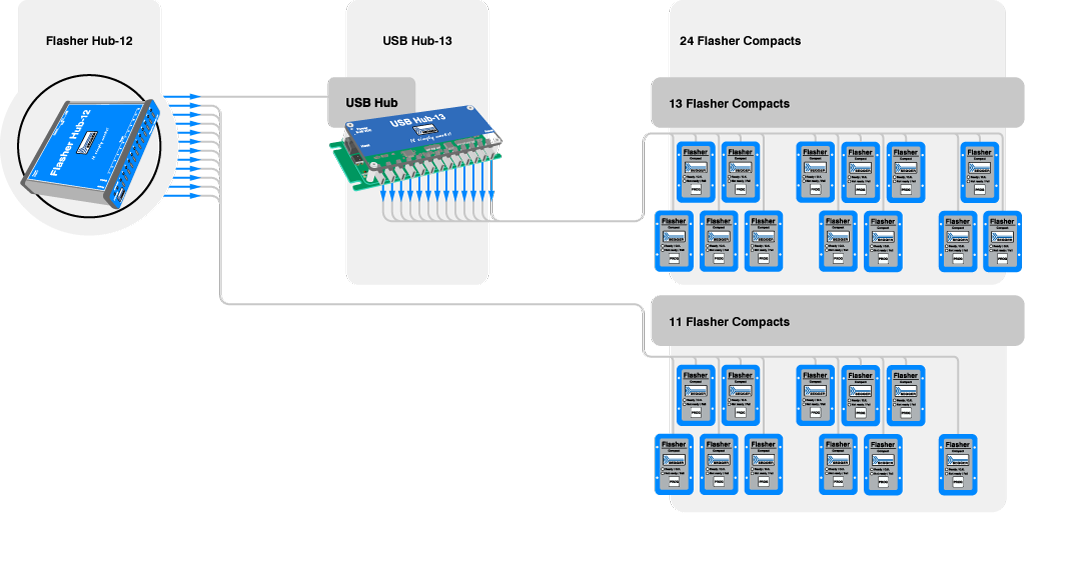

A diagram illustrates the connections between a Flasher Hub-12 and a USB Hub-13. The USB Hub branches into two groups: one with 13 Flasher Compacts and another with 11 Flasher Compacts, totaling 24 units. Each component is clearly labeled for identification.

Gang programming

Gang programming is used to increase the throughput of a programming station. The SEGGER USB Hub-13 provides a tested USB hub to simply expand the number of available USB ports to connect up to 24 Flasher Compacts with a Flasher Hub-4 or Flasher Hub-12.

Technical specifications

Specifications
Power supply	8-30 VDC, reverse polarity protected, max. 60 W^[1]
Host interface	USB-C 2.0 High Speed (Upstream), isolation 3.75 kV RMS (basic isolation)^[2]
USB Flasher interface	13 × USB-C 2.0 High Speed (Downstream)
Operating temperature	+ 5 °C ... + 60 °C
Storage temperature	- 20 °C ... + 65 °C
Relative humidity (non-condensing)	< 90 % rH
Size (without cables)	162 mm × 61 mm × 25 mm
Weight (without cables)	125 g

[1] Depends on current consumption of connected downstream devices. For maximum load, the input supply must be 12 VDC or more.

[2] Safety considerations:
The SEGGER USB Hub-13 provides basic isolation only and is not intended for use with hazardous voltages without additional protective measures to prevent the risk of electric shock or fire.

The USB Hub-13's basic isolation can withstand high voltages, as specified in the relevant technical data section. To ensure user safety when working with potentially hazardous voltages, a secondary protective measure is mandatory in case the primary insulation barrier fails. This is known as double or reinforced insulation, and the method of achieving it depends on the specific use case or application setup.

Always consult local safety regulations to ensure that all applicable requirements are met.

Product images

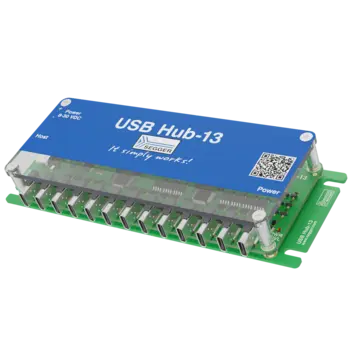

An electronic USB hub labeled "USB Hub-13," featuring multiple USB-C ports for connecting devices. The hub is mounted on a green circuit board with a blue top surface. It is designed to facilitate connections for various USB devices.

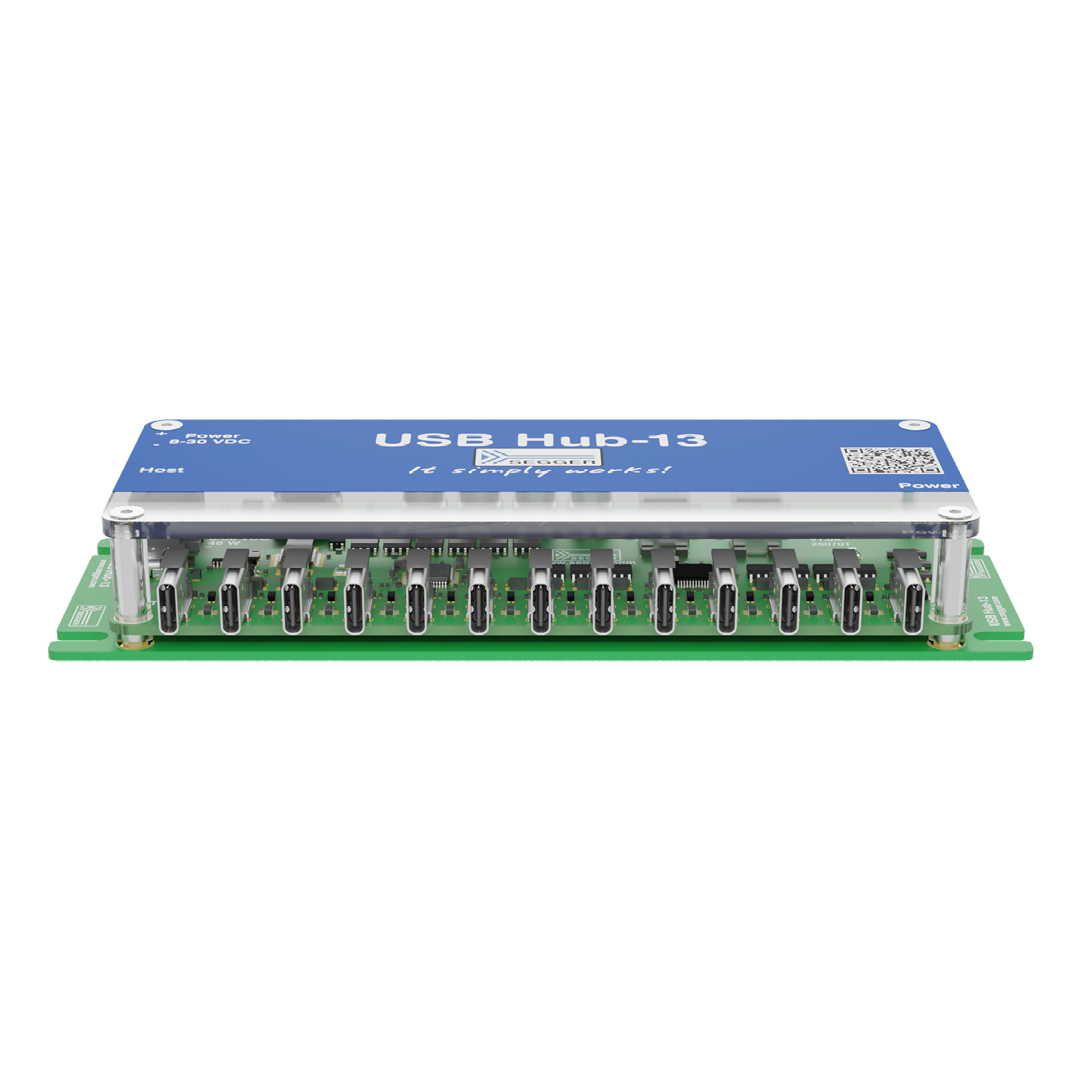

A USB hub labeled "USB H-U-B-13" with a blue top and multiple ports is shown. The circuit board features several components, including four round connectors, small chips, and a power input. The design is compact and intended for connecting multiple USB devices.

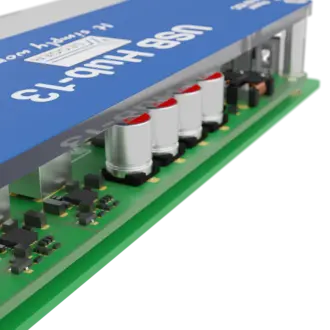

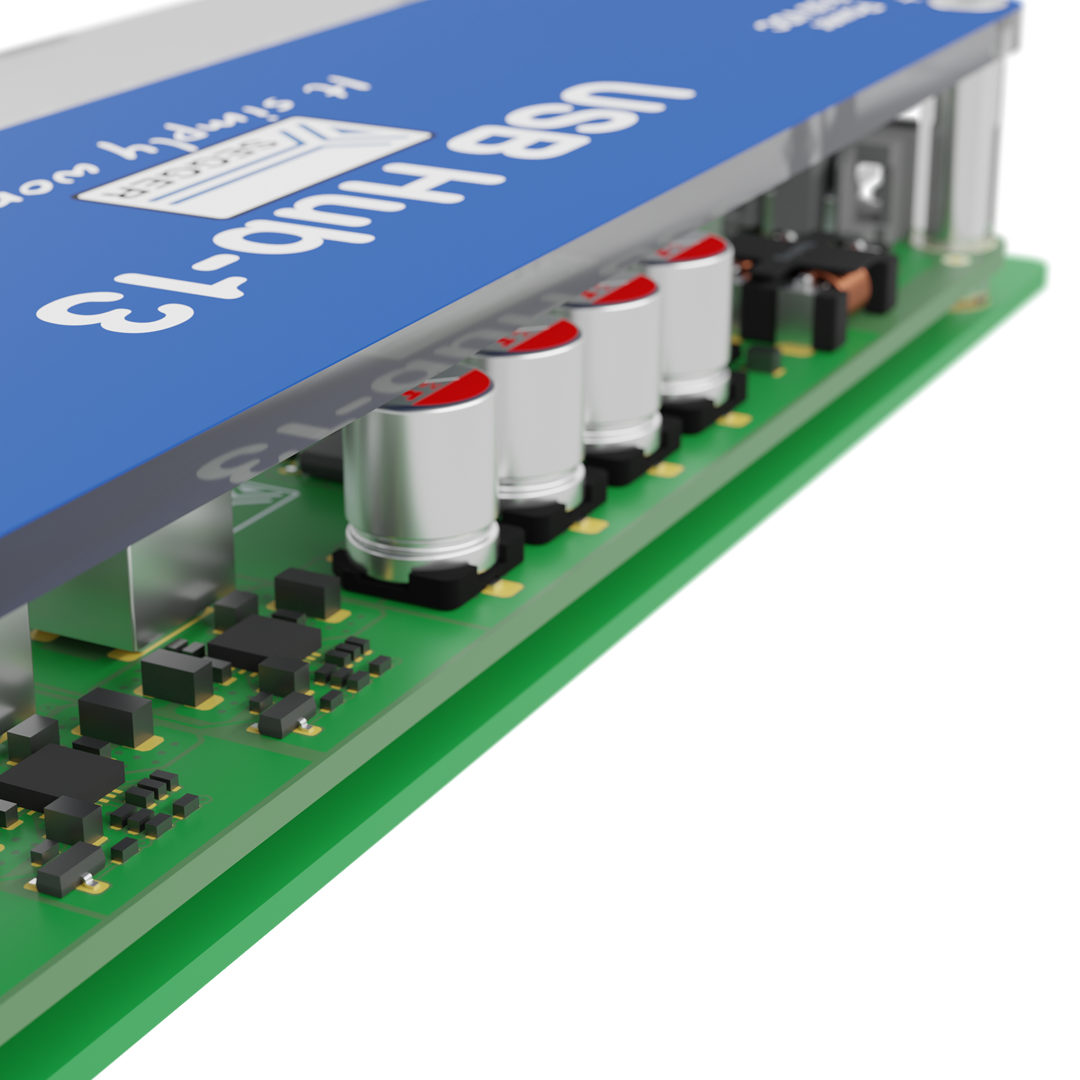

A USB hub with a blue top, labeled "USB Hub-13," features several metallic components and capacitors on a green circuit board. The design suggests it is intended for connecting multiple USB devices.

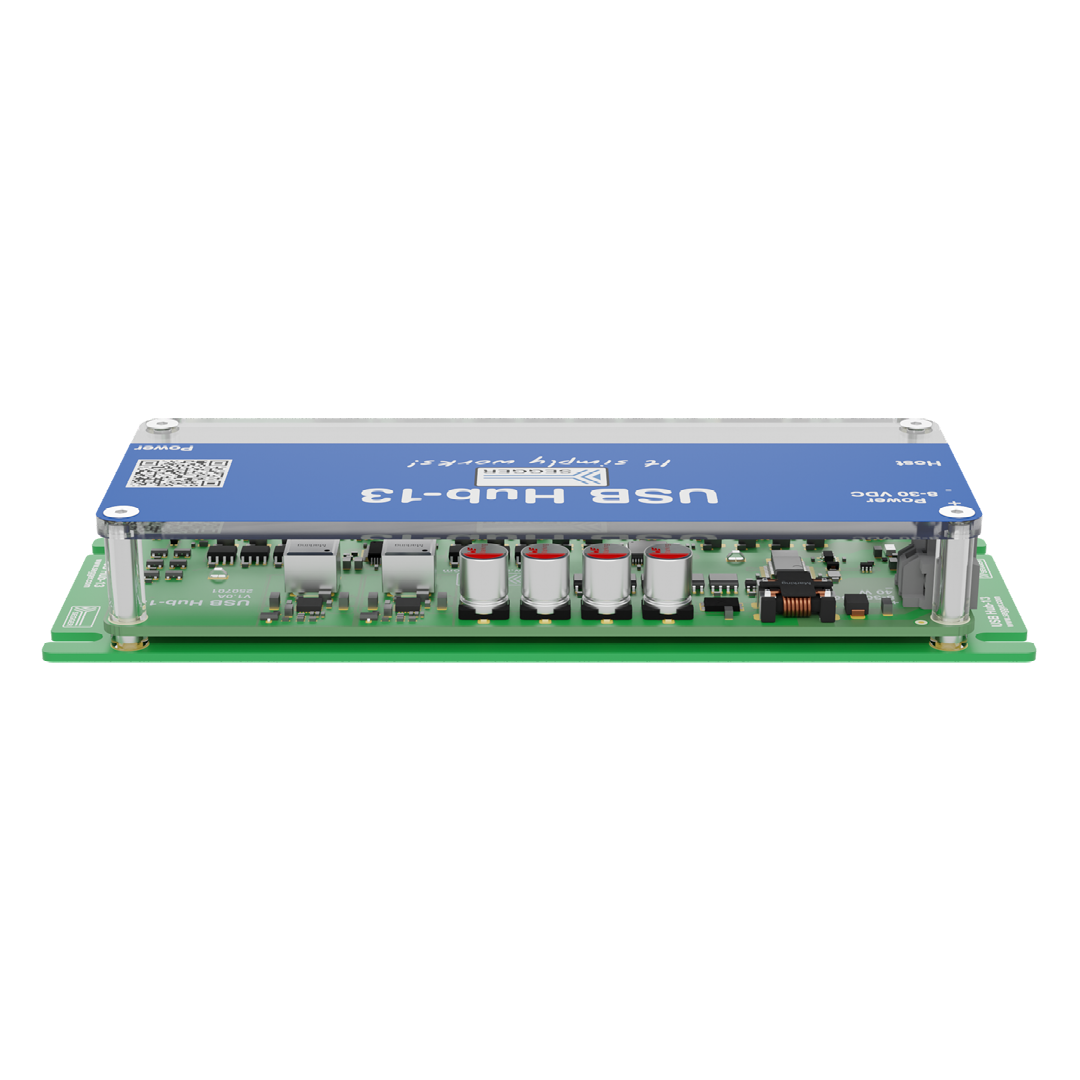

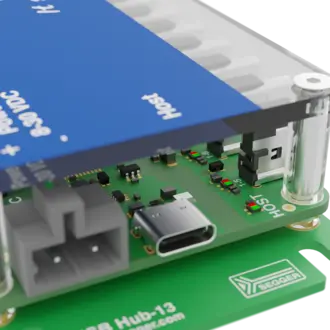

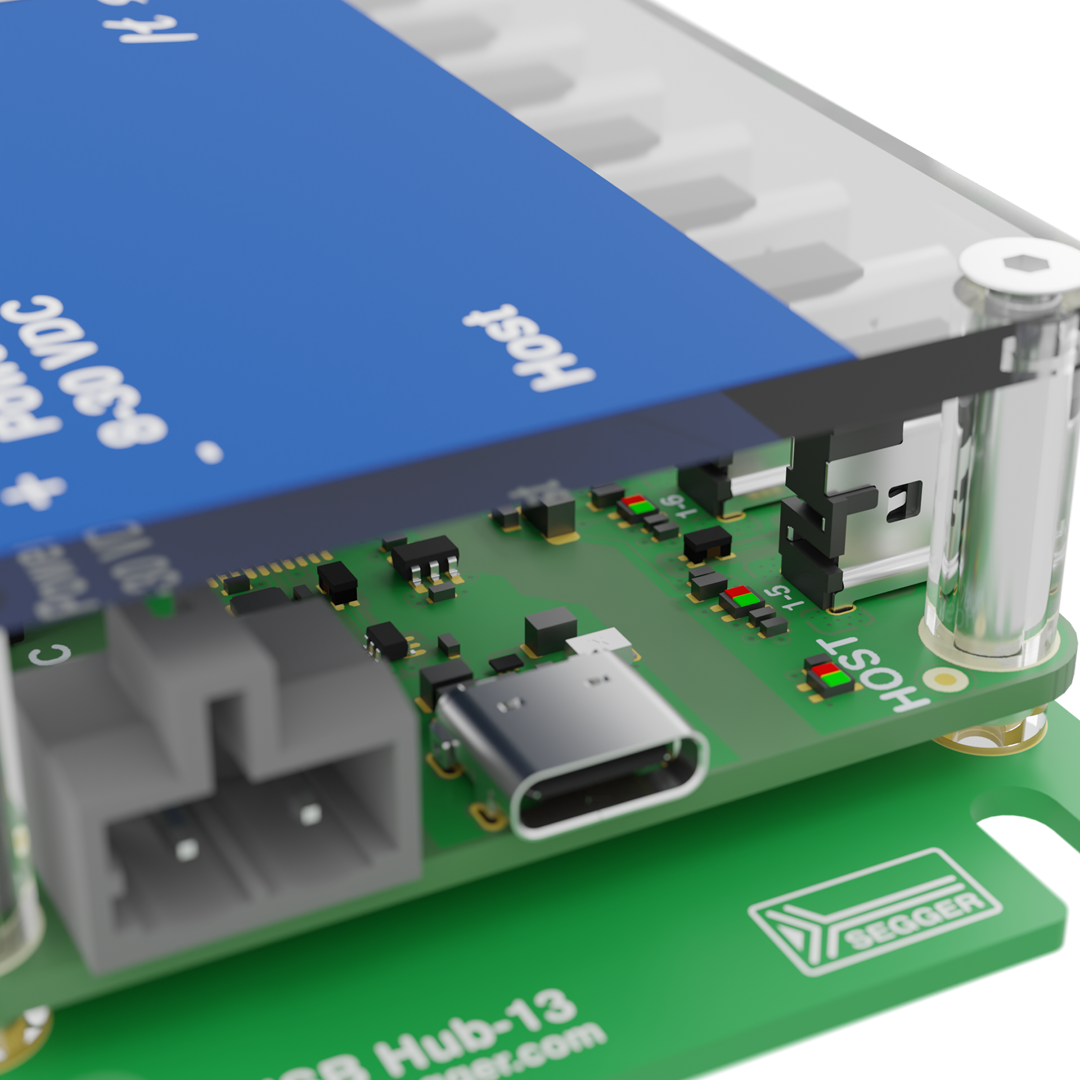

A close-up view of a circuit board featuring a blue component labeled "Host" on top. The board includes various electronic components, connectors, and a USB-C port. It is marked with other small labels and has a green base, suggesting it's part of a device or hub system.
