ST7 Adapter

Adapter to program ST7 devices

Compare Flasher adapters

Production Tools Icon

Overview

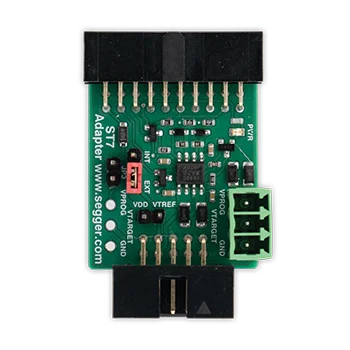

A green electronic adapter board featuring various connection pins, including JTAG and power ports. The board has multiple small components and labels indicating functionalities such as VDD, VTREF, and GND. The product is designed for programming and debugging microcontrollers.

The ST7 Adapter enables SEGGER's Flasher single-unit programmers to program ST7 devices. It provides the required programming voltage, signal routing, and 10-pin target interface for reliable ST7 microcontroller programming in production environments.

Specifications

VPROG, VTARGET: 2.7 V-15 V, max. output current: 500 mA
PIN19: 3.3 V - 5 V
VIO (VTREF) range: 1.5 V - 5 V

Pinout & schematics

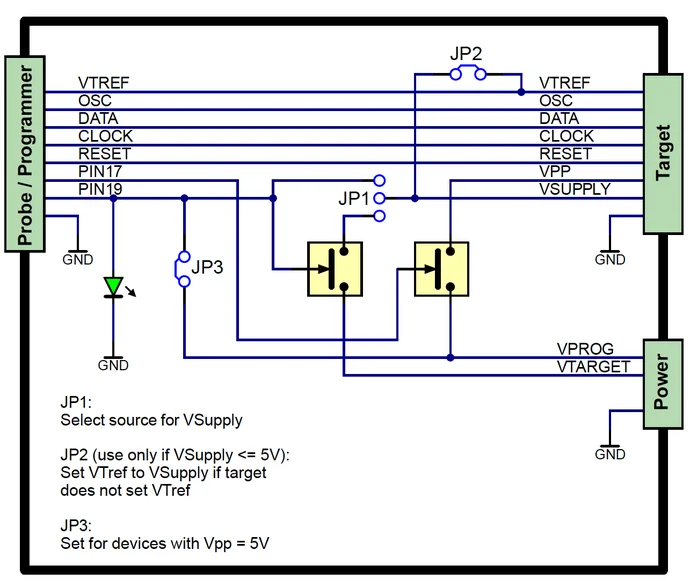

Schematic diagram illustrating connections between a probe/programmer and a target device. Key components include voltage references (VTREF, VSUPPLY), data and control signals (DATA, CLOCK, RESET), and jumpers (JP1, JP2, JP3) for configuration settings related to power supply and device programming.

Suitable products

Flasher

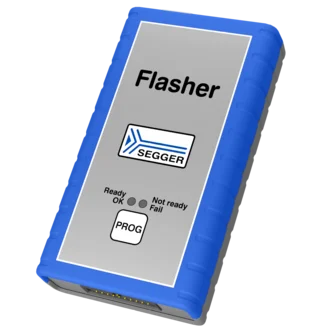

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.
