  • J-Trace Mictor 38 Adapter

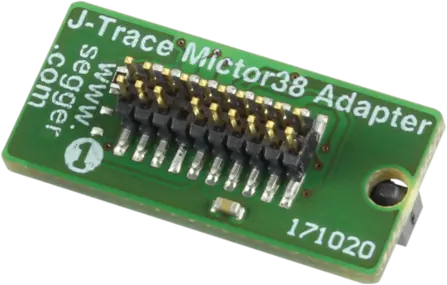

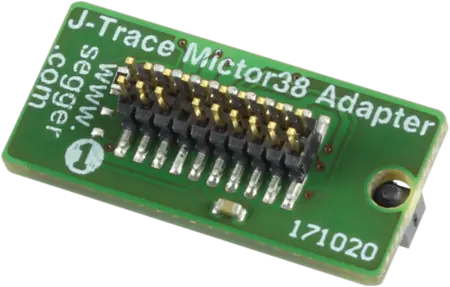

    J-Trace Mictor 38 Adapter

    The J-Trace Mictor 38 Adapter connects from the standard 20-pin connector to the 38-pin Mictor connector.

    Buy now
    Compare J-Trace models
    Documentation
    SEGGER Debug & Trace Probes

    Overview

    J-Trace Mictor 38 Adapter
    J-Trace Mictor 38 Adapter

    The J-Trace Mictor 38 Adapter connects to the 38-pin Mictor connector. The pinout follows the single target connector pinout specification as defined in the Arm "ETM Architecture Specification". The adapter connects the GND, JTAG and some trace pins to their counterparts on the 19-pin Cortex-M connector.

    Four trace data pins as well as the trace clock pin present on the Mictor connector are routed to the Cortex-M connector for trace. The 38-pin Mictor side of the adapter can be plugged either directly into the target side or via trace cable. The J-Trace side connects to J-Trace via half-pitch flat cable. Take a look at the J-Trace overview for more information on trace.

    J-Link_Mictor38_Adapter_Pinout

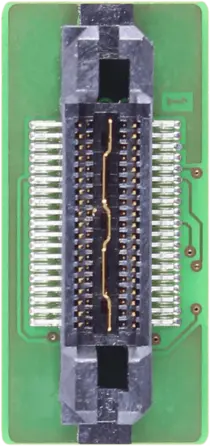

    j-trace-mictor-38-adapter-bottom-vert

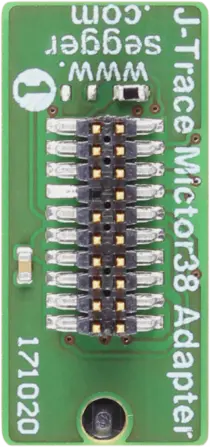

    j-trace-mictor-38-adapter-top-vert
    PinSignal
    5GND
    6TRACECLK
    9nRESET
    11TDO
    12,14VTref
    15TCK
    17TMS
    19TDI
    21TRST
    24TRACEDATA3
    26TRACEDATA2
    28TRACEDATA1
    38TRACEDATA0
