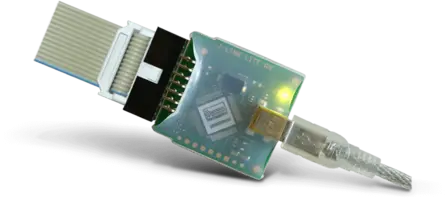

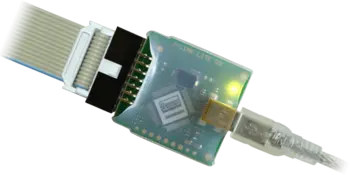

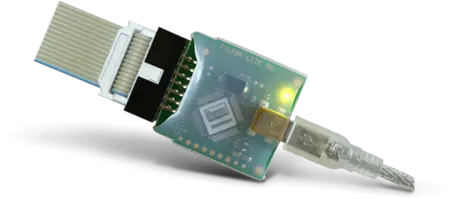

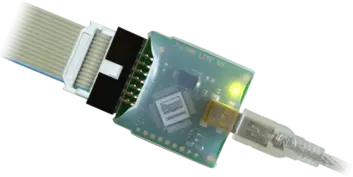

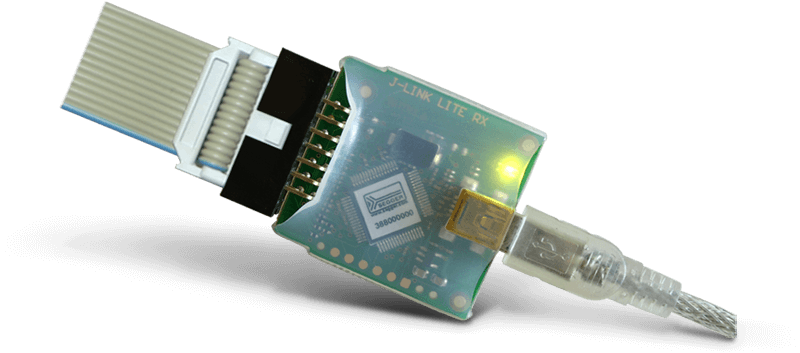

J-Link Lite RX is a specific OEM-version of SEGGER J-Link Lite which is designed to be used with Renesas RX600 series MCUs. If you are selling evaluation-boards, J-Link Lite RX is an inexpensive debug probe solution for you. Your customer receives a widely acknowledged JTAG debug probe which allows him to start right away with his development.
J-Link Lite RX is fully compatible with Renesas E1 emulator and works with Renesas HEW and IAR Embedded Workbench for RX (EWRX).
J-Link Lite RX uses the same software package for Renesas RX as the regular J-Link. For more detailed information about the J-Link RX software package and how to install it, please refer to J-Link Renesas RX support.
If you are interested in J-Link Lite, please contact email@example.com.
J-Link LITE RX supports all RX-CPUs with RX600 core and JTAG interface. The following devices / device groups are known to be compatible:
- RX610 Group via JTAG
- RX621 Group via JTAG
- RX62N Group via JTAG
- RX62T Group via JTAG
- RX630 Group via JTAG
- RX631 Group via JTAG
- RX63N Group via JTAG
- RX63T Group via JTAG
If your device is not listed here, please do not hesitate to get in touch with us.
|Supported OS||Microsoft Windows 2000 |
Microsoft Windows XP
Microsoft Windows XP x64
Microsoft Windows 2003
Microsoft Windows 2003 x64
Microsoft Windows Vista
Microsoft Windows Vista x64
Microsoft Windows 7
Microsoft Windows 7 x64
Microsoft Windows 8
Microsoft Windows 8 x64
Microsoft Windows 10
Microsoft Windows 10 x64
macOS 10.5 and higher
|Electromagnetic compatibility (EMC)||EN 55022, EN 55024|
|Operating temperature||+5°C ... +60°C|
|Storage temperature||-20°C ... +65 °C|
|Relative humidity (non-condensing)||Max. 90% rH|
|Size (without cables)||44mm x 34mm x 12mm|
|Weight (without cables)||9g|
|USB interface||USB 2.0|

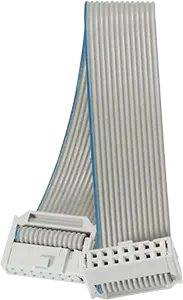

|Target interface||JTAG 14-pin|
|JTAG/SWD Interface, Electrical|
|Power supply||USB powered Max. 50mA + Target Supply current.|
|Target interface voltage (VIF)||3.3V|
|LOW level input voltage (VIL)||Max. 40% of VIF|
|HIGH level input voltage (VIH)||Min. 60% of VIF|
|JTAG/SWD Interface, Timing|
|Data input rise time (Trdi)||Max. 20ns|
|Data input fall time (Tfdi)||Max. 20ns|
|Data output rise time (Trdo)||Max. 10ns|
|Data output fall time (Tfdo)||Max. 10ns|
|Clock rise time (Trc)||Max. 10ns|
|Clock fall time (Tfc)||Max. 10ns|
J-Link Lite CortexM is only delivered and supported as part of a starter kit, which includes an evaluation board. It is not sold separately. It may only be used with the evaluation board it came with. Support is given via the eval board manufacturer and via SEGGER Forum.
