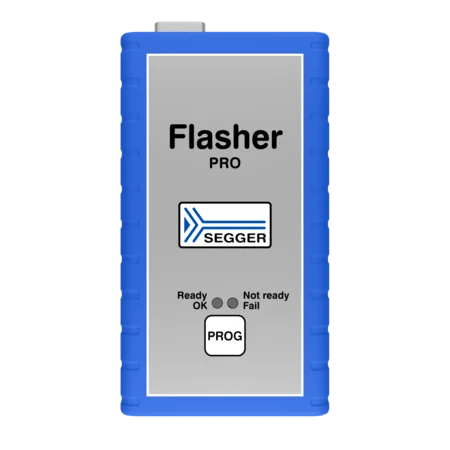

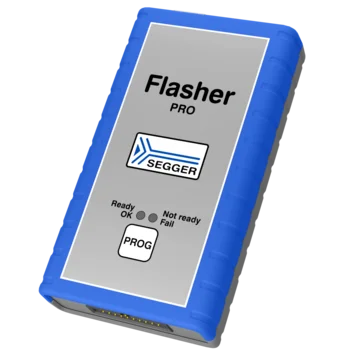

Flasher PRO

Flash Programmer for ARM7/9/11, Cortex, RX and PPC cores

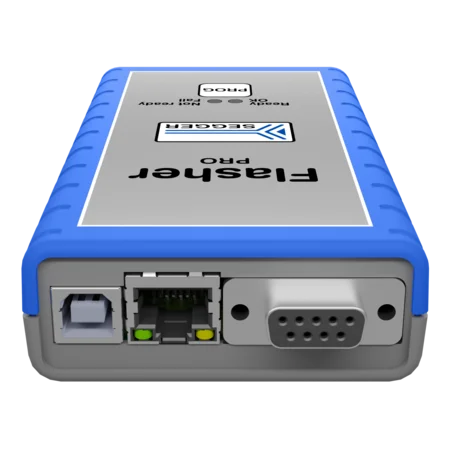

Flasher PRO is a programming tool for microcontrollers with on-chip or external Flash memory and ARM, RX or PPC core. Flasher PRO is designed for programming flash targets with the J-Flash software or stand-alone. In addition to that Flasher PRO has all of the J-Link functionality. Flasher PRO connects via USB, Ethernet or via RS232 interface to a PC, running Microsoft Windows 2000, Windows XP, Windows 2003, Windows Vista, Windows 7, Windows 8 or Windows 10 and has a built-in 20-pin JTAG connector, which is compatible with the standard 20-pin connector defined by ARM.

Features

  • Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
  • Ethernet interface
  • Supports internal and external flash devices
  • Wide range of devices are supported. For a complete list, please click here
  • Free software updates1, 2 years of support
  • 128 MB internal NAND flash, used for storing configuration and data files
  • Serial in target programming supported
  • Data files can be updated as mass storage or via J-Flash
  • Target interface: JTAG / SWD
  • No power supply required, powered through USB
  • Can be used as J-Link (JTAG emulator) with a download speed of up to 1 MByte/second
  • Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself
  • ASCII command interface to control Flasher without the use of PC program
  • Authorized Flashing allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production

1As a legitimate owner of a SEGGER Flasher, you can always download the latest software free of charge. Though not planned and not likely, we reserve the right to change this policy. Note that older models may not be supported by newer versions of the software. Typically, we support older models with new software at least 3 years after end of life.

Documentation download       Subscribe to Flasher software notification

Download software and documentation package (Flasher PRO uses the same software and documentation package as J-Link)

Pricing


Package content

Flasher PRO is delivered with the following components:
Flasher PRO Ethernet cable 20-pin, 0.1" target ribbon cable RS232 cable 1:1 female / male USB cable USB power supply


Available software

In order to setup Flasher PRO for stand-alone operation, you need the J-Flash software from the J-Link software and documentation package. The J-Link software and documentation package is available for download on our website: Software and documentation package download

Supported CPU cores / devices

Flasher PRO supports a wide range of cores/devices. For a complete list, please click here.

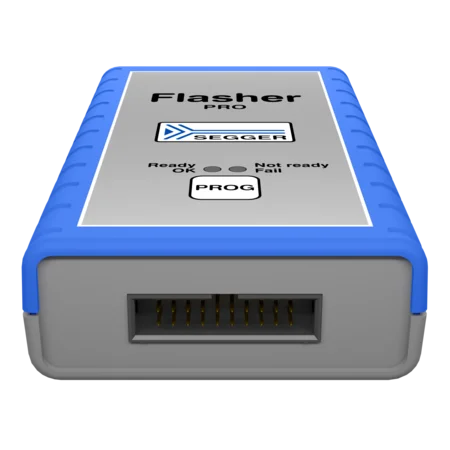

JTAG interface connection (20 pin)

There is a standard 20 pin connector defined by ARM. Flasher PRO has a built-in 20-pin JTAG connector, which is compatible with this standard.

JTAG interface connector signals:

Pin Signal Type Description
1 VTref Input This is the target reference voltage. It is used to check if the target has power, to create the logic-level reference for the input comparators and to control the output logic levels to the target. It is normally fed from Vdd of the target board and must not have a series resistor.
2 Vsupply NC This pin is not connected in Flasher PRO. It is reserved for compatibility with other equipment. Connect to Vdd or leave open in target system.
3 nTRST Output JTAG Reset. Output from Flasher PRO to the Reset signal of the target JTAG port. Typically connected to nTRST of the target CPU. This pin is normally pulled HIGH on the target to avoid unintentional resets when there is no connection.
5 TDI Output JTAG data input of target CPU.
It is recommended that this pin is pulled to a defined state on the target board.
Typically connected to TDI on target CPU.
7 TMS Output JTAG mode set input of target CPU.
This pin should be pulled up on the target.
Typically connected to TMS on target CPU.
9 TCK Output JTAG clock signal to target CPU.
It is recommended that this pin is pulled to a defined state on the target board.
Typically connected to TCK on target CPU.
11 RTCK Input Return test clock signal from the target.
Some targets must synchronize the JTAG inputs to internal clocks. To assist in meeting this requirement, you can use a returned, and retimed, TCK to dynamically control the TCK rate. Flasher PRO supports adaptive clocking, which waits for TCK changes to be echoed correctly before making further changes. Connect to RTCK if available, otherwise to GND.
13 TDO Input JTAG data output from target CPU.
Typically connected to TDO on target CPU.
15 RESET I/O Target CPU reset signal. Typically connected to the RESET pin of the target CPU, which is typically called "nRST", "nRESET" or "RESET".
17 DBGRQ NC This pin is not connected in Flasher PRO.
It is reserved for compatibility with other equipment to be used as a debug request signal to the target system.
Typically connected to DBGRQ if available, otherwise left open.
19 5V-Target supply Output This pin can be used to supply power to the target hardware.

Notes:

All pins marked NC are not connected inside Flasher PRO. Any signal can be applied here; Flasher PRO will simply ignore such a signal.

Pins 4, 6, 8, 10, 12, 14, 16, 18, 20 are GND pins connected to GND in Flasher PRO. They should also be connected to GND in the target system.

Pin 2 is not connected inside Flasher PRO. A lot of targets have pin 1 and pin 2 connected. Some targets use pin 2 instead of pin 1 to supply VCC. These targets will not work with Flasher PRO, unless Pin 1 and Pin 2 are connected on the target's JTAG connector.

Pin 3 (TRST) should be connected to target CPUs TRST pin (sometimes called NTRST). Flasher PRO will also work if this pin is not connected, but you may experience some limitations when debugging. TRST should be separate from the CPU Reset (pin 15)

Pin 11 (RTCK) should be connected to RTCK if available, otherwise to GND.

Pin 19 (5V-Target supply) of the connector can be used to supply power to the target hardware. Supply voltage is 5V, max. current is 300mA. The output current is monitored and protected agains overload and short-circuit.

Power can be controlled via the J-Link commander. The following commands are available to control power:

Command Explanation
power on Switch target power on
power off Switch target power off
power on perm Set target power supply default to "on"
power off perm Set target power supply default to "off"


Specifications

Power Supply USB powered, 100mA for Flasher PRO. 500 mA if target is powered by Flasher PRO
USB Host Interface USB 2.0
RS232 Host Interface RS232 9-pin
Target Interface JTAG 20-pin (14-pin adapter available)
Serial Transfer Rate between Flasher PRO and Target Max. target interface (JTAG, ...) speed: 15MHz
Supported Target Voltage 1.8 - 5V
Current drawn from target voltage sense pin (VTRef) < 25µA
Target supply voltage 5V
Target supply current Max. 400mA
Operating Temperature + 5 °C ... + 60 °C
Storage Temperature - 20 °C ... + 65 °C
Relative Humidity (non-condensing) < 90% rH
Size (without cables) 121mm x 66mmx 30mm
Weight (without cables) 120g
Supported OS Microsoft Windows 2000
Microsoft Windows XP
Microsoft Windows XP x64
Microsoft Windows 2003
Microsoft Windows 2003 x64
Microsoft Windows Vista
Microsoft Windows Vista x64
Microsoft Windows 7
Microsoft Windows 7 x64
Microsoft Windows 8
Microsoft Windows 8 x64
Microsoft Windows 10
Microsoft Windows 10 x64


Target interfaces

Since Flasher PRO is compatible to J-Link it also supports the same target interfaces. Currently the following target interfaces are supported:
  • JTAG
  • SWD

For more information about the target interfaces please refer to J-Link - Interface description.
Please note that Flasher PRO currently does not support SWO.


Performance of MCUs with internal flash memory

The following table lists program and erase performance values for different controllers.
Microcontroller Size [KB] Program time* [sec]
Analog Devices 62 2.286
Atmel AT91SAM7S64 64 3.488
Atmel AT91SAM7S256 256 7.709
NXP LPC1768 512 8.559
NXP LPC2106 120 1.204
NXP LPC2129 248 2.916
NXP LPC2138 500 5.488
NXP LPC2148 500 5.632
NXP LPC2294 2048 15.976
NXP LPC2478 504 5.419
ST STM32F103ZE 512 18.763
ST STR711 272 5.476
ST STR912 544 12.907
TI TMS470R1B1M 1024 8.147
TI MSP432P401 256 0.50

* Pure programming time. Total time including erase + verify heavily depends on factors like: Sector size, erase speed of flash, if flash was empty (no erase necessary) or already programmed (erase necessary)

JTAG Speed

There are basically three types of speed settings:

  • Fixed JTAG speed
  • Automatic JTAG speed
  • Adaptive clocking

Fixed JTAG speed
The target is clocked at a fixed clock speed. The maximum JTAG speed the target can handle depends on the target itself. In general ARM cores without JTAG synchronization logic (such as ARM7-TDMI) can handle JTAG speeds up to the CPU speed, ARM cores with JTAG synchronization logic (such as ARM7-TDMI-S, ARM946E-S, ARM966EJ-S) can handle JTAG speeds up to 1/6 of the CPU speed. JTAG speeds of more than 10 MHz are not recommended.

Automatic JTAG speed
Selects the maximum JTAG speed handled by the TAP controller.

NOTE:
On ARM cores without synchronization logic, this may not work reliably, since the CPU core may be clocked slower than the maximum JTAG speed.

Adaptive clocking
If the target provides the RTCK signal, select the adaptive clocking function to synchronize the clock to the processor clock outside the core. This ensures there are no synchronization problems over the JTAG interface.

NOTE:
If you use the adaptive clocking feature, transmission delays, gate delays, and synchronization requirements result in a lower maximum clock frequency than with non-adaptive clocking. Do not use adaptive clocking unless it is required by the hardware design.
