SEGGER Evaluation Software for
TI AM335x Starter Kit

TI - am335x Starter Kit

Other Downloads

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

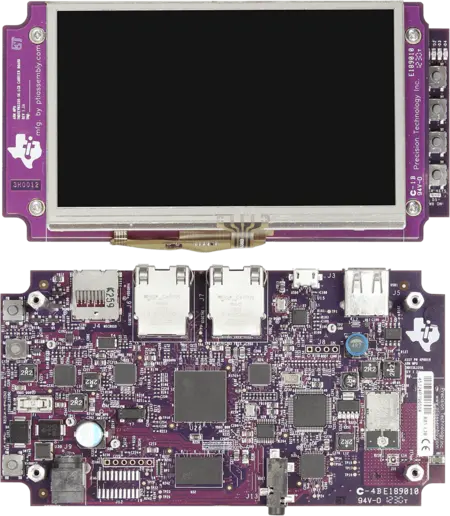

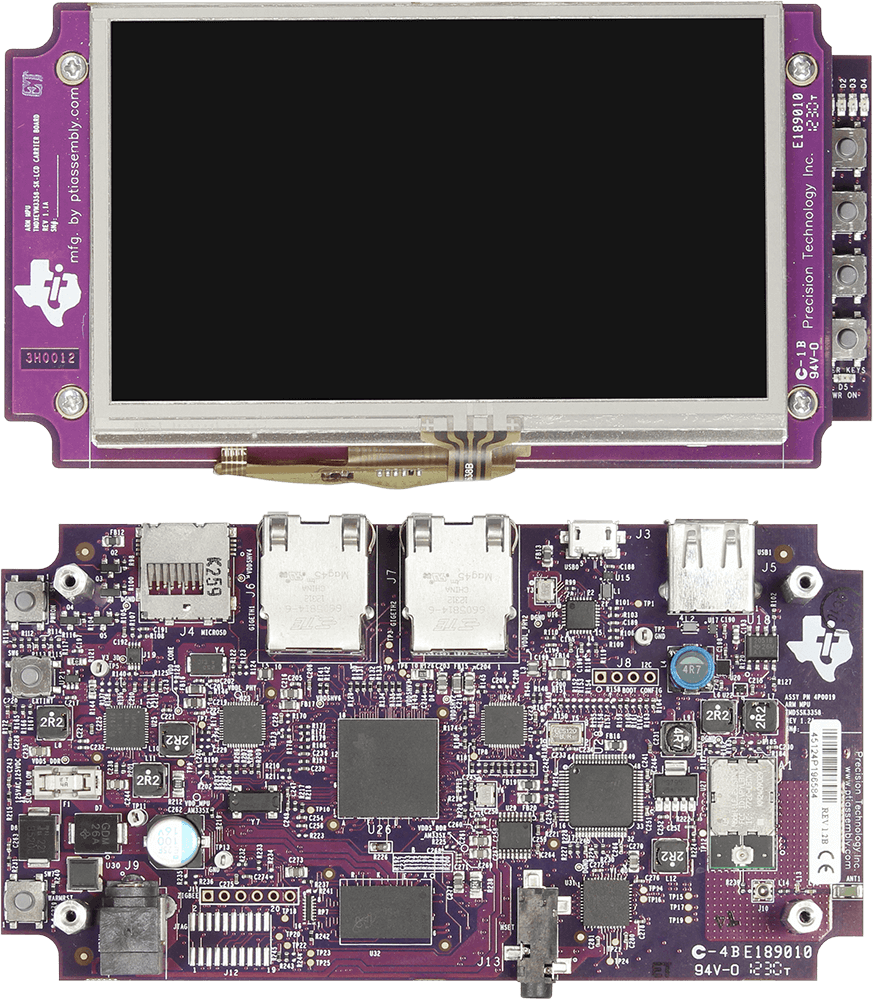

TI AM335x Starter Kit

  • 256MB DDR3
  • 4.3” Touch-screen LCD
  • Dual Gigabit Ethernet Ports with integrated switch
  • USB
  • USB-XDS100 emulator
  • Android navigation buttons
  • User configured LEDs
  • Audio Out


  • 800MHz ARM Cortex-A8 32-Bit RISC Microprocessor
  • NEON SIMD Coprocessor
  • 32KB of L1 Instruction and 32KB Data Cache with Single-Error Detection (parity)
  • 256KB of L2 Cache with Error Correcting Code (ECC)
  • mDDR(LPDDR), DDR2, DDR3, DDR3L Support
  • General-Purpose Memory Support (NAND, NOR, SRAM) Supporting Up to 16-bit ECC
  • SGX530 3D Graphics Engine
  • LCD and Touchscreen Controller
  • Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)
  • Real-Time Clock (RTC)
  • Two USB 2.0 High-Speed OTG Ports with Integrated PHY
  • 10, 100, 1000 Ethernet Switch Supporting Up to Two Ports
  • Two Controller Area Network Ports (CAN)
  • Six UARTs, Two McASPs, Two McSPI, and Three I2C Ports
  • 12-Bit Successive Approximation Register (SAR) ADC
  • Crypto Hardware Accelerators (AES, SHA, PKA, RNG)
