    SEGGER Evaluation Software for Silicon Labs EFM32 Giant Gecko DK

    Silicon Labs - efm32 Giant Gecko dk

    SEGGER Evaluation Software

    Included components:

    ProductSupported features

    embOS

    Core + Profiling

    emFile

    BASE + RAMDisk

    emUSB-Device

    BASE + Bulk, CDC, HID, MSD

    emWin

    BASE + AntiAliasing, Font Converter, Memory Devices, Simulation

    SEGGER Evaluation Software available upon request

    Other downloads

    Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

    DownloadEmbedded Studio

    SEGGER Notifications

    Subscribe to SEGGER Evaluation Software Notifications

    Data Sheets

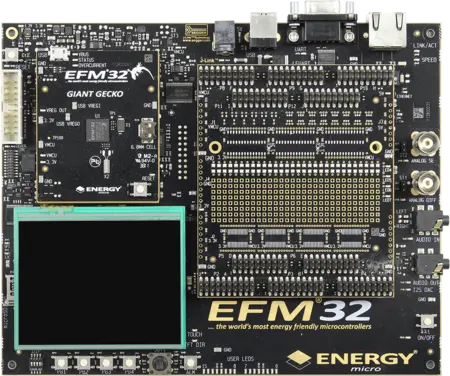

    EFM32 Giant Gecko DK

    • EFM32GG990F1024 MCU with 1 MB Flash and 128 KB SRAM.
    • Advanced Energy Monitoring system for precise current tracking.
    • Special hardware configuration for isolation of the MCU power domain.
    • Replaceable prototyping board for quick custom application development.
    • Full feature USB debugger / emulator with trace support and debug out functionality.
    • 3.5-inch TFT-LCD 320x240 pixel RGB color display with resistive touch film.
    • Smart Board controller handles configuration and signal routing.
    • Single ended and differential ADC inputs.
    • Line-in stereo audio input amplifier.
    • Line-out stereo audio output amplifier and I2S DAC.
    • 1 x RS232 Serial Port (DSUB-9).
    • 10/100 Mbps Ethernet MAC+PHY with SPI interface
    • MicroSD card reader (SPI mode).
    • 2Meg x 16 (4MB) PSRAM with 70ns access time.
    • 8Meg x 16 (16MB) NOR Flash with 90ns access time.
    • 2Kb I2C EEPROM.
    • Temperature sensor with I2C interface.
    • 5 way joystick.
    • 4 User buttons, 4-bit DIP switch and 16 user LEDs.
    • USB Micro-AB (OTG) connector
    • 6.8mm coin cell holder for backup-RTC

    EFM32GG990F1024

    • High Performance 32-bit processor @ up to 48 MHz
    • Memory Protection Unit
    • Wake-up Interrupt Controller
    • Flexible Energy Management System
    • 1024 KB Flash
    • 128 KB RAM
    • Up to 90 General Purpose I/O pins
    • 12 Channel DMA Controller
    • 12 Channel Peripheral Reflex System for autonomous inter-peripheral signaling
    • Hardware AES with 128/256-bit keys in 54/75 cycles
    • 3× Universal Synchronous/Asynchronous Receiver/Transmitter
    • UART/SPI/SmartCard (ISO 7816)/IrDA (USART0)/I2S (USART1+USART2)
    • Integrated LCD Controller for up to 8×36 segments
    • External Bus Interface for up to 256 MB of external memory mapped space
    • Ultra low power precision analog peripherals
    • Ultra efficient Power-on Reset and Brown-Out Detector
    • 2-pin Serial Wire Debug interface
    • Single power supply 1.8 - 3.8 V
