SEGGER Evaluation Software for RISC-V Andes Technology ADP-XC7K160

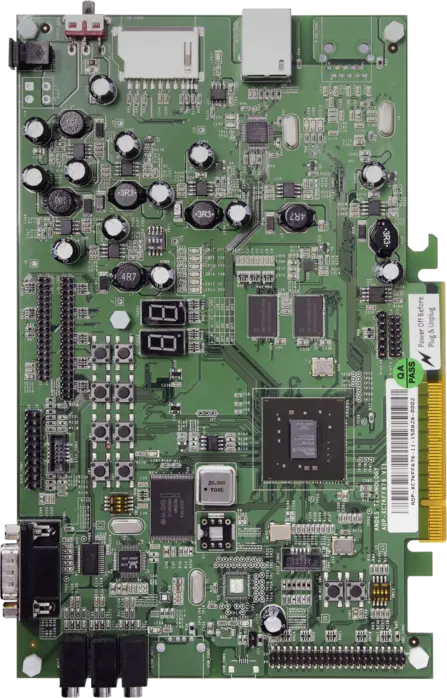

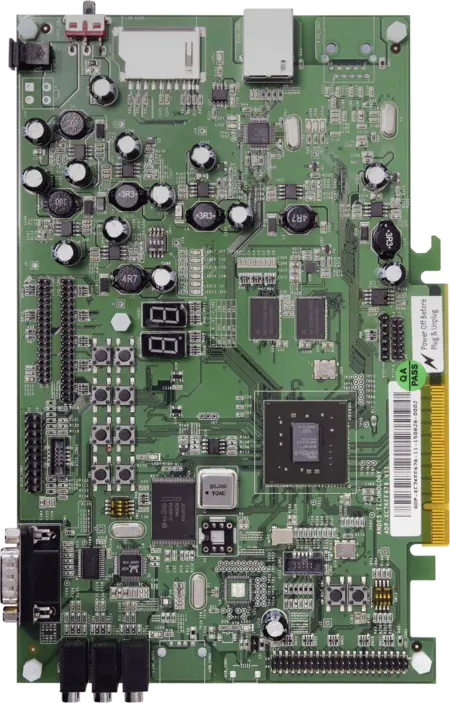

Andes Technology ADP-XC7K160 board

SEGGER Evaluation Software

Included components:

ProductSupported features

embOS

Core + Profiling

SEGGER Evaluation Software available upon request

Other downloads

Download embOS-Classic for RISC-V AE350 N25F and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

Andes Technology ADP-XC7K160

  • Xilinx Kintex-7 FPGA XC7K160T/410T
  • Encrypted Bitstream support
  • 1 GB on-board DDR3*-800 SDRAM
  • 128MB on-board NOR flash; 64MB for FPGA configuration, and 64MB for system storage
  • 2MB SPI Flash
  • 16KB I2C EEPROM
  • 10/100 Ethernet RJ45 port
  • DB9 UART port
  • SD memory card slot
  • IDE/GPIOs connector
  • 10 and 20 pins AICE ports
  • 8 user defined push buttons
  • LCD module connector
  • MIC-in, Line-in, and Line-out with AC97 audio codec
  • Two 7-segment LED displays

N25F FPGA

  • RISC-V RV32IMACFD Instructions
  • Andes Extended Instructions
  • Andes Custom Extension™ (ACE)
  • 3.58 Coremark/MHz, 1.96 DMIPS/MHz
  • 5-stage pipeline
  • Physical Memory Protection
  • 4KB to 64KB I-Cache & D-Cache
  • 4KB to 16MB ILM & DLM
  • Soft-error protection: ECC or parity for I-Cache and D-Cache, ILM and DLM with SRAM interface
  • Implements RISC-V PLIC specification
