SEGGER Evaluation Software for
Toshiba TT M4G9 V01

Toshiba M4G9

Other Downloads

Download   embOS trial for Toshiba TT_M4G9_V01 and SEGGER Embedded Studio

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

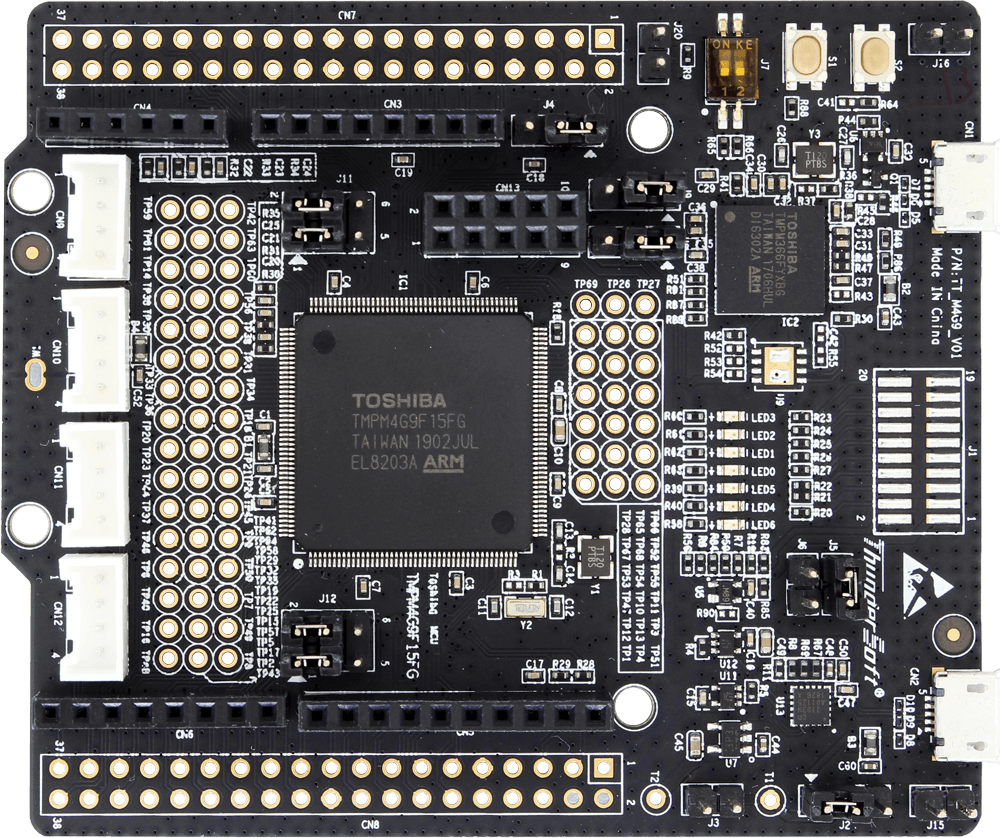

Toshiba TT M4G9

  • Toshiba TMPM4G9 microcontroller
  • Flexible power supply: USB, VBUS or external source 5 V
  • 2.54mm pitch 3-pin jumper connector for power supply 3.3V or 5V select
  • 4 extension – Arduino™ Uno connectivity, Extension headers, Motor connection header, SeeedGrove connection header, Compatible with a wide range of commercially available shields.
  • Power LED, 2 LEDs for DAP and 4 LEDs for user
  • 2 Push-Switches: Reset and User
  • 2 DIP-Switches for User
  • DAP-LINK debugger and programmer with SWD connector
  • USB Interfaces supported
  • Built-in USB drag 'n' drop FLASH programmer
  • Arm® Mbed™-Enabled

TMPM4G9

  • Arm®32-bit Cortex®-M4 CPU, 160 MHz max CPU frequency
  • 194KB RAM
  • 1536KB Flash
  • TSPI (9)
  • I2C (5)
  • UART (8)
  • PWM (13)
  • 12bit ADC (24)
  • 8bit DAC (2)
  • GPIO (150)
