SEGGER Evaluation Software for
Toshiba TT M3HQ V01

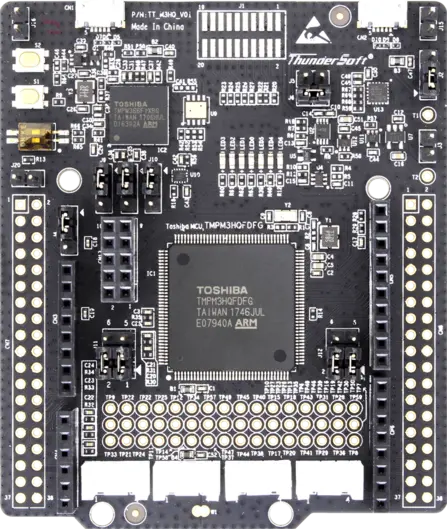

Toshiba M3HQ

Other Downloads

Download   embOS trial for Toshiba TT_M3HQ_V01 and SEGGER Embedded Studio

SEGGER Notifications

   to SEGGER Evaluation Software Notifications

Data Sheets

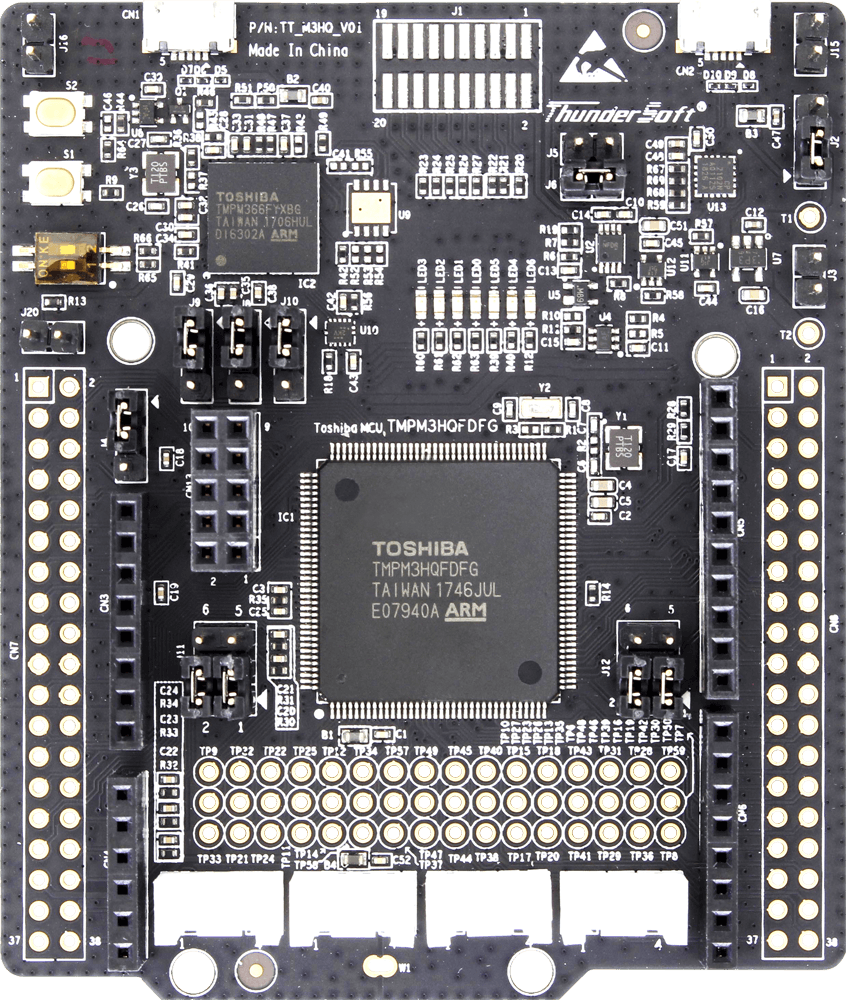

Toshiba TT_M3HQ

  • Toshiba TMPM3HQ microcontroller
  • Flexible power supply: USB, VBUS or external source 5V
  • 2.54mm pitch 3-pin jumper connector for power supply 3.3V or 5V select
  • 4 extension – Arduino™ Uno connectivity, Extension headers, Motor connection header, SeeedGrove connection header, Compatible with a wide range of commercially available shields
  • Power LED, 2 LEDs for DAP and 4 LEDs for user
  • 2 Push-Switches: Reset and User
  • 2 DIP-Switches for User
  • DAP-LINK debugger and programmer with SWD connector
  • USB Interfaces supported
  • Built-in USB drag 'n' drop FLASH programmer
  • Arm® Mbed™-Enabled

TMPM3HQ

  • Arm®32-bit Cortex®-M3 CPU, 80 MHz max CPU frequency
  • 64KB RAM
  • 512KB Flash
  • SPI (5)
  • I2C (4)
  • UART (6)
  • PWM (8)
  • 12bit ADC (21)
  • 8bit DAC (2)
  • GPIO (129)
