  • Renesas EK-RA6M3G for RA MCUs
    logo renesas frame

    SEGGER Evaluation Software for Renesas EK-RA6M3G for RA MCUs

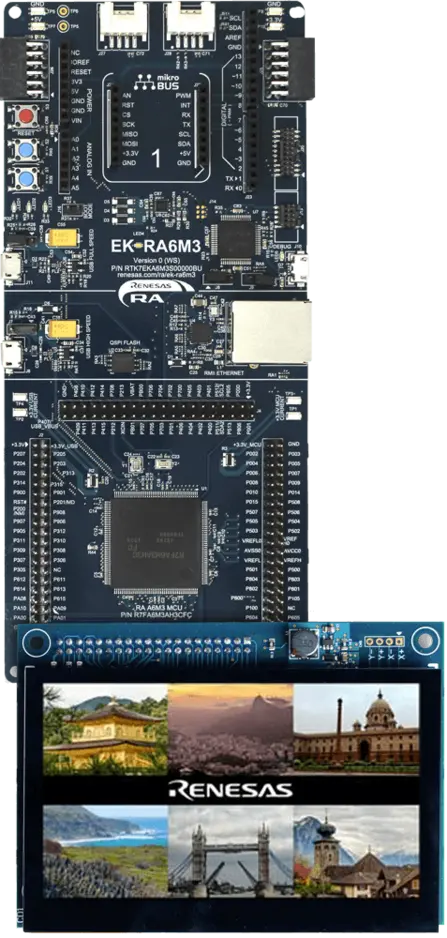

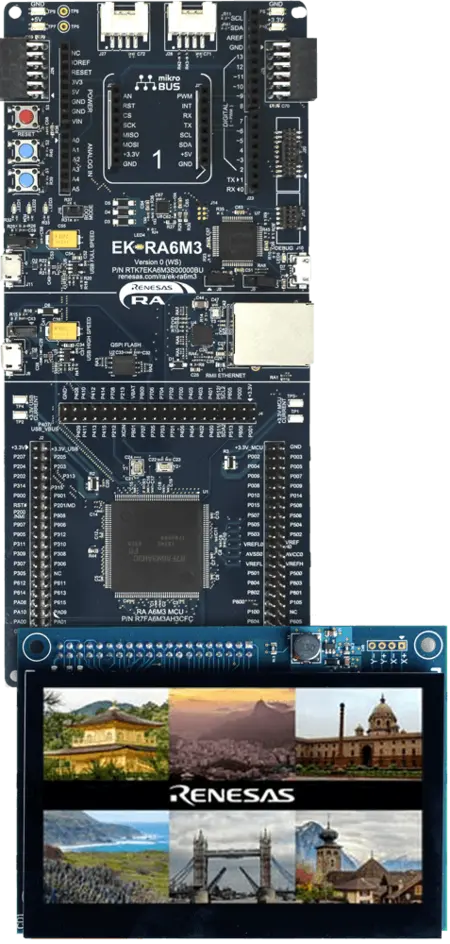

    Renesas EK-RA6M3G

    SEGGER Evaluation Software

    Included components:

    ProductSupported features

    emWin

    BASE + AntiAliasing, Font Converter, Memory Devices, Simulation, TouchScreen

    SEGGER Evaluation Software available upon request

    Other downloads

    Download SEGGER emWin Quick Start example project for EK-RA6M3G for Renesas e2 studio IDE

    SEGGER Notifications

    Subscribe to SEGGER Evaluation Software Notifications

    More information

    Data Sheets

    Renesas EK-RA6M3G

    • Ethernet (RMII and PHY)
    • USB High Speed host and device
    • 32MB External QSPI Flash
    • J-Link OB (on-board) debugger
    • User LEDs and buttons
    • Various expansion connectors
    • Graphics Expansion Board
    • 4.3-inch TFT color LCD
    • 480 x 272 resolution

    Renesas RA6M3

    • 120MHz Arm® Cortex®-M4
    • 1MB - 2MB Flash memory and 640kB SRAM
    • 64kB Data Flash to store data as in EEPROM
    • Scalable from 100-pin to 176-pin packages
    • Ethernet controller with DMA
    • TFT controller/2D accelerator/JPEG decoder
    • Capacitive touch sensing unit
    • USB 2.0 Full Speed/USB High Speed
    • CAN 2.0B
    • SCI (UART, Simple SPI, Simple I2C)
    • SPI/I2C multimaster interface/SDHI
